Edmund Optics 46-248 Concentric Square Target for Optical Alignment — New
A known pattern, which is the only way to check a system honestly
Judging whether an optical system is aligned by looking at an arbitrary sample is guesswork. A target with a precisely known geometry turns it into a measurement: concentric squares make distortion, rotation and decentring visible immediately, because any departure from square is the system's fault rather than the subject's.

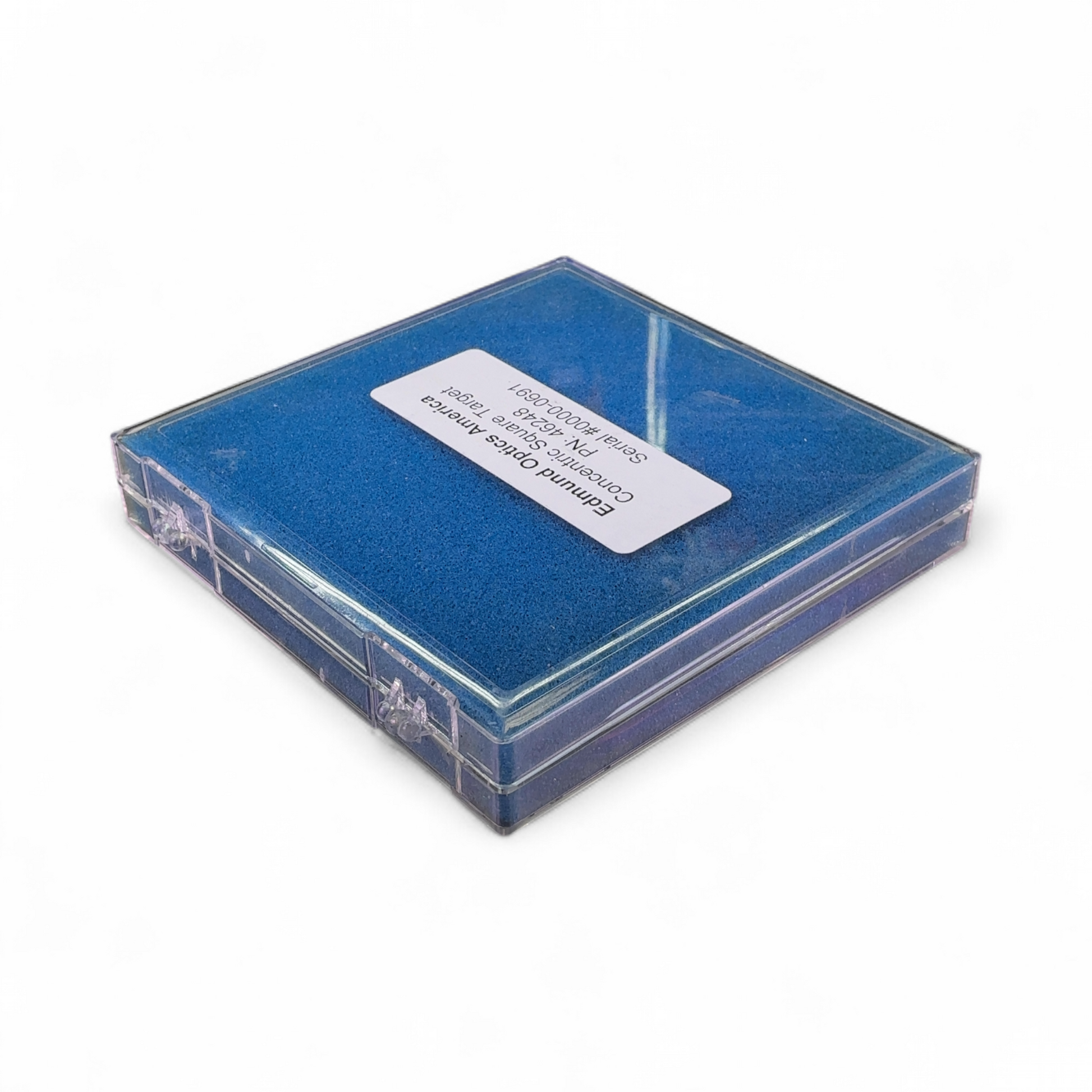

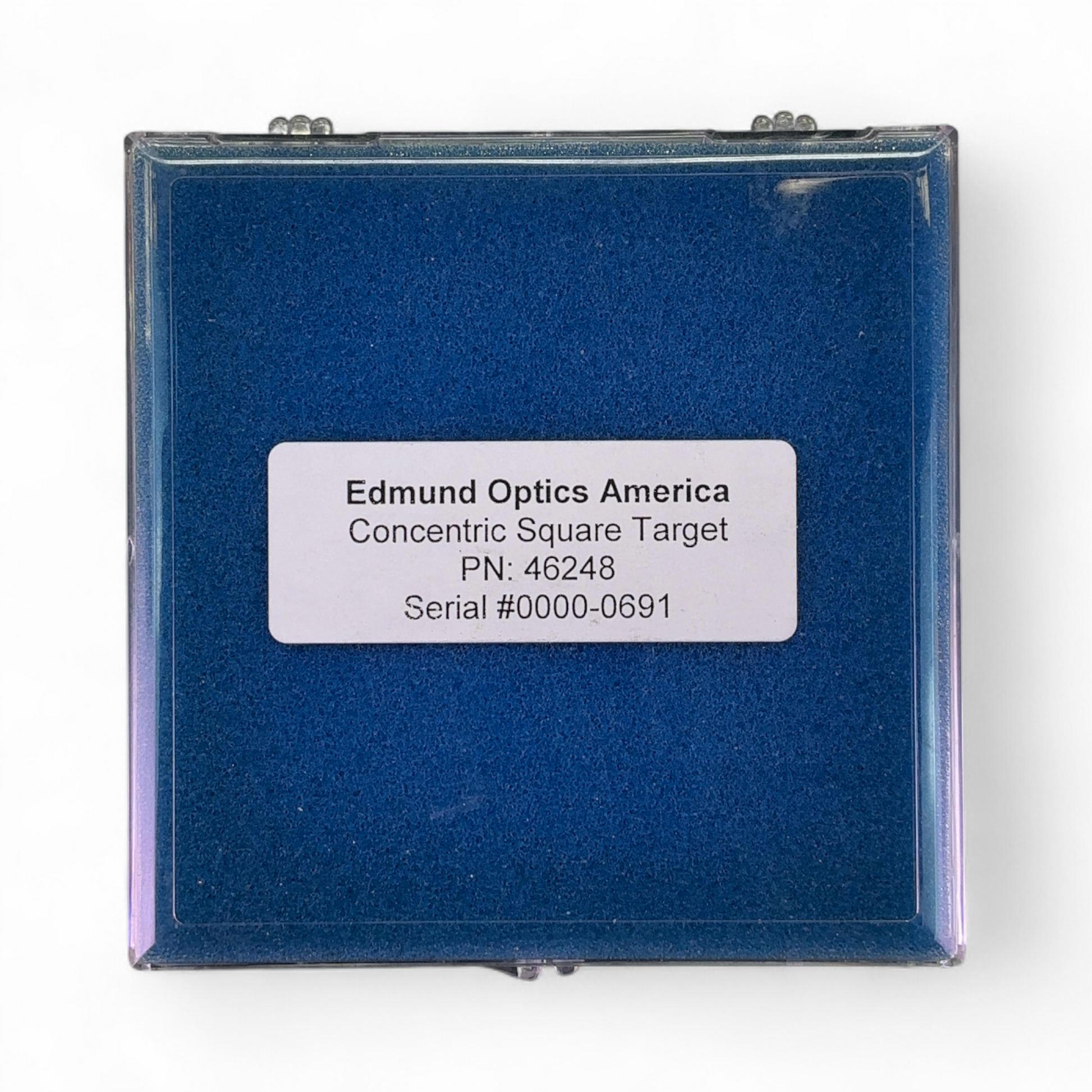

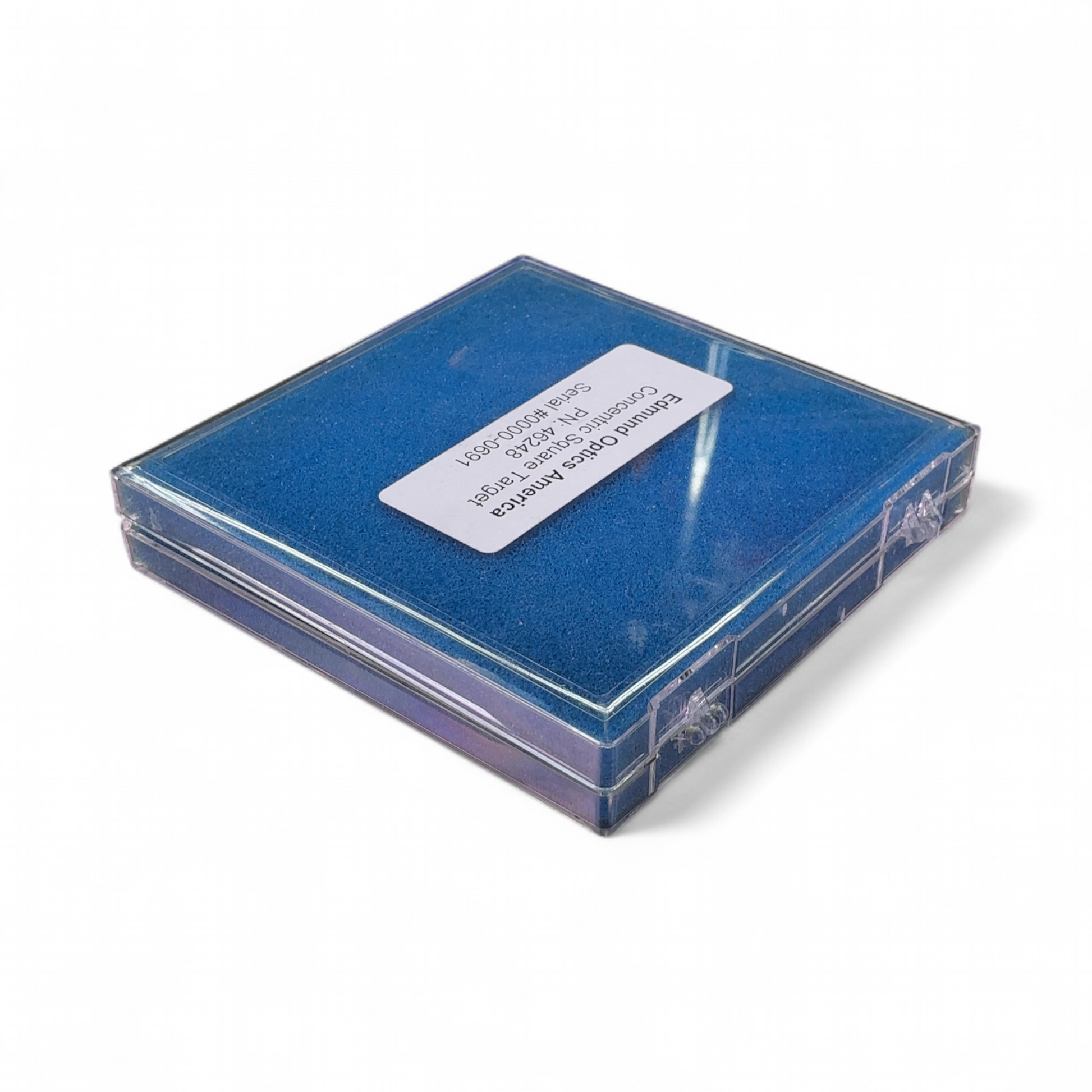

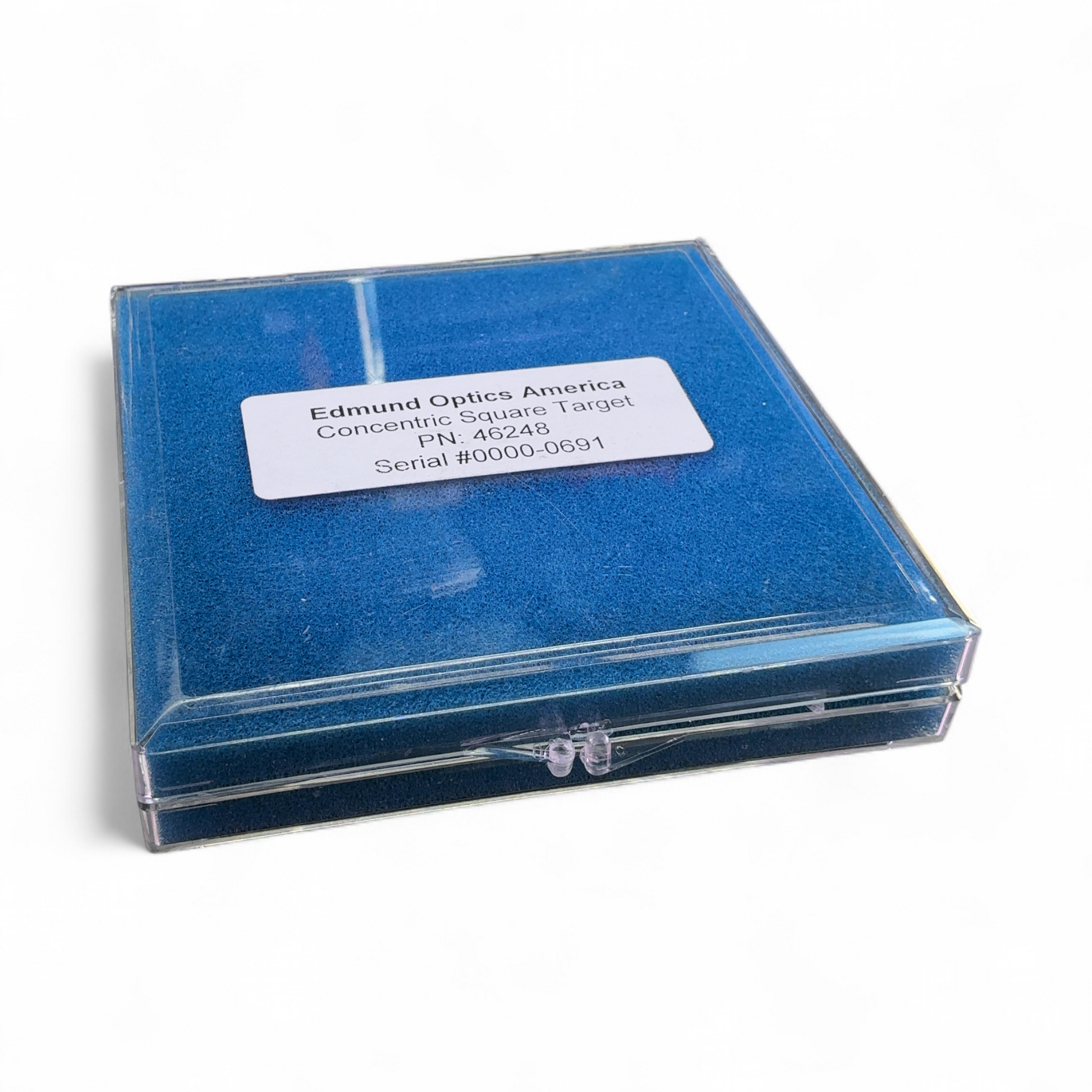

New and unused, stored in its clear plastic case with tissue paper protection.
Where it earns its place
- Checking alignment and centring in an optical train
- Measuring distortion and magnification in an imaging system
- Calibrating machine vision and inspection setups
- Verifying a system after reassembly or transport
Specifications
| Brand | Edmund Optics |
|---|---|
| Model | Concentric square target |
| MPN | 46-248 |
| Country of manufacture | United States |
| Condition class | New |
Condition

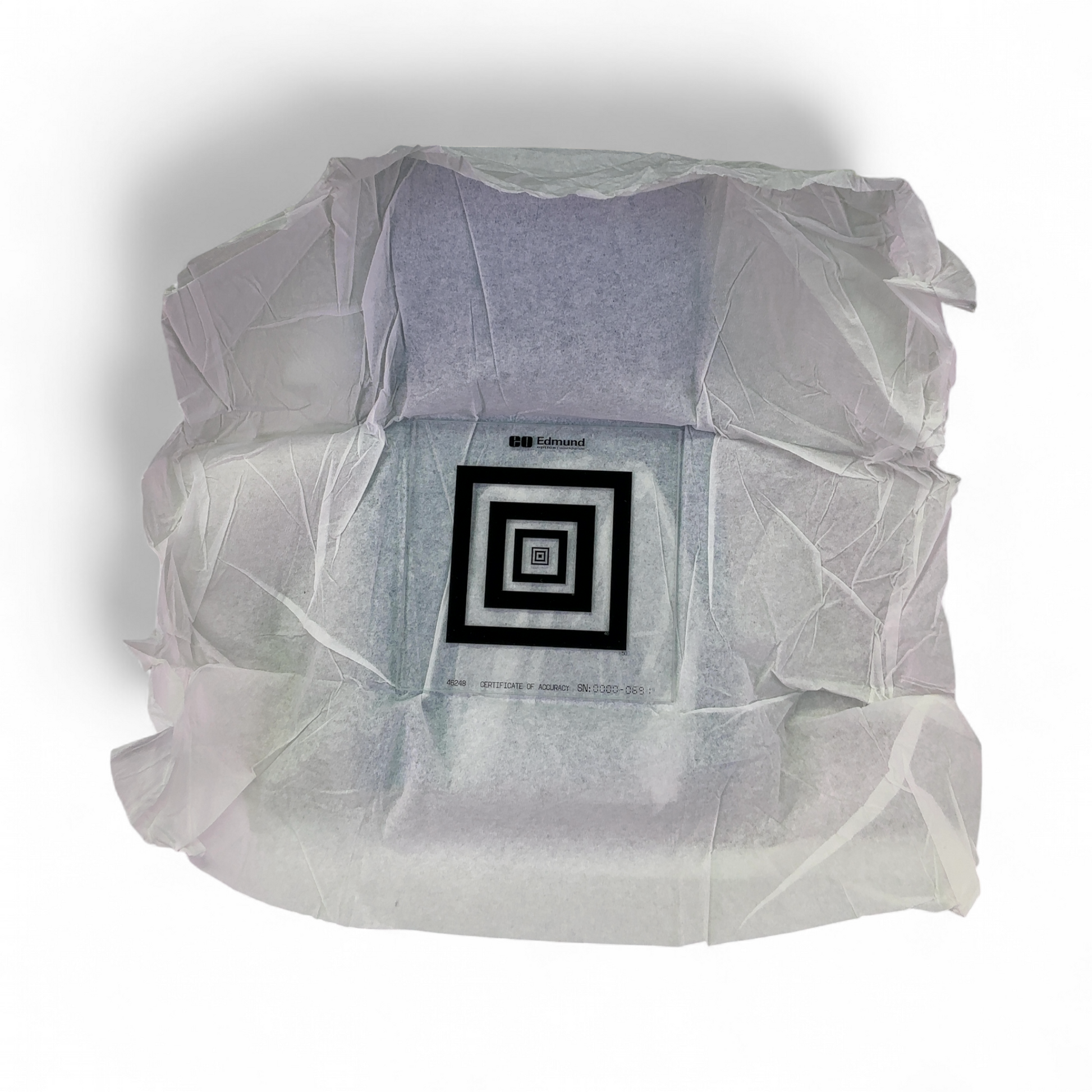

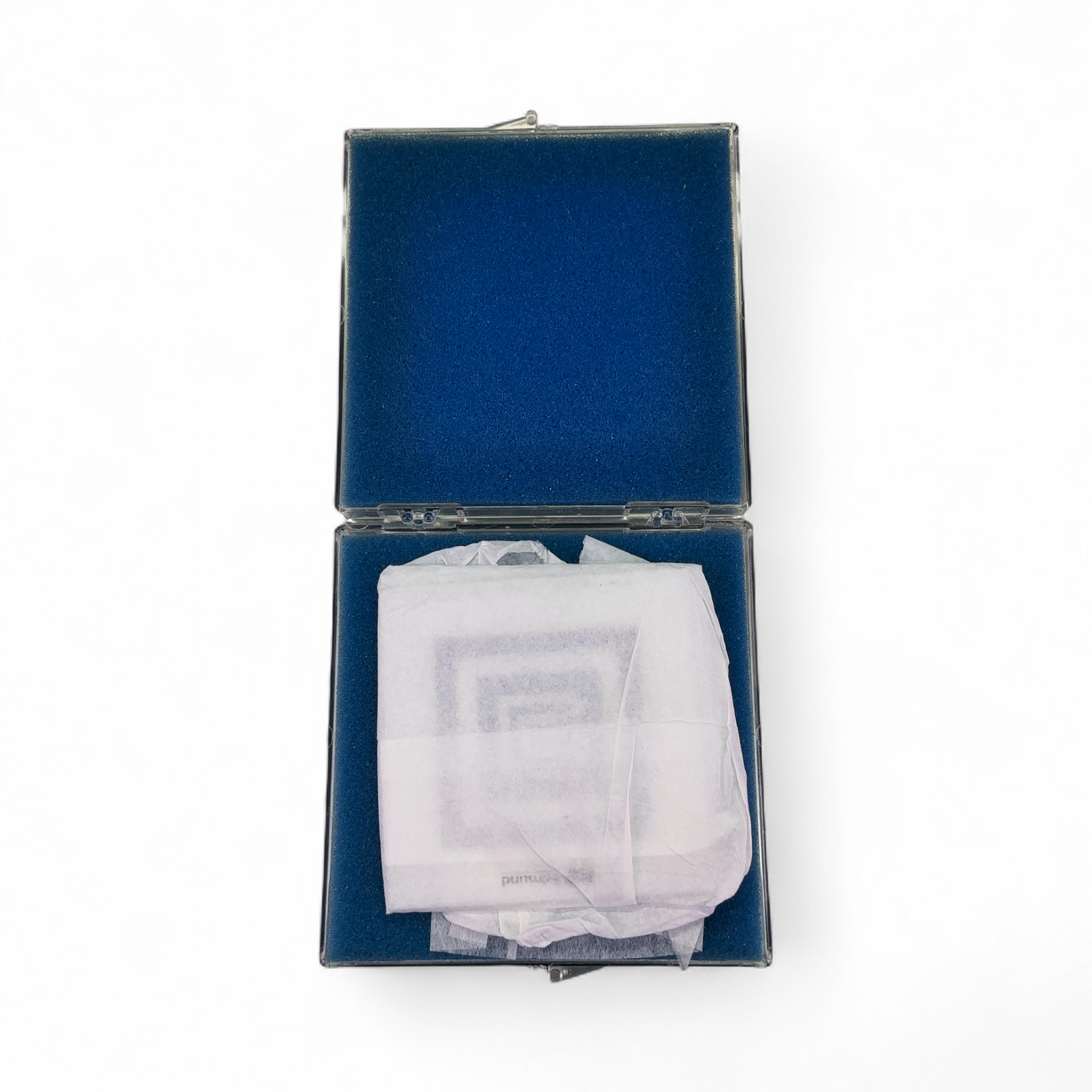

New and unused, stored within its clear plastic case. The case shows minimal shelf wear and handling marks. The target inside is pristine and protected by tissue paper. Photographs show the exact item you receive.
Understanding Item Conditions
- New: Unused equipment.
- Used: Previously owned equipment, tested for functionality.
- Refurbished: Previously owned equipment that has undergone restoration or servicing.
