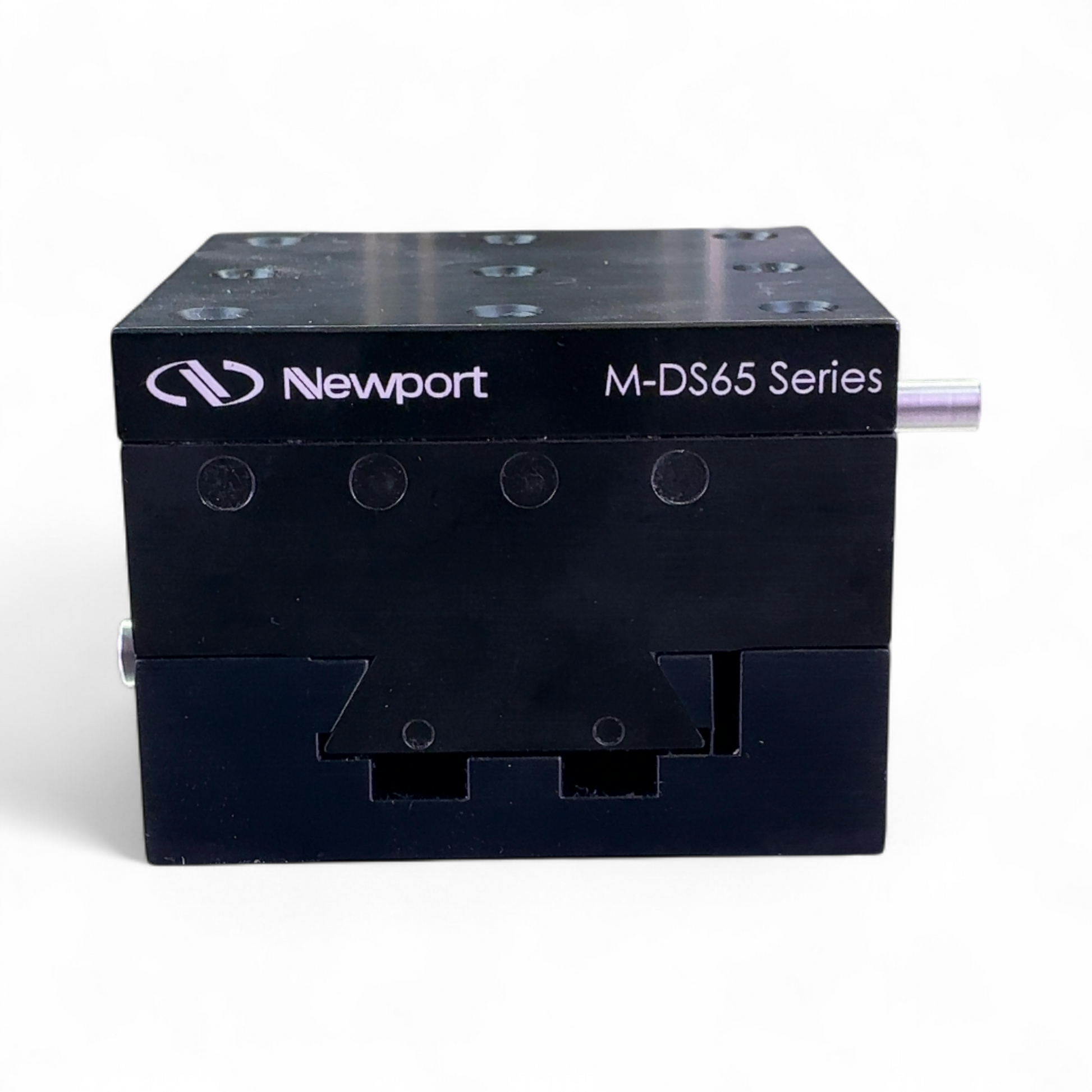

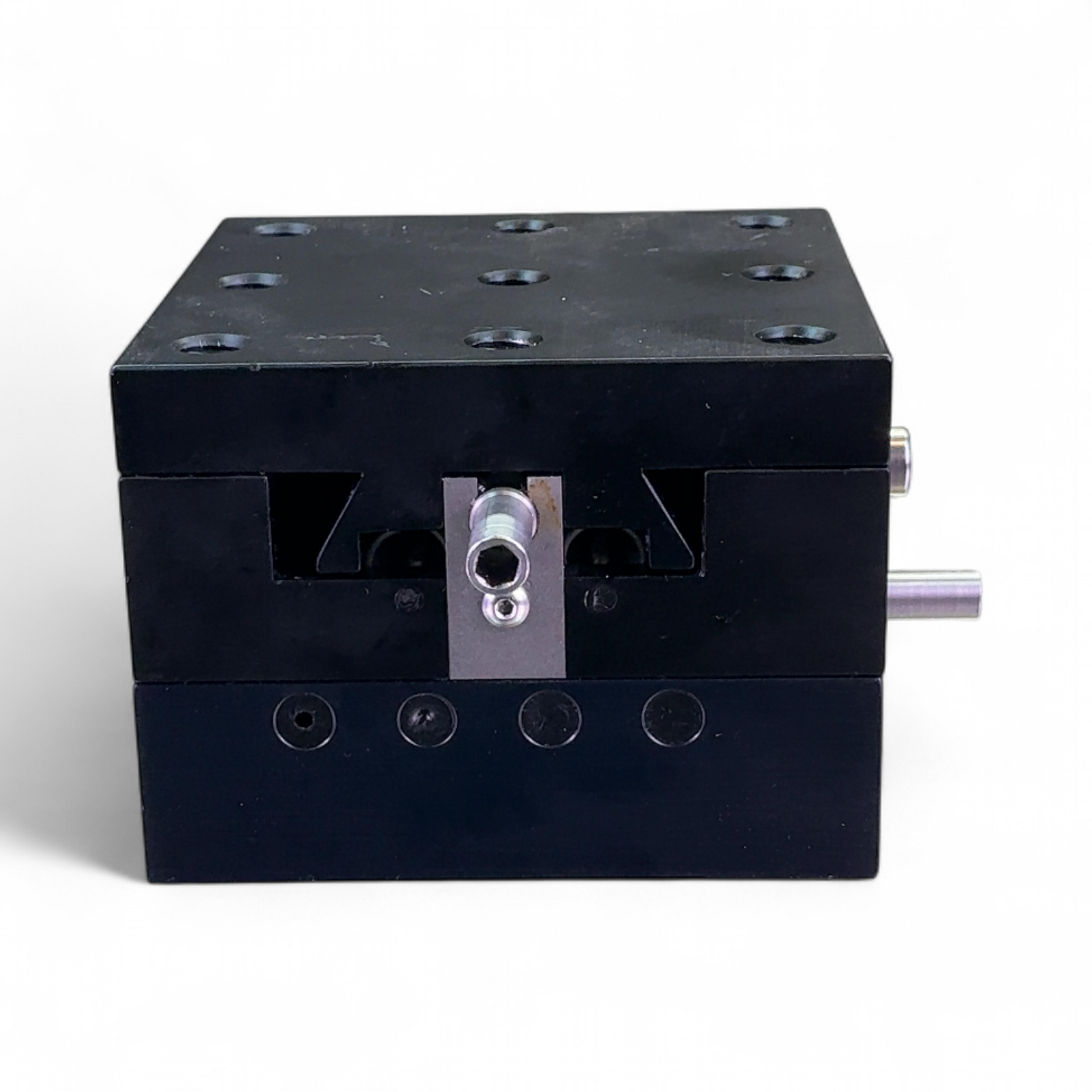

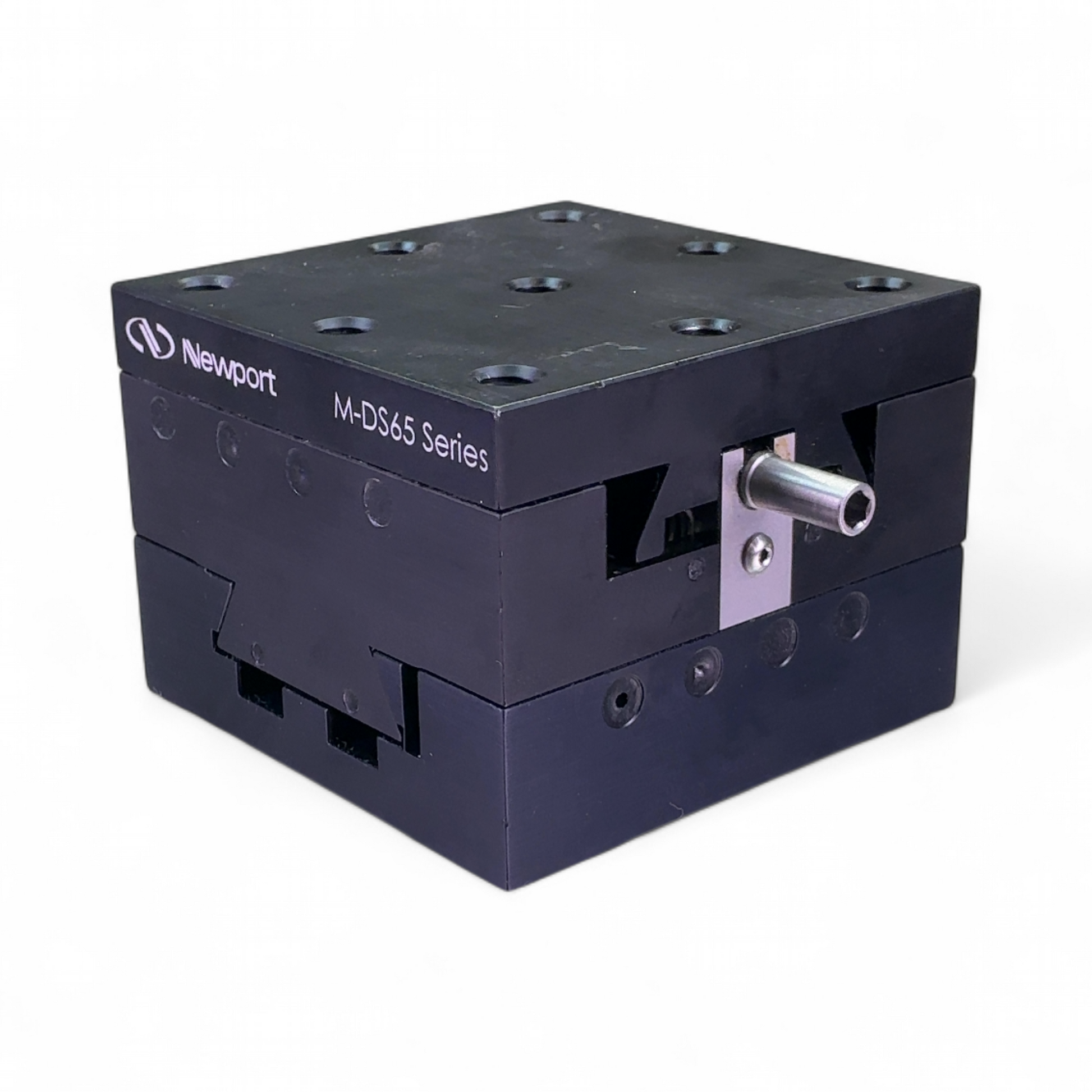

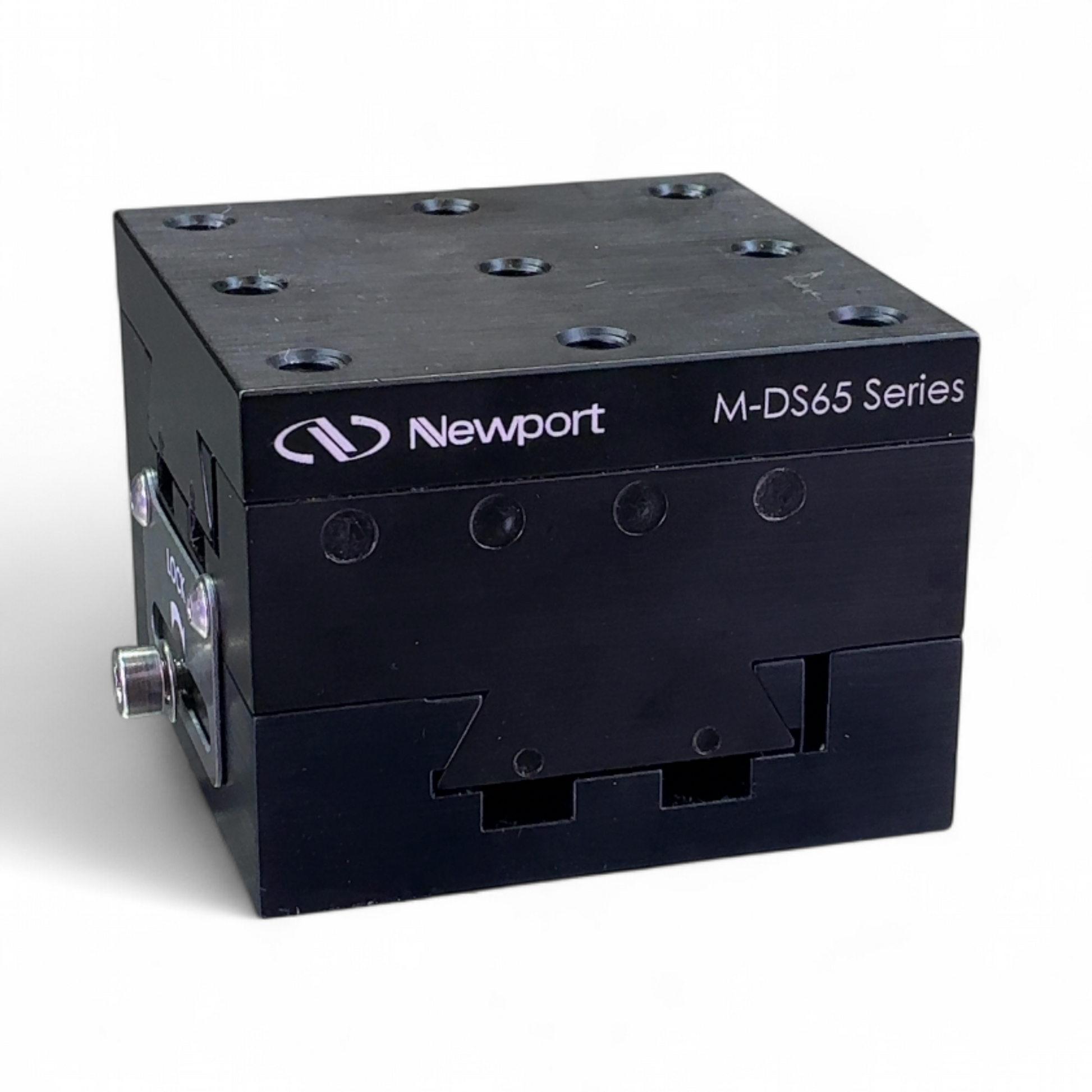

Newport M-DS65-XY Compact Dovetail XY Linear Stage, 25 mm Travel
Two axes in 48 mm of height
Stacking two single-axis stages to get XY motion doubles the height and puts the upper stage's load on the lower one's bearings at an offset. An integrated XY stage avoids both problems, and at 48 mm tall this one keeps the optical axis close to the breadboard where it belongs.
Dovetail bearings give the load capacity and the locking stability that this class of positioning needs. Twenty-five millimetres of travel on each axis, M6 mounting.
Where it earns its place
- Sample and optic positioning where beam height must stay low
- Compact optical setups with limited vertical clearance
- Detector and camera alignment across two axes
- General laboratory positioning under moderate load
Specifications
| Brand | Newport |
|---|---|
| Model | XY linear stage, compact, dovetail |
| MPN | M-DS65-XY |
| Travel | 25 mm |
| Dimensions | 65 x 65 x 48 mm |
| Mounting thread | M6 |
| Design | Dovetail |
| Axes | XY |
Condition

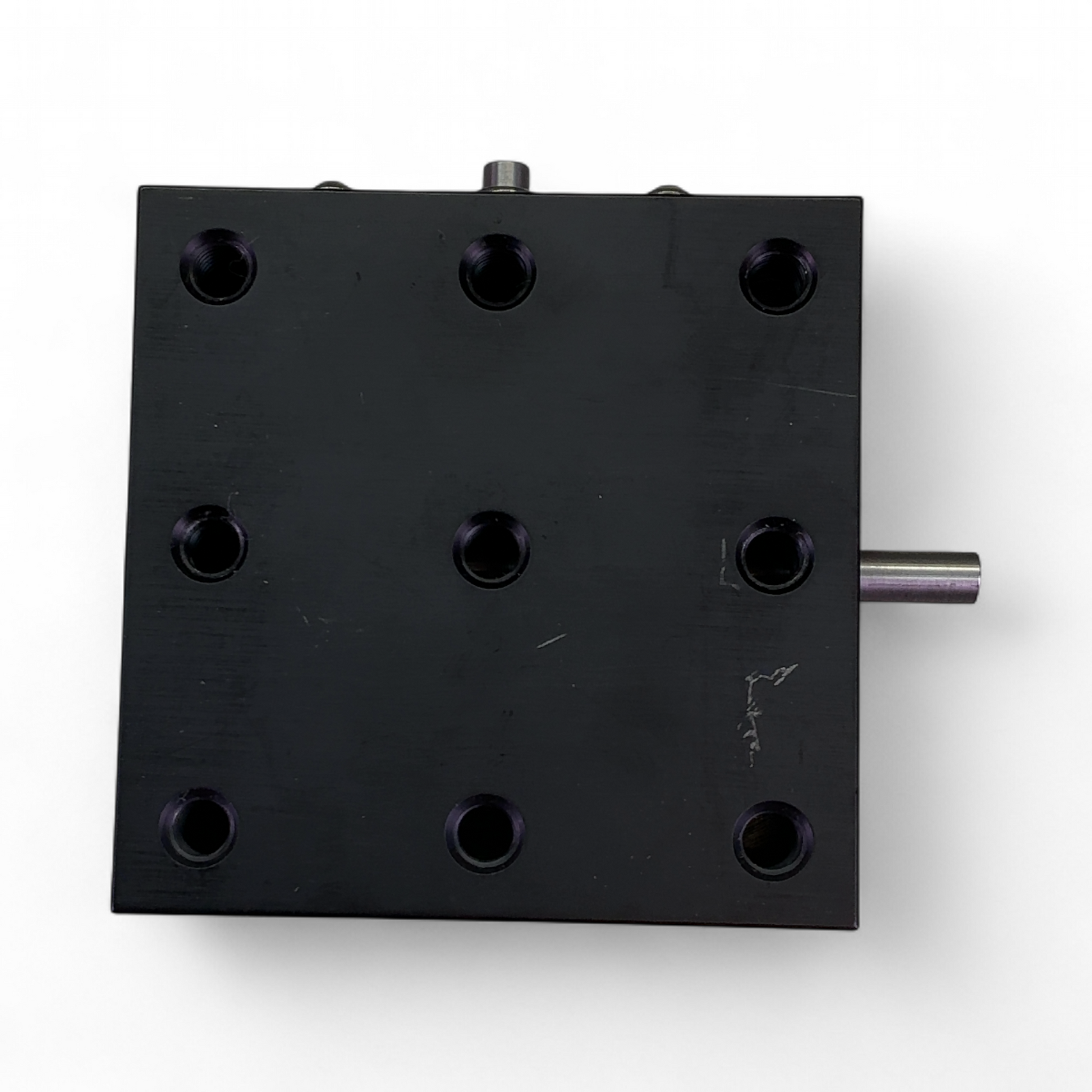

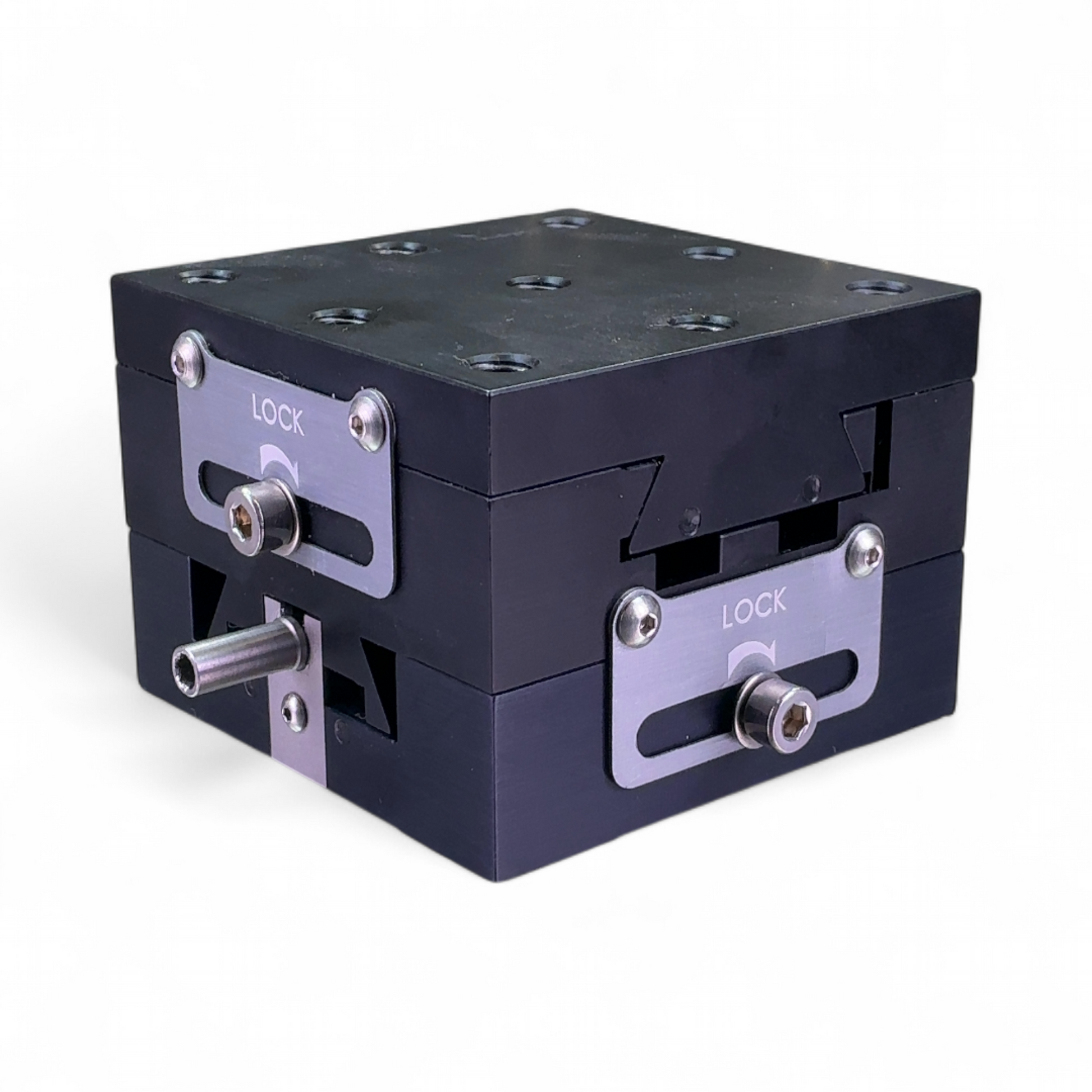

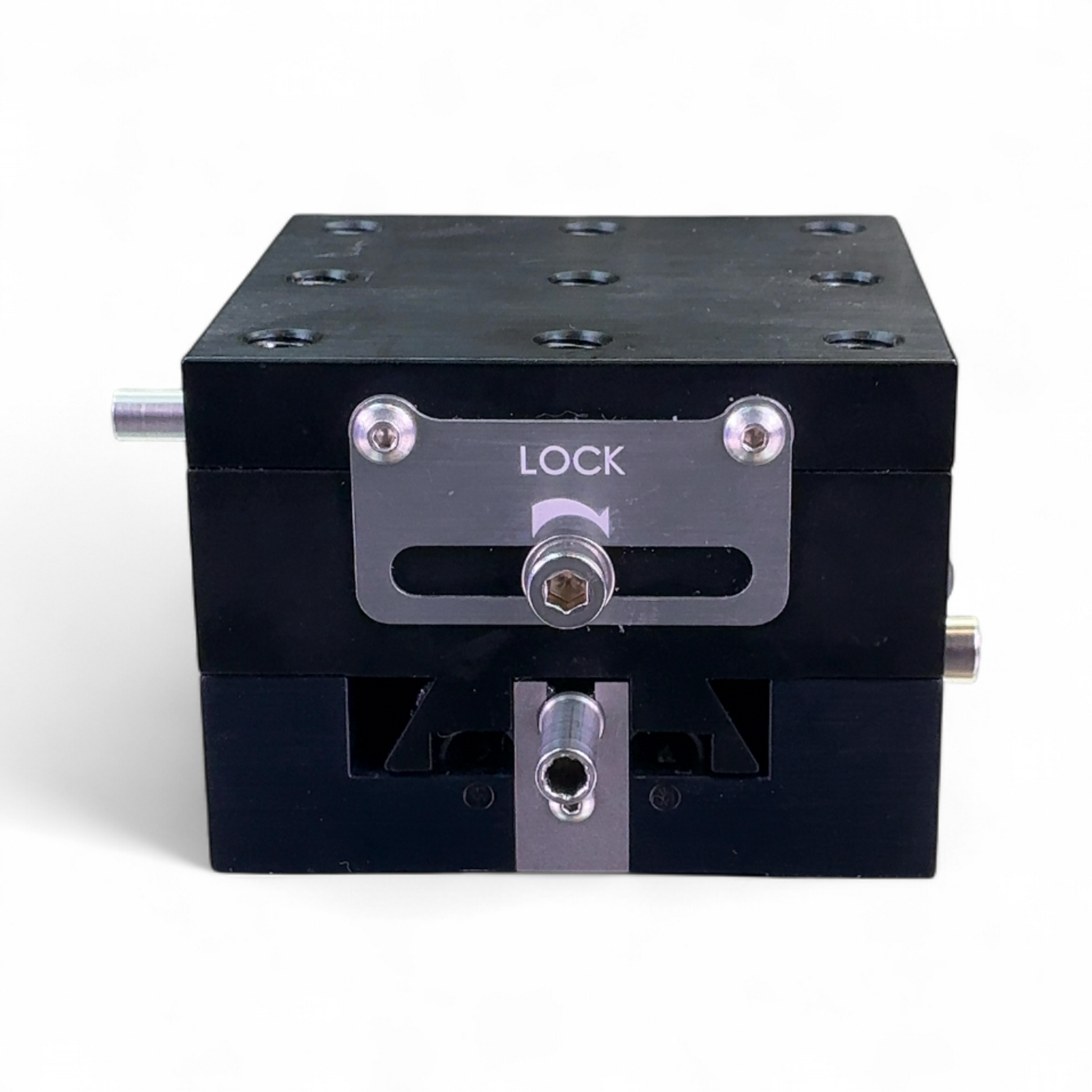

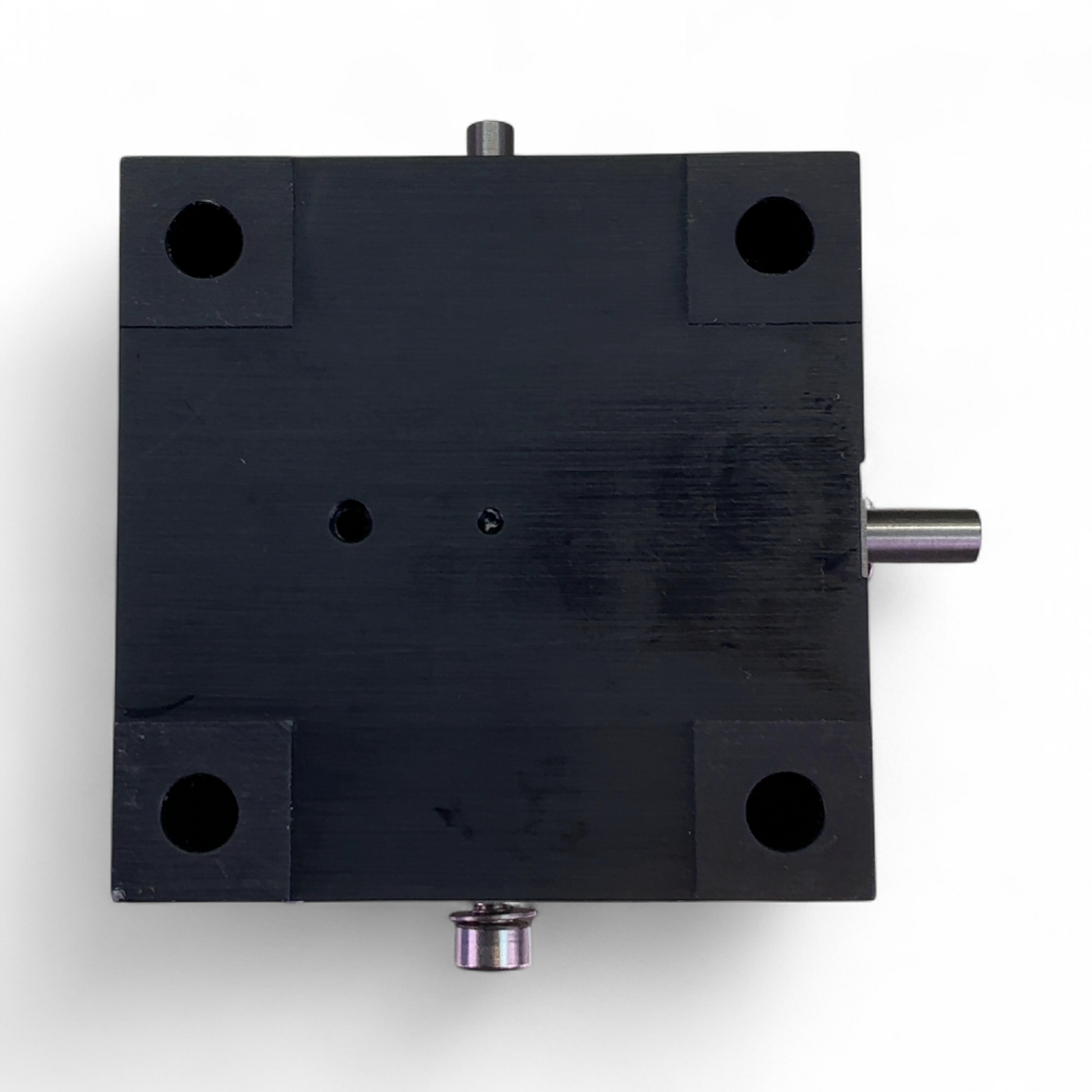

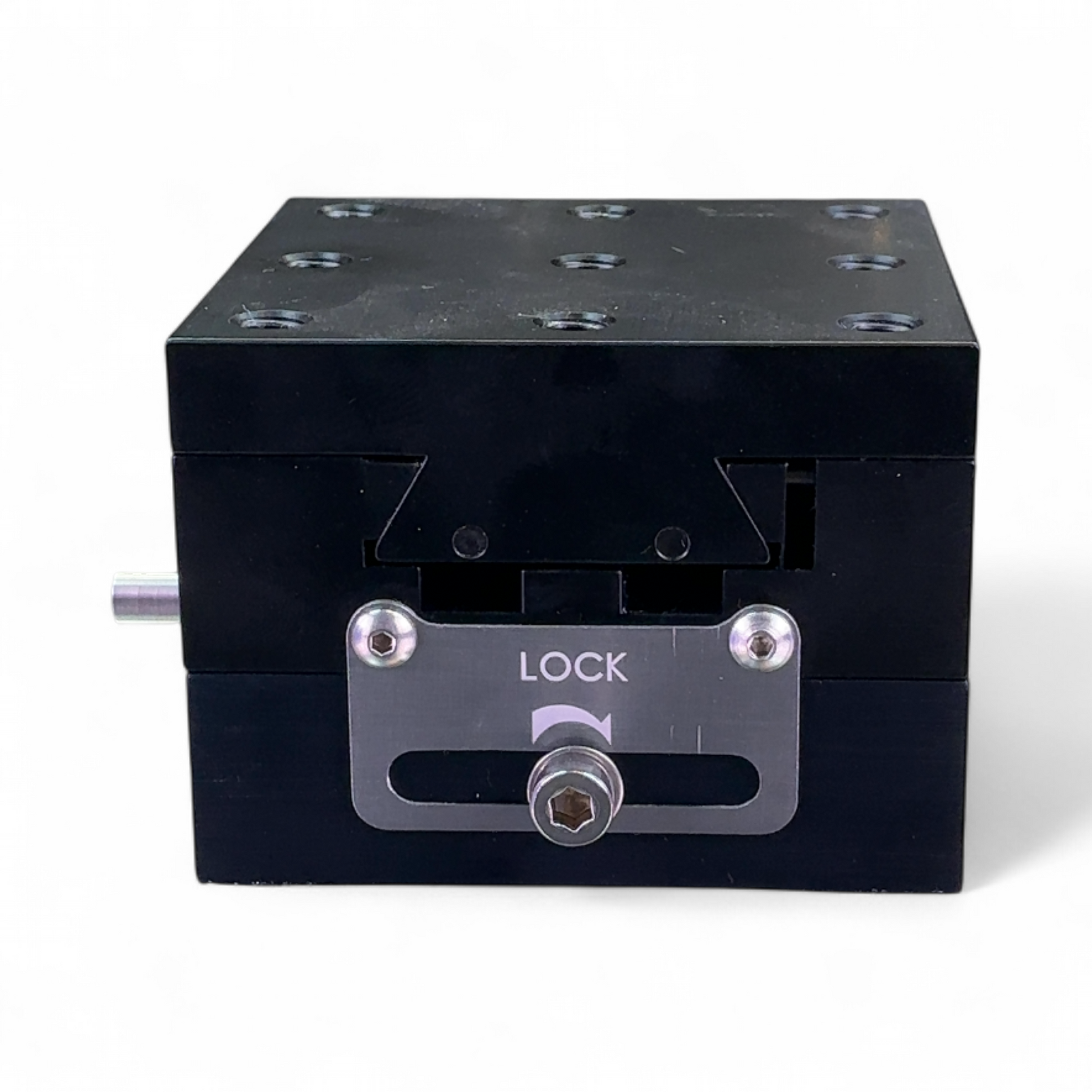

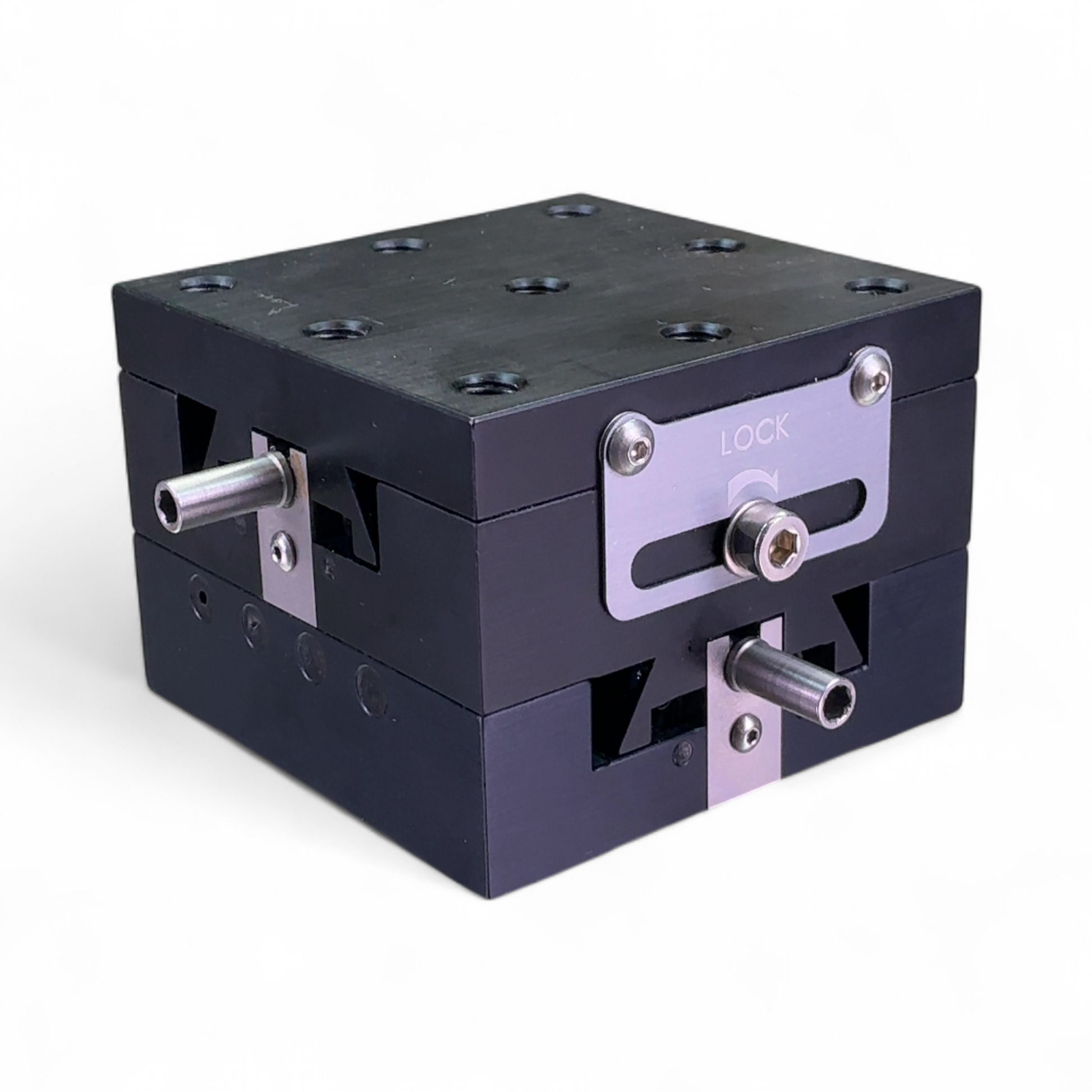

Minor wear with light scuffs and small scratches on the black anodized surface. All controls and locking mechanisms are intact. The unit came from a functional environment. Photographs show the exact item you receive.
Understanding Item Conditions
- New: Unused equipment.
- Used: Previously owned equipment, tested for functionality.
- Refurbished: Previously owned equipment that has undergone restoration or servicing.
Newport M-DS65-XY Compact Dovetail XY Linear Stage, 25 mm Travel is backordered and will ship as soon as it is back in stock.
