Newport ULTRAlign Manual Linear Stage, 13 mm Travel, Crossed-Roller, M-461-X-M
Crossed rollers, which is why the motion stays straight
Ball bearings touch a raceway at a point; crossed rollers touch along a line. The result is markedly better stiffness and far less angular deviation as the carriage travels, and for optical alignment that deviation is exactly what you are trying to eliminate. A stage that walks off-axis by a few microradians over its travel turns a fibre coupling task into a fight.

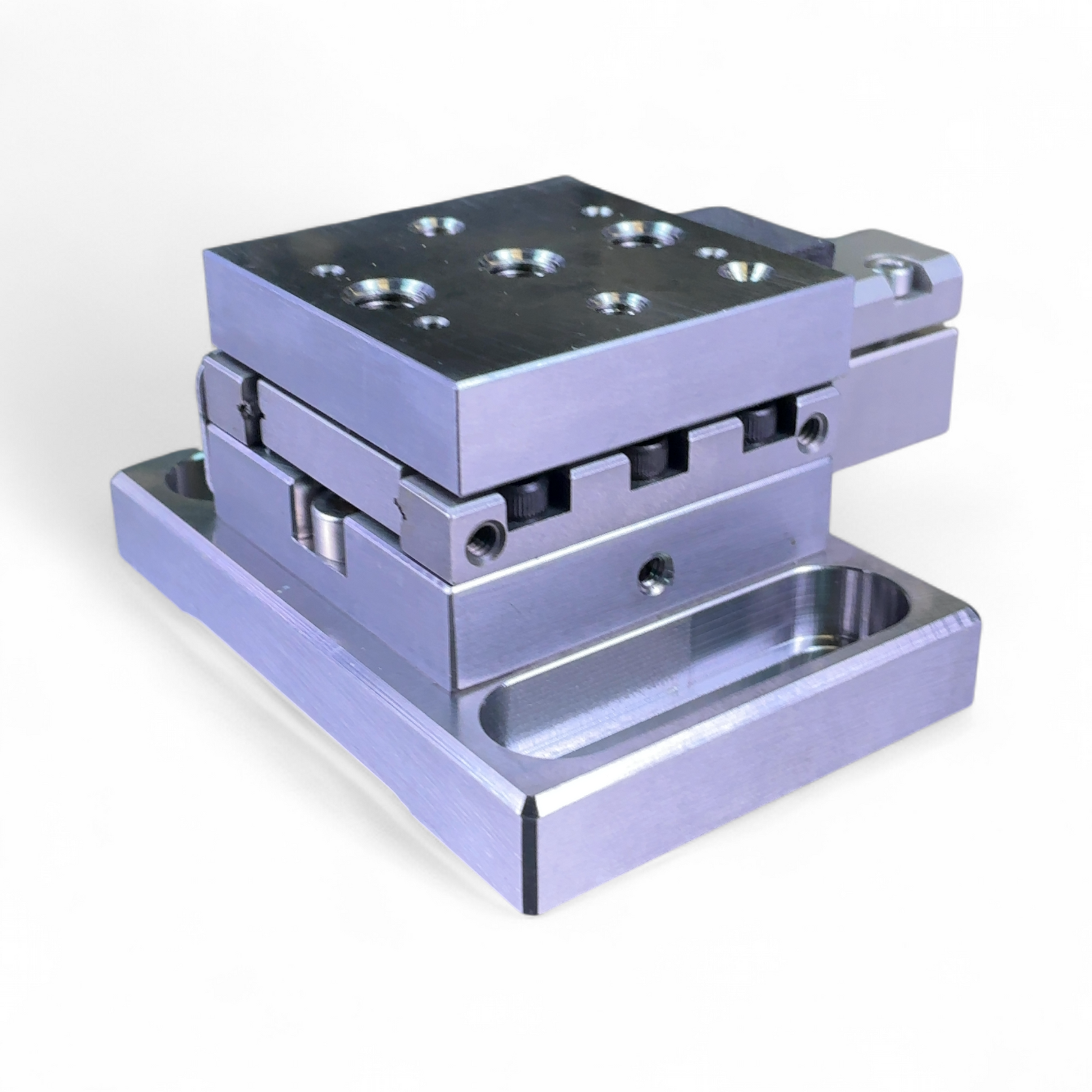

This ULTRAlign is new and unused, 13 mm of travel with M4 and M6 mounting.
Where it earns its place
- Fibre and waveguide coupling where angular deviation costs power
- Optical alignment on a bench needing high stiffness
- Building a multi-axis stack from known-good single axes
- Replacing a worn stage whose bearings have developed play
Specifications
| Brand | Newport |
|---|---|
| Model | ULTRAlign manual linear stage |
| MPN | M-461-X-M |
| Travel | 13 mm |
| Bearing type | Crossed-roller |
| Mounting | M4, M6 |
| Condition class | New, unused |
Condition

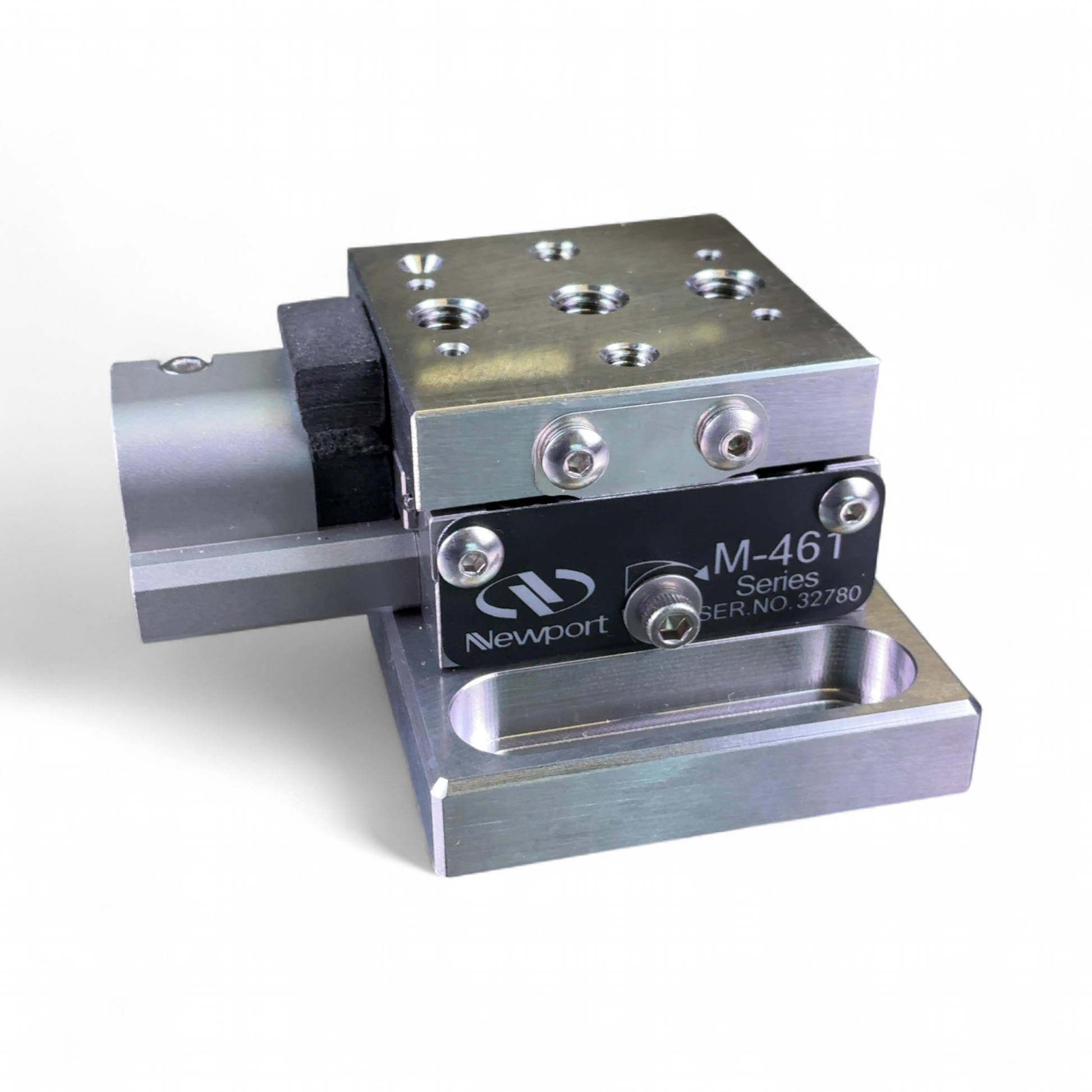

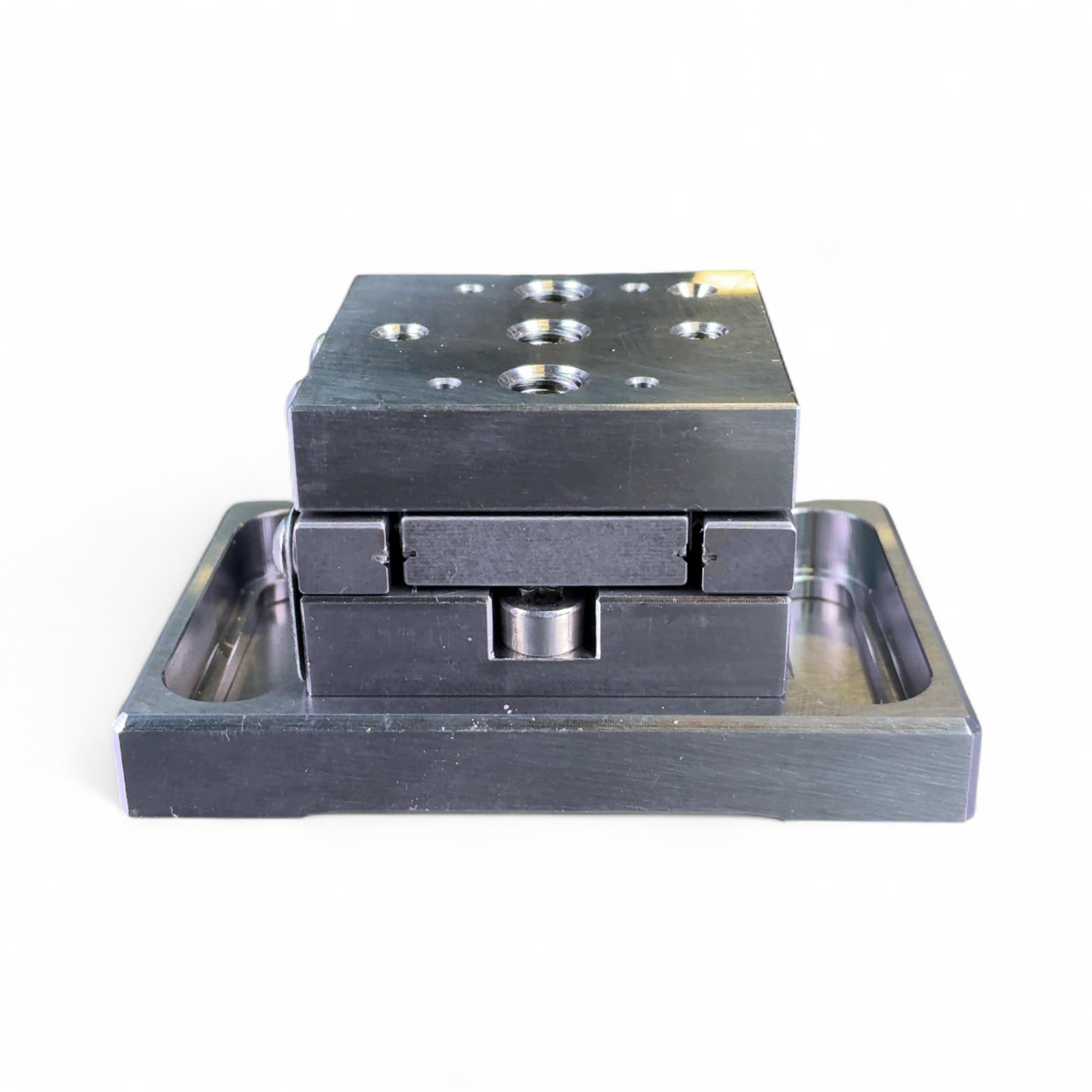

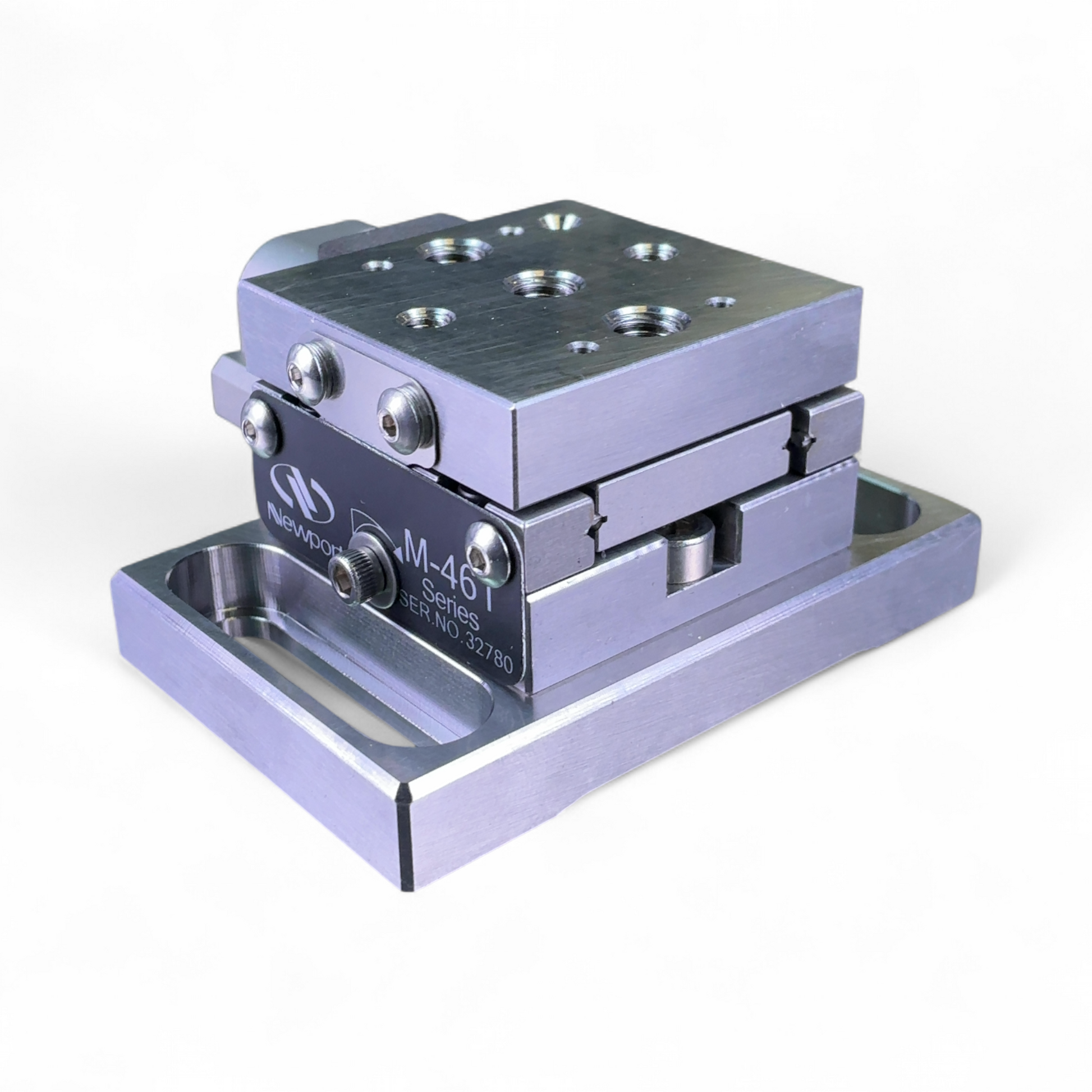

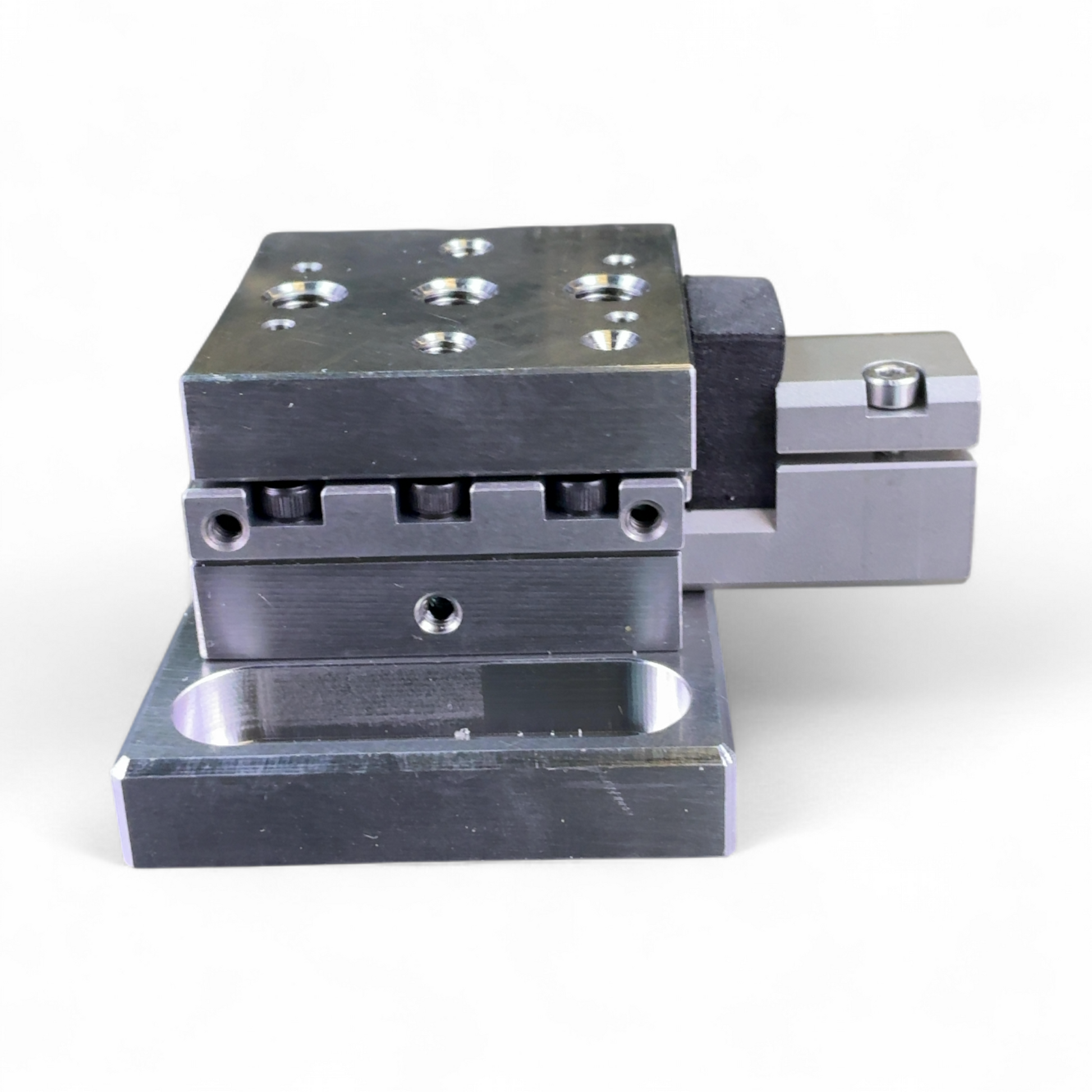

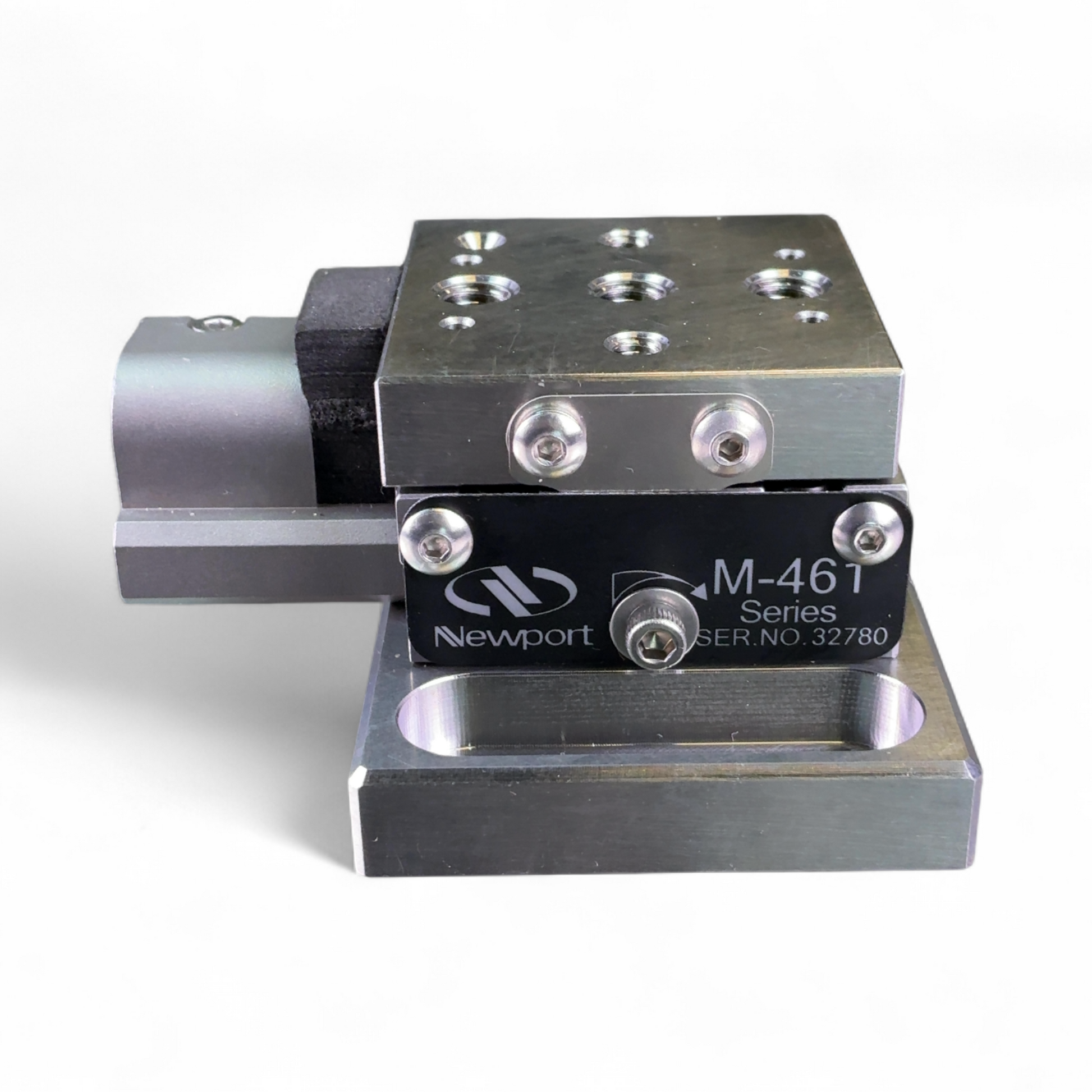

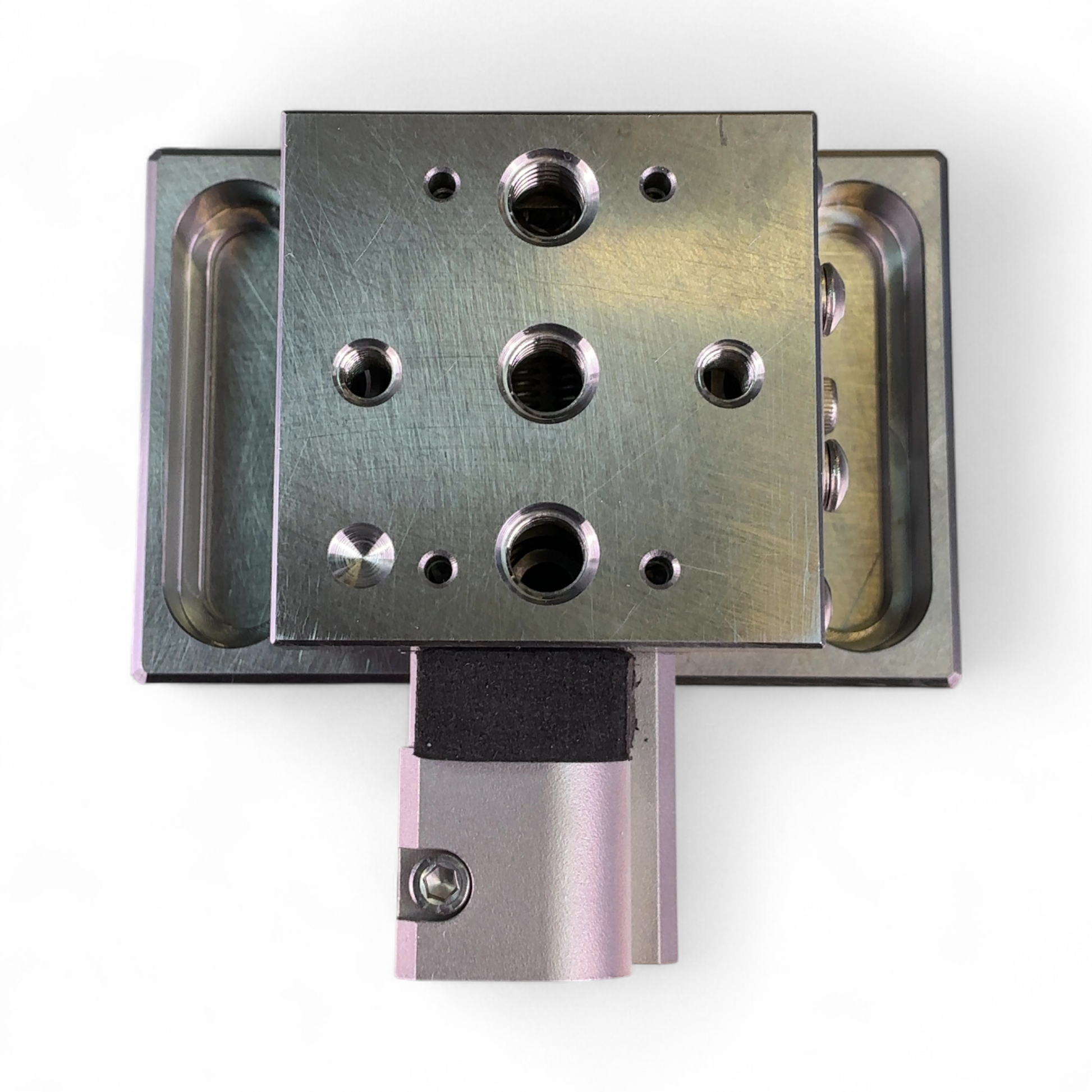

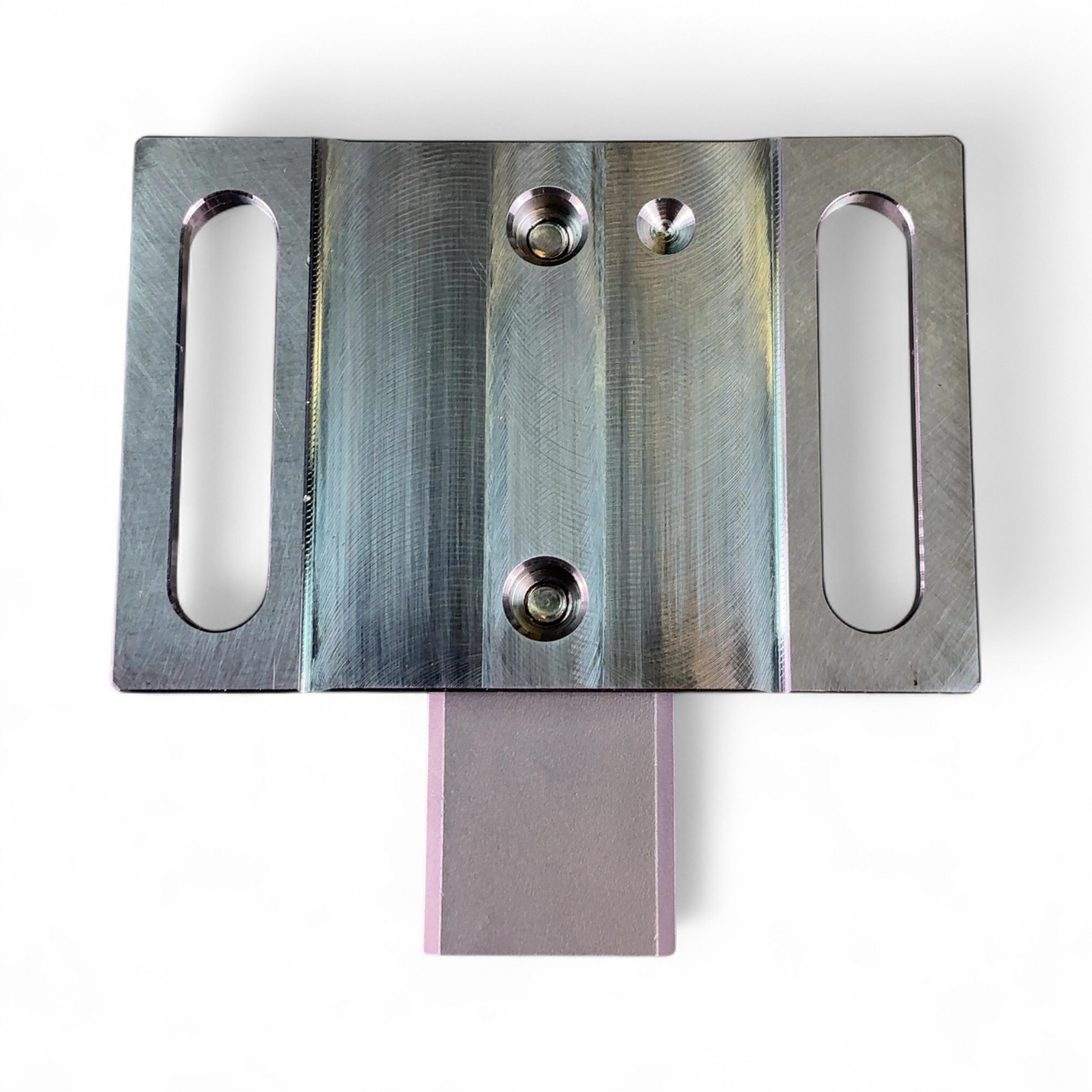

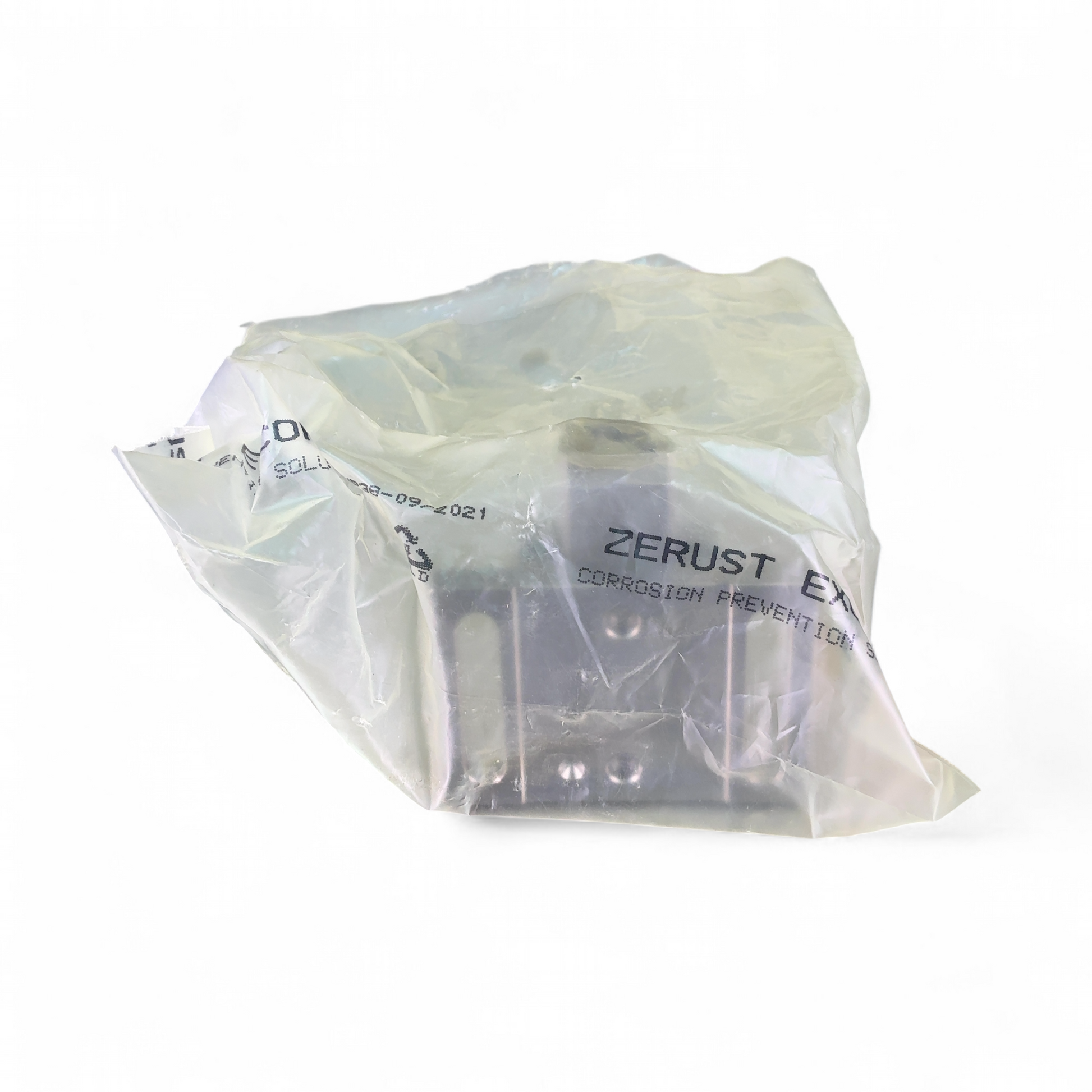

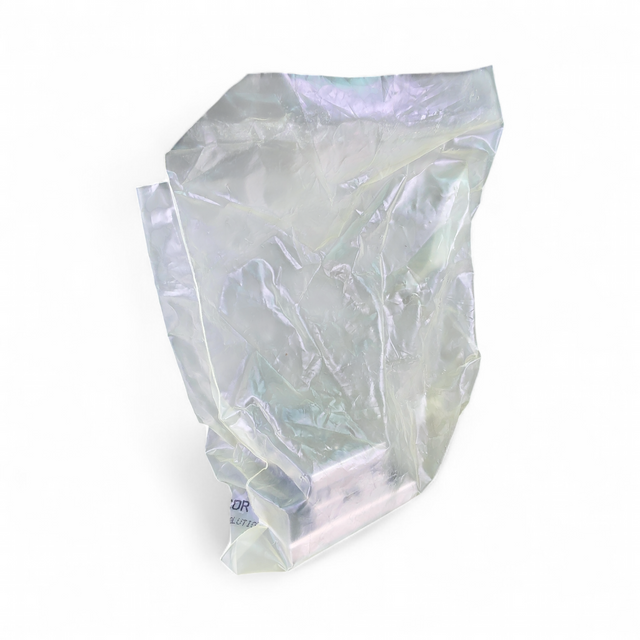

New and unused. The clear plastic packaging shows minor creasing and some handling marks. Photographs show the exact item you receive.
