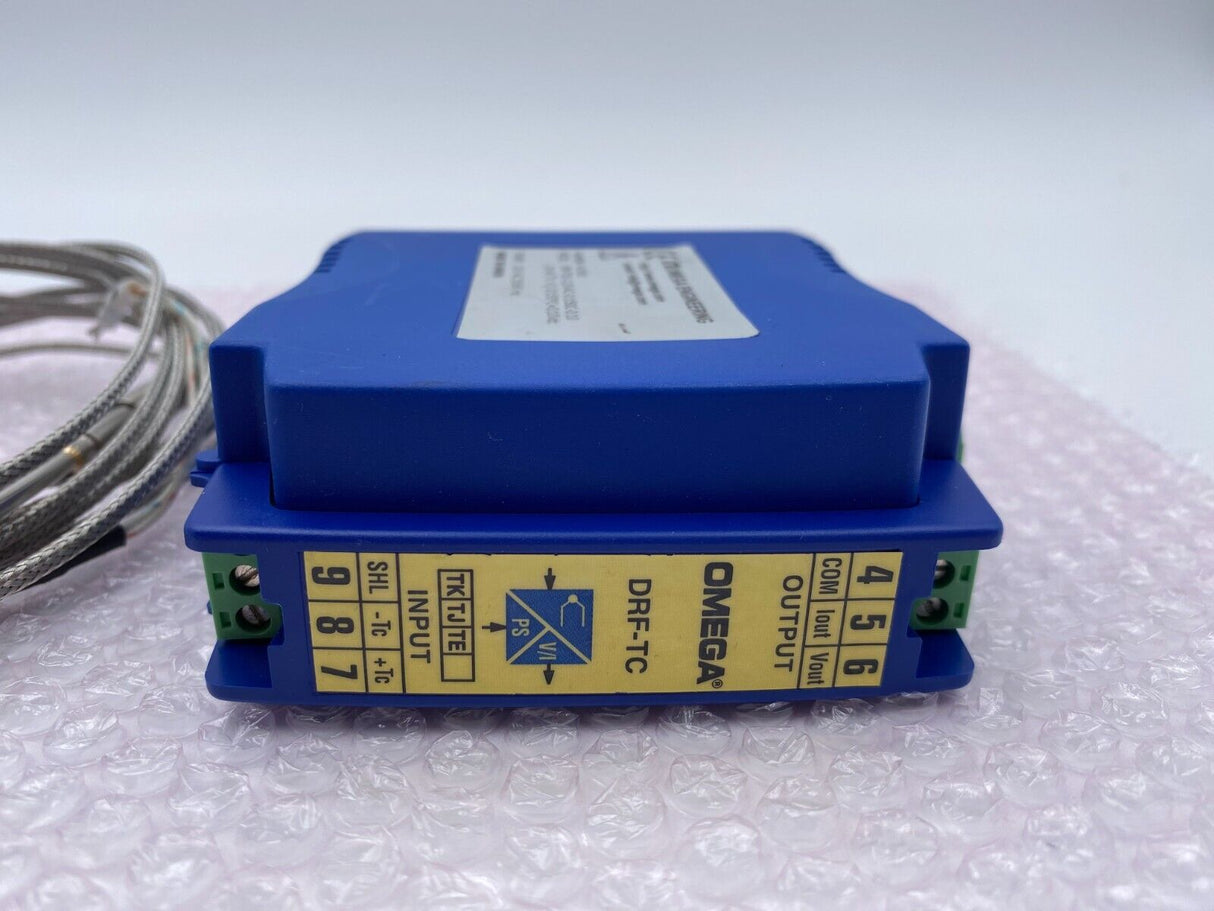

Omega DRF-TCK-115VAC-0-150C-0/10 K Type Input Signal Conditioner With Probe
-

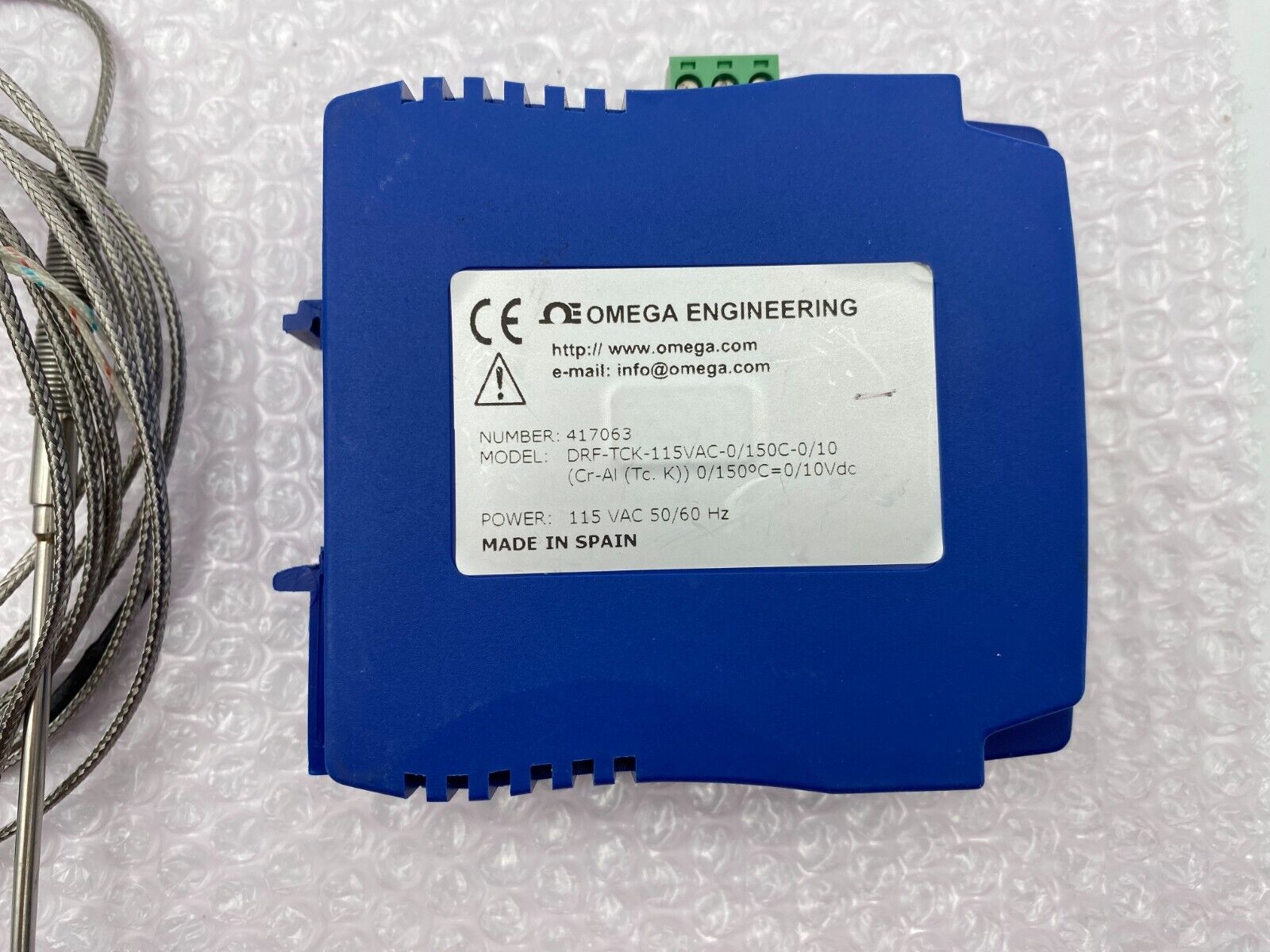

The Omega DRF-TCK-115VAC-0/150C-0/10 is a DIN rail-mounted thermocouple signal conditioner designed to convert thermocouple inputs into standardized process outputs. This model is configured for Type K thermocouples, operates on a 115 VAC power supply, and is calibrated for a temperature range of 0 to 150°C, providing a 0 to 10 VDC output.
Key Features:
Input Compatibility: Accepts inputs from various thermocouple types, with this specific model tailored for Type K thermocouples.
Output Signal: Delivers a linearized and isolated 0 to 10 VDC output, suitable for integration with standard process control systems.
Power Supply: Designed to operate with a 115 VAC ±10% 50/60 Hz power source.
Temperature Range: Factory-calibrated for a 0 to 150°C measurement range, aligning the thermocouple input to the corresponding voltage output.
Accuracy and Linearity: Offers an accuracy of less than 0.3% full scale and linearity of less than 0.2% full scale, ensuring precise signal conditioning.
Response Time: Features a response time of less than 250 milliseconds to reach 90% of the signal, facilitating prompt signal processing.
Galvanic Isolation: Provides galvanic isolation between input, output, and power up to 3500 Veff, enhancing safety and signal integrity.

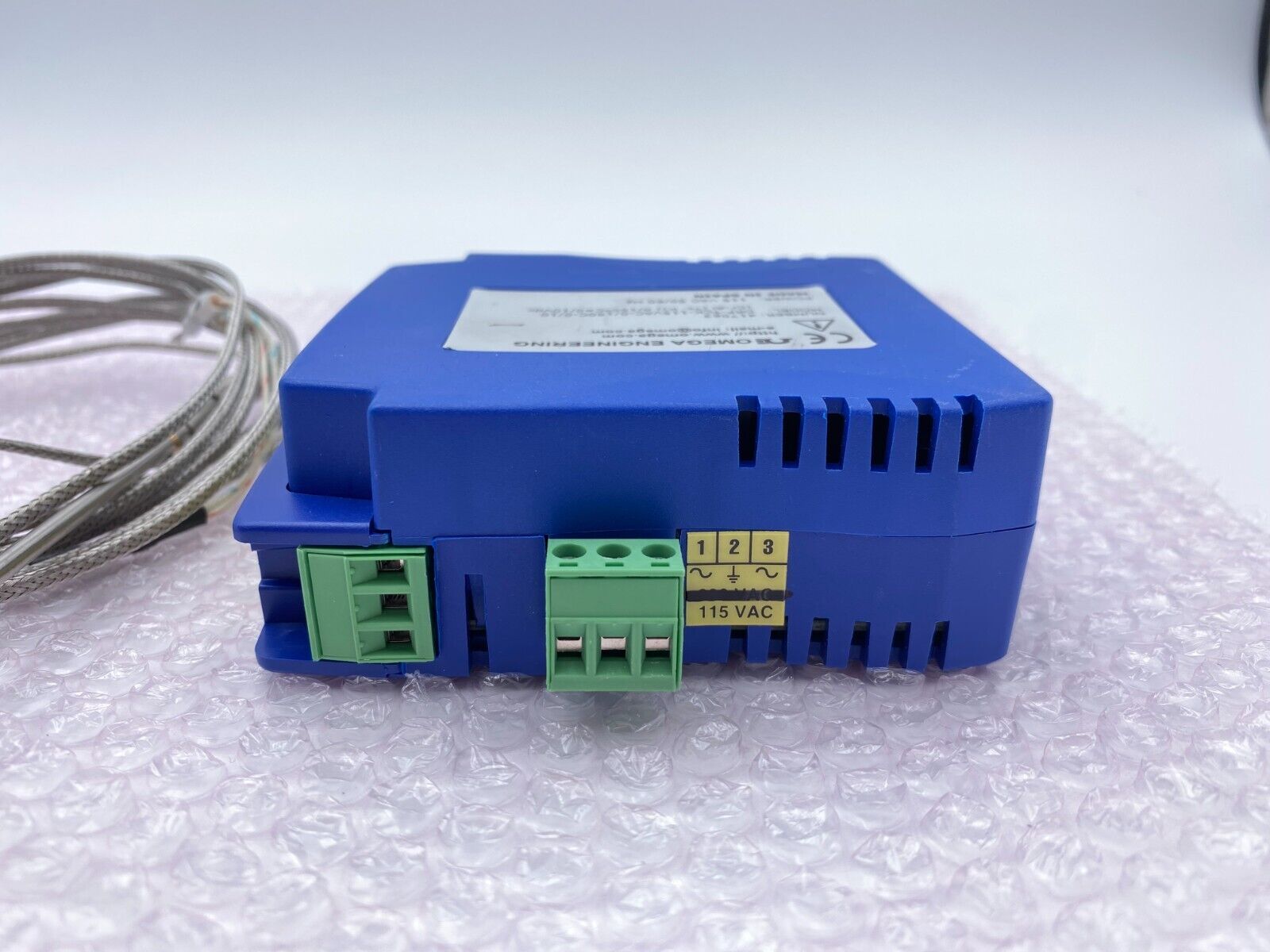

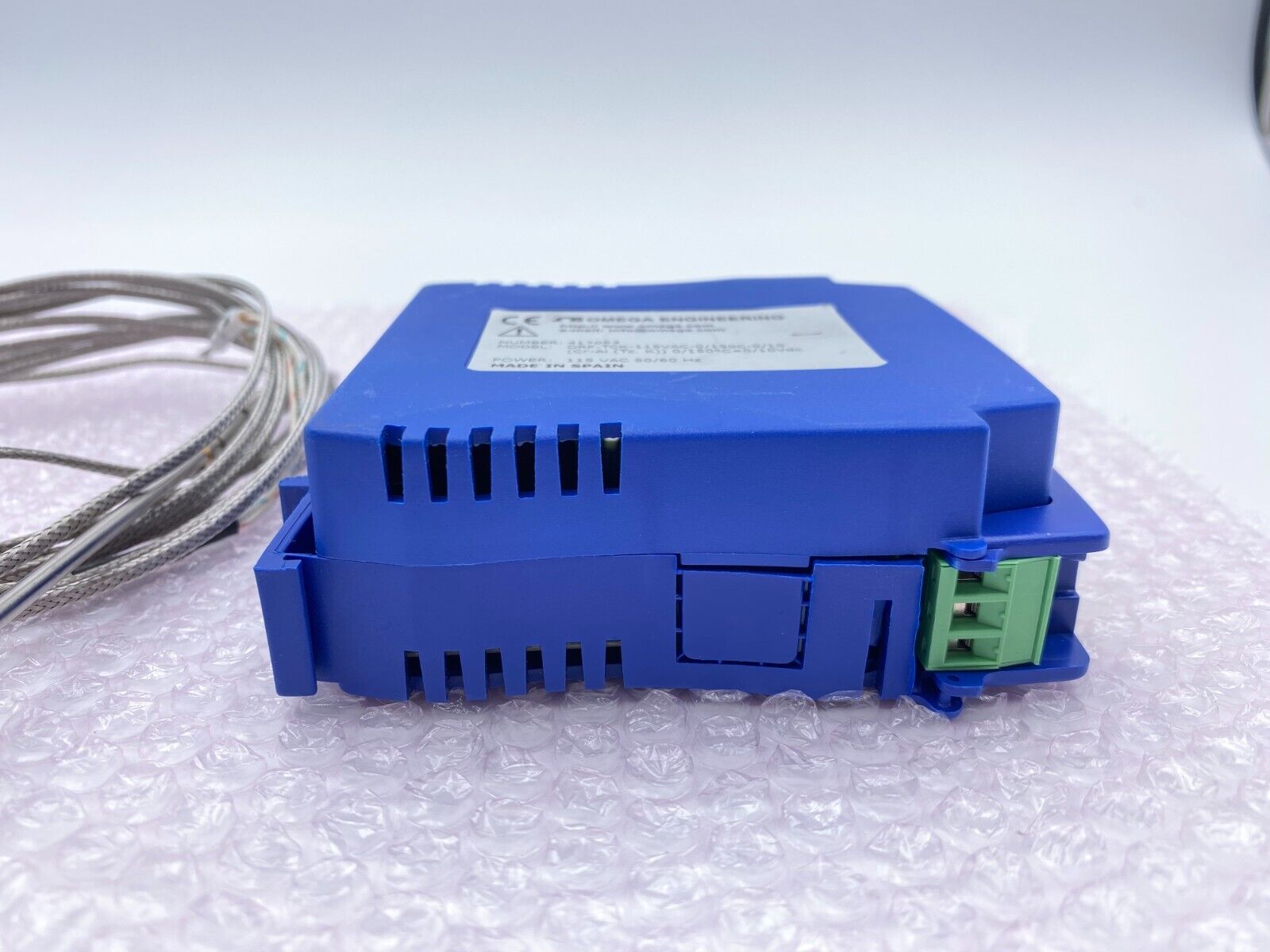

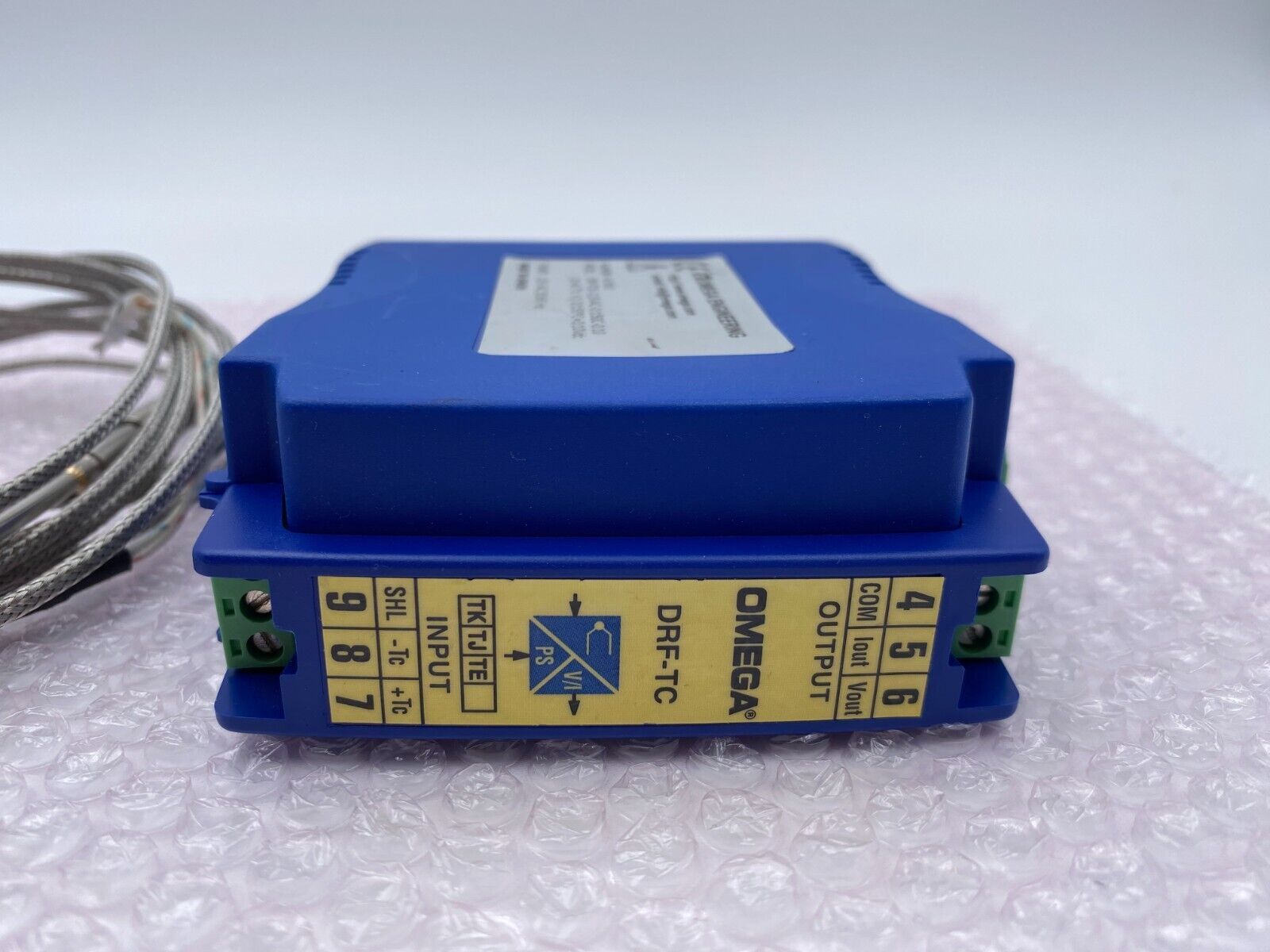

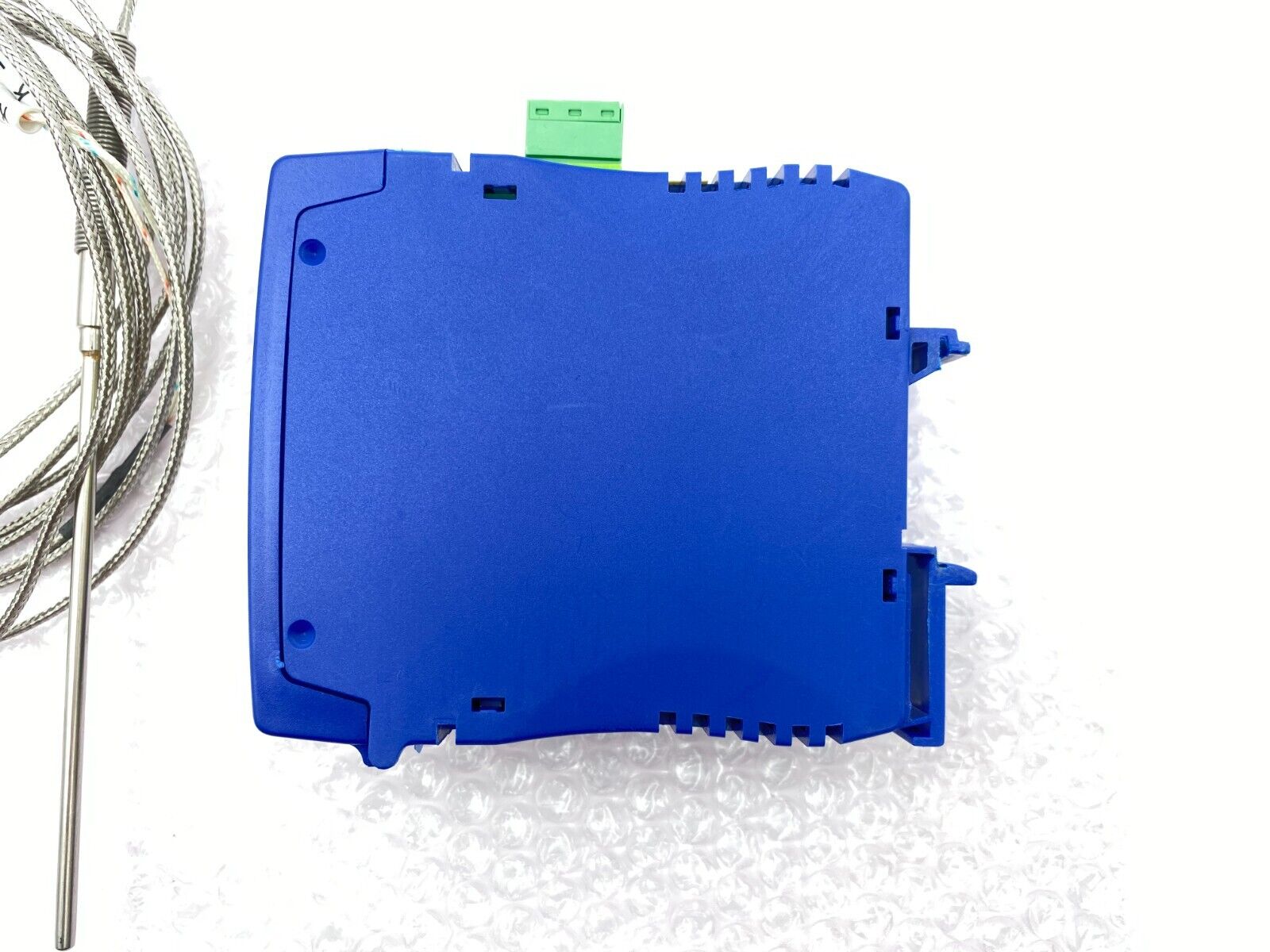

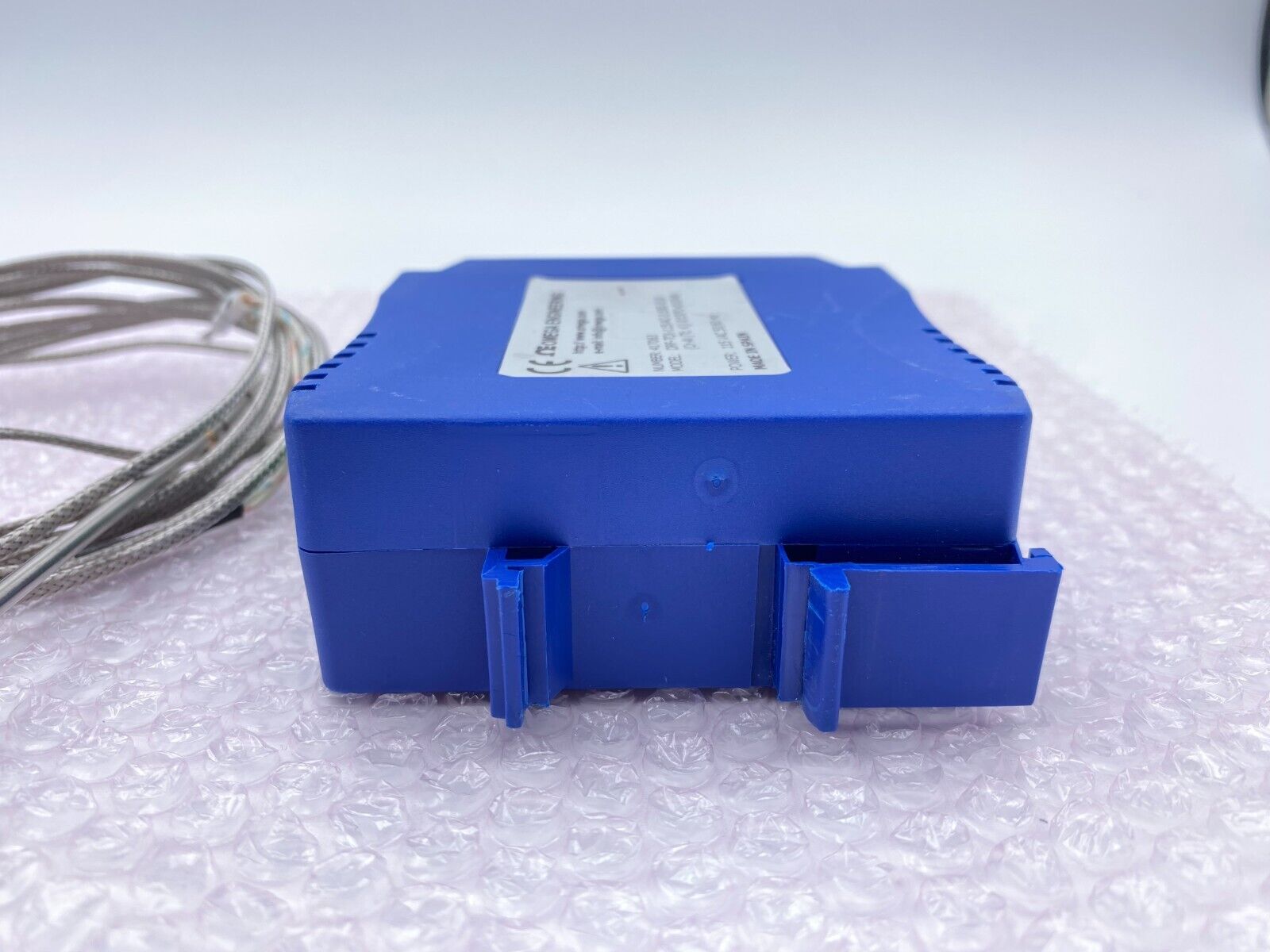

Mounting and Connections: Designed for easy installation on standard 35 mm DIN rails, with secure connections via pluggable screw terminal connectors.
Condition

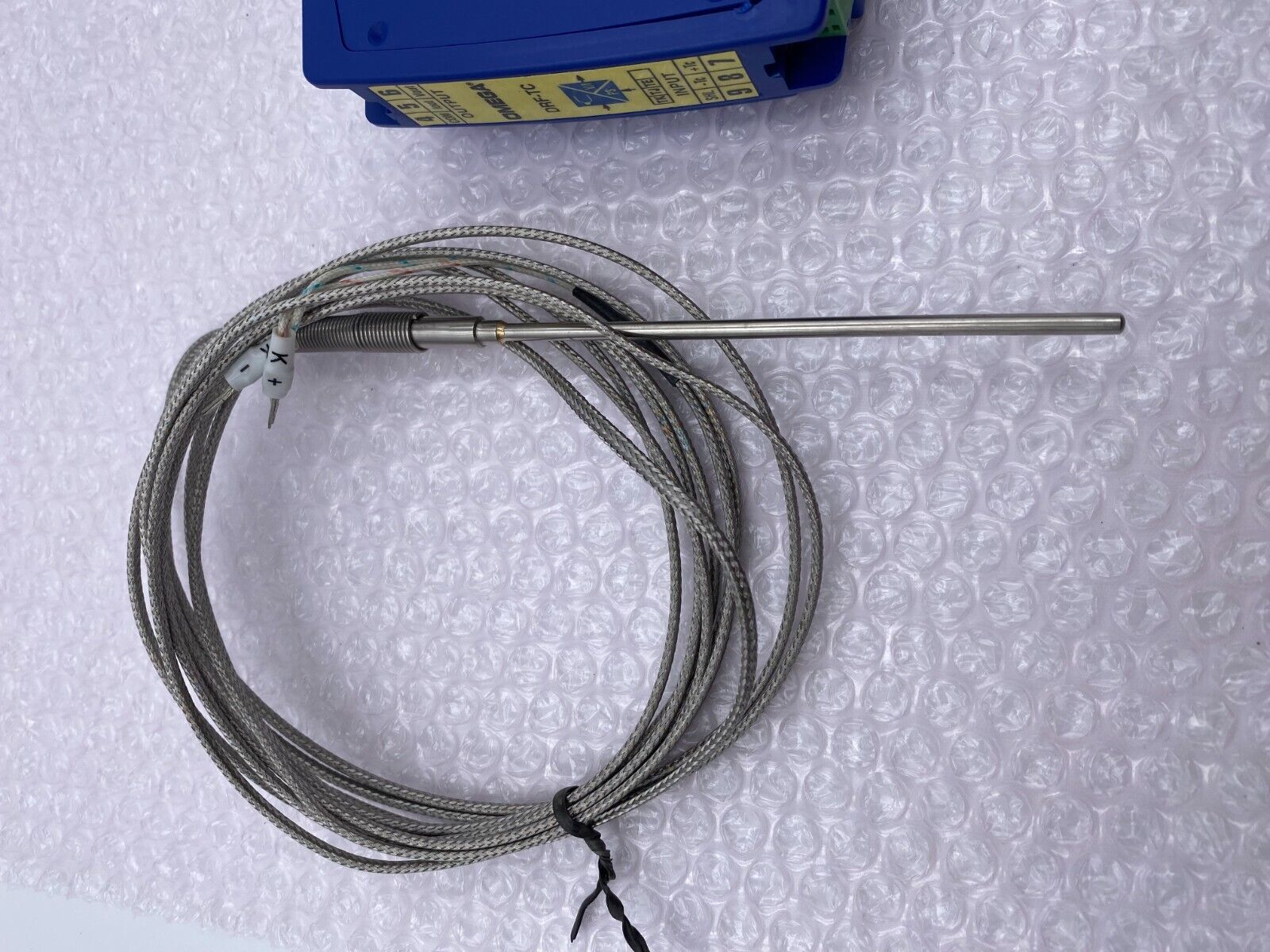

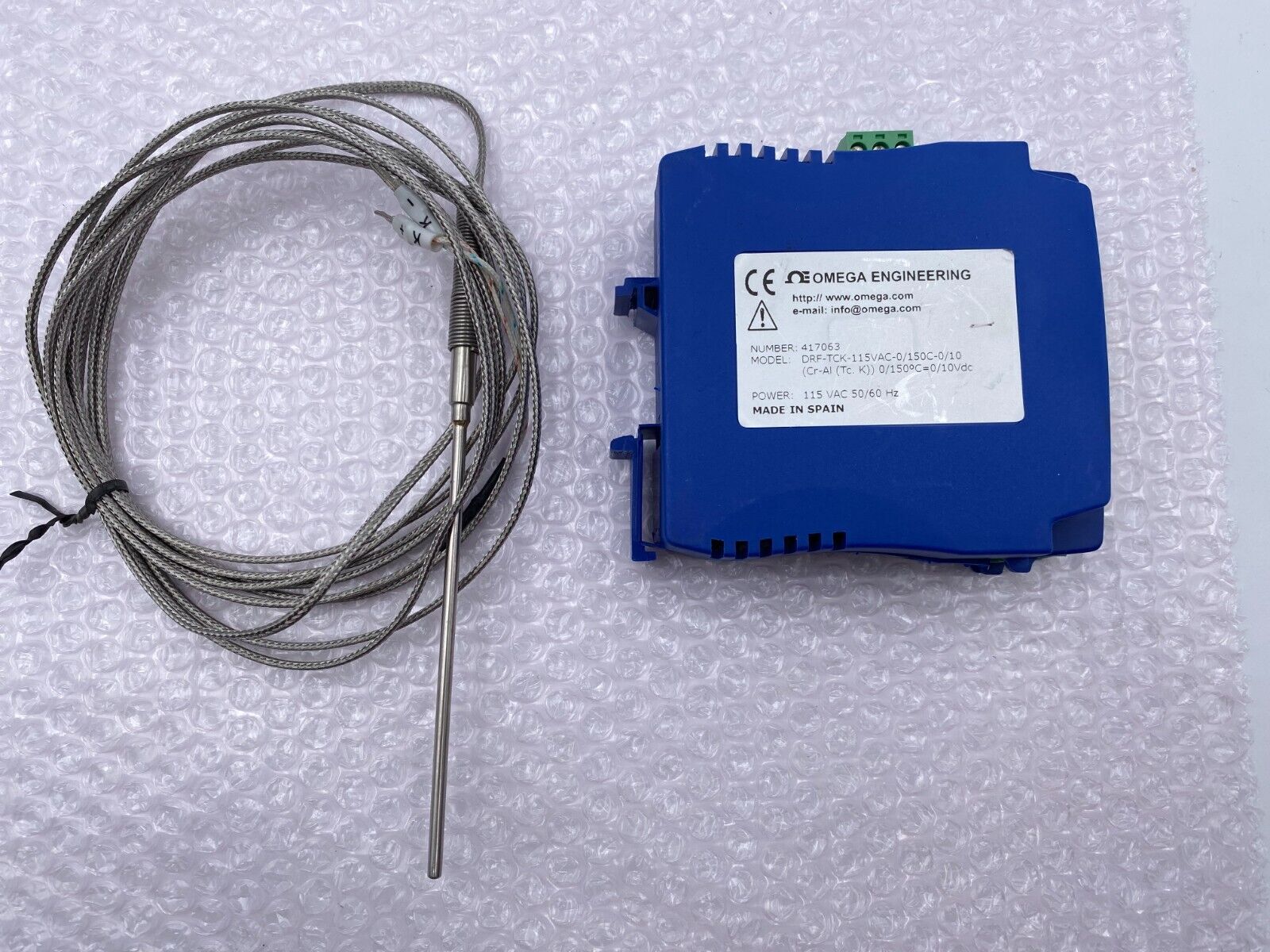

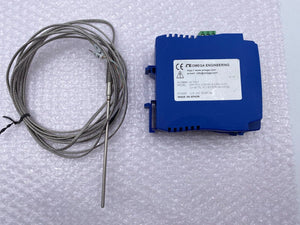

- USED ITEM IN GOOD COSMETIC CONDITION. READY FOR REUSE. INCLUDE TEMP PROBE SHOWN IN PHOTOS.
- Temp Probe - K Type
- NONE
Omega DRF-TCK-115VAC-0-150C-0/10 K Type Input Signal Conditioner With Probe is backordered and will ship as soon as it is back in stock.
