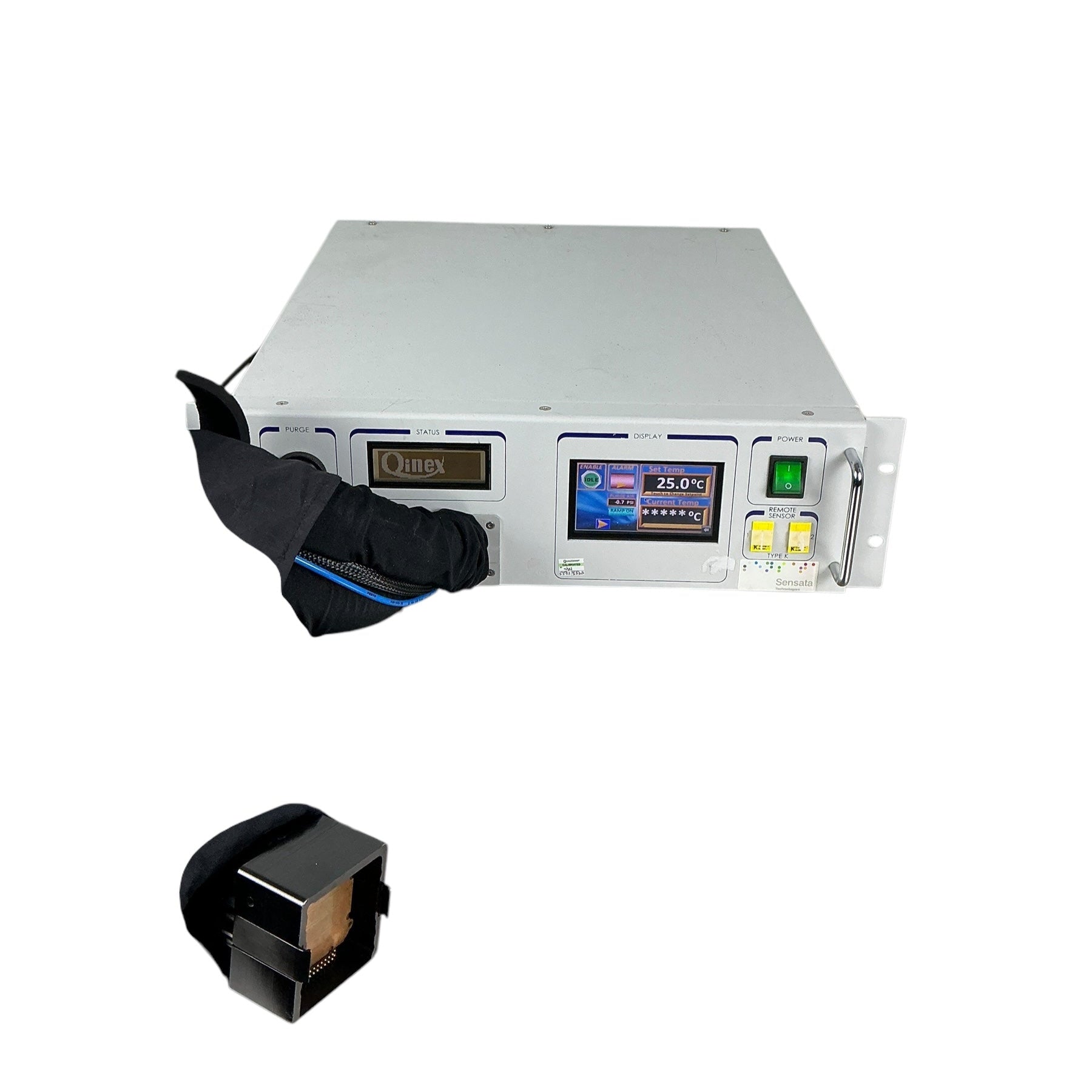

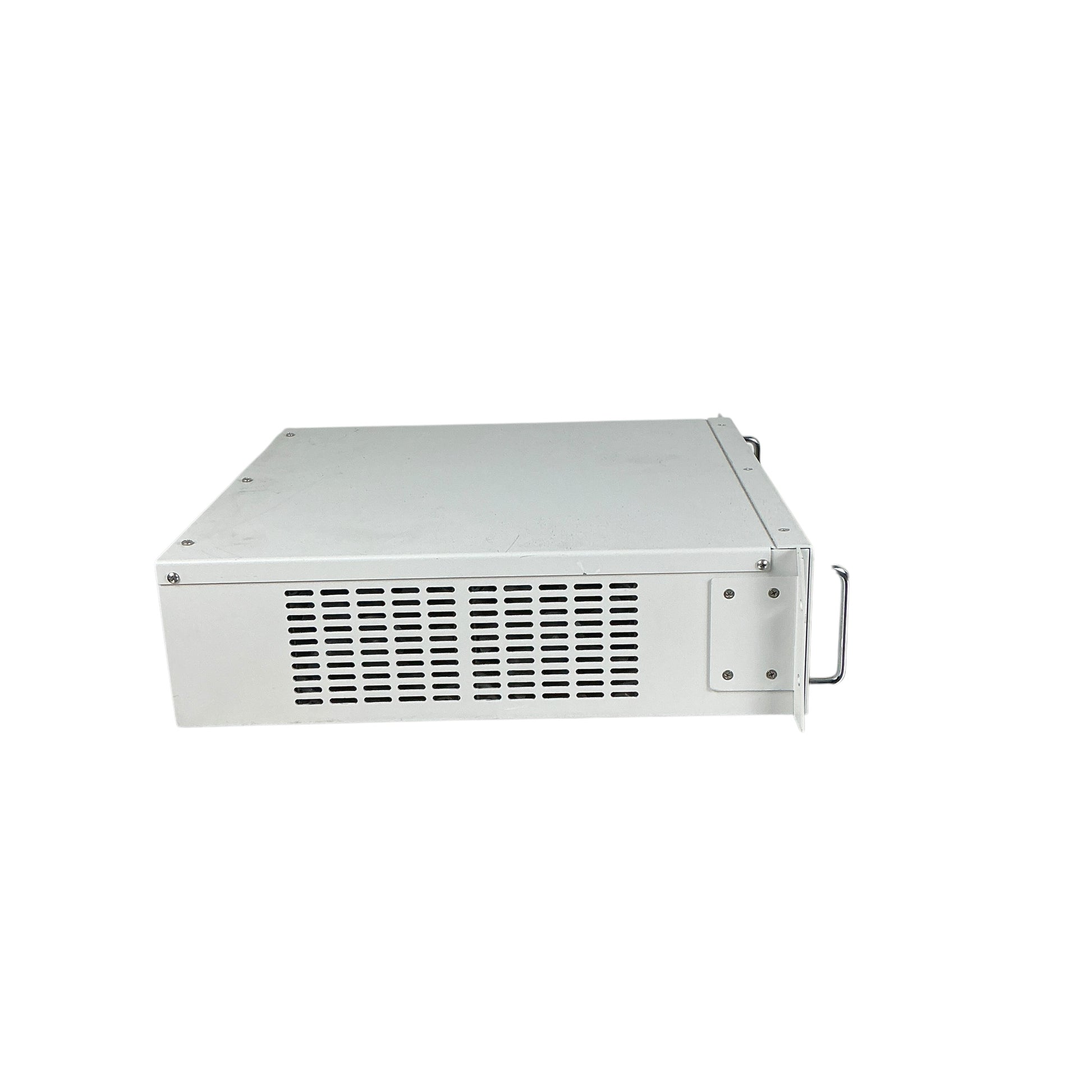

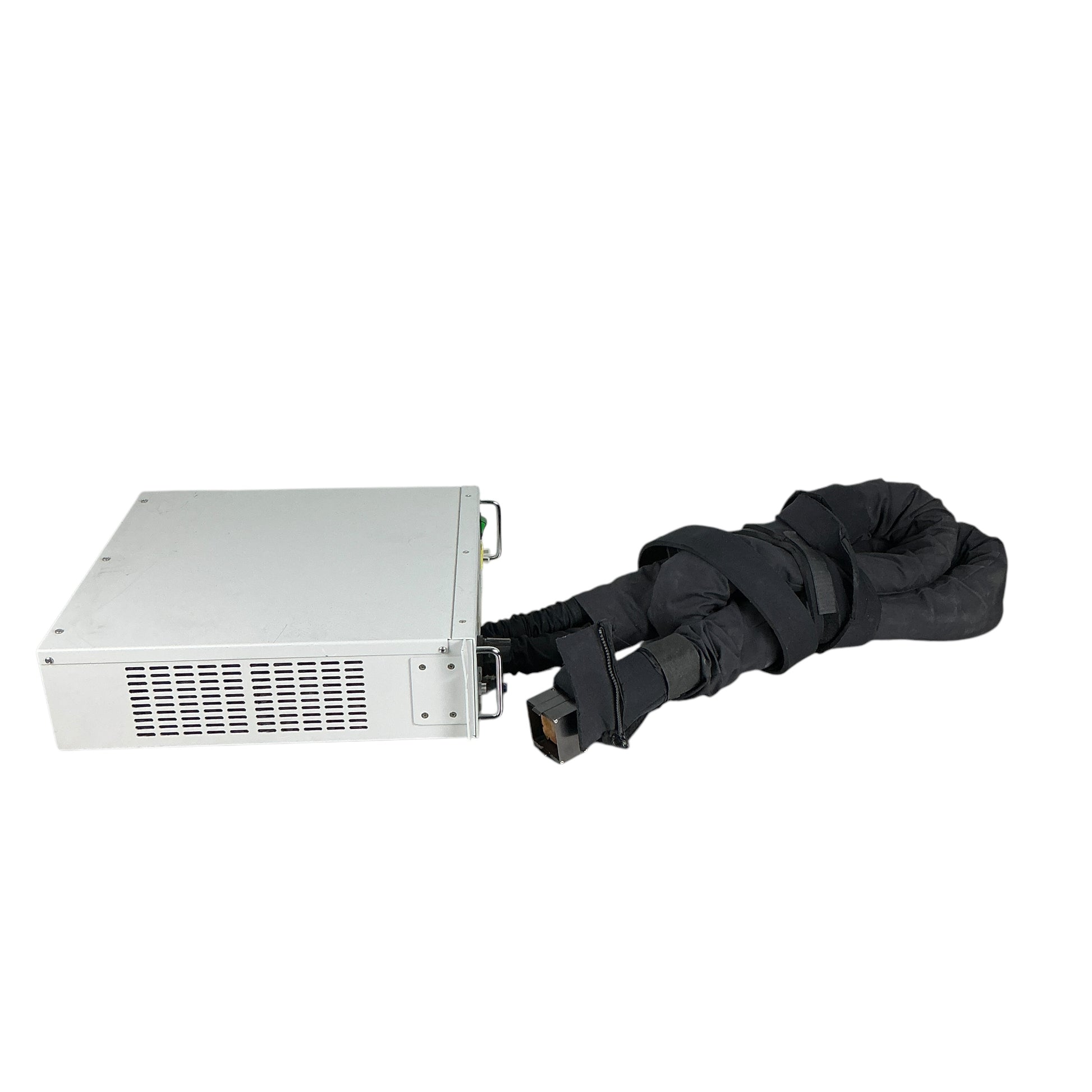

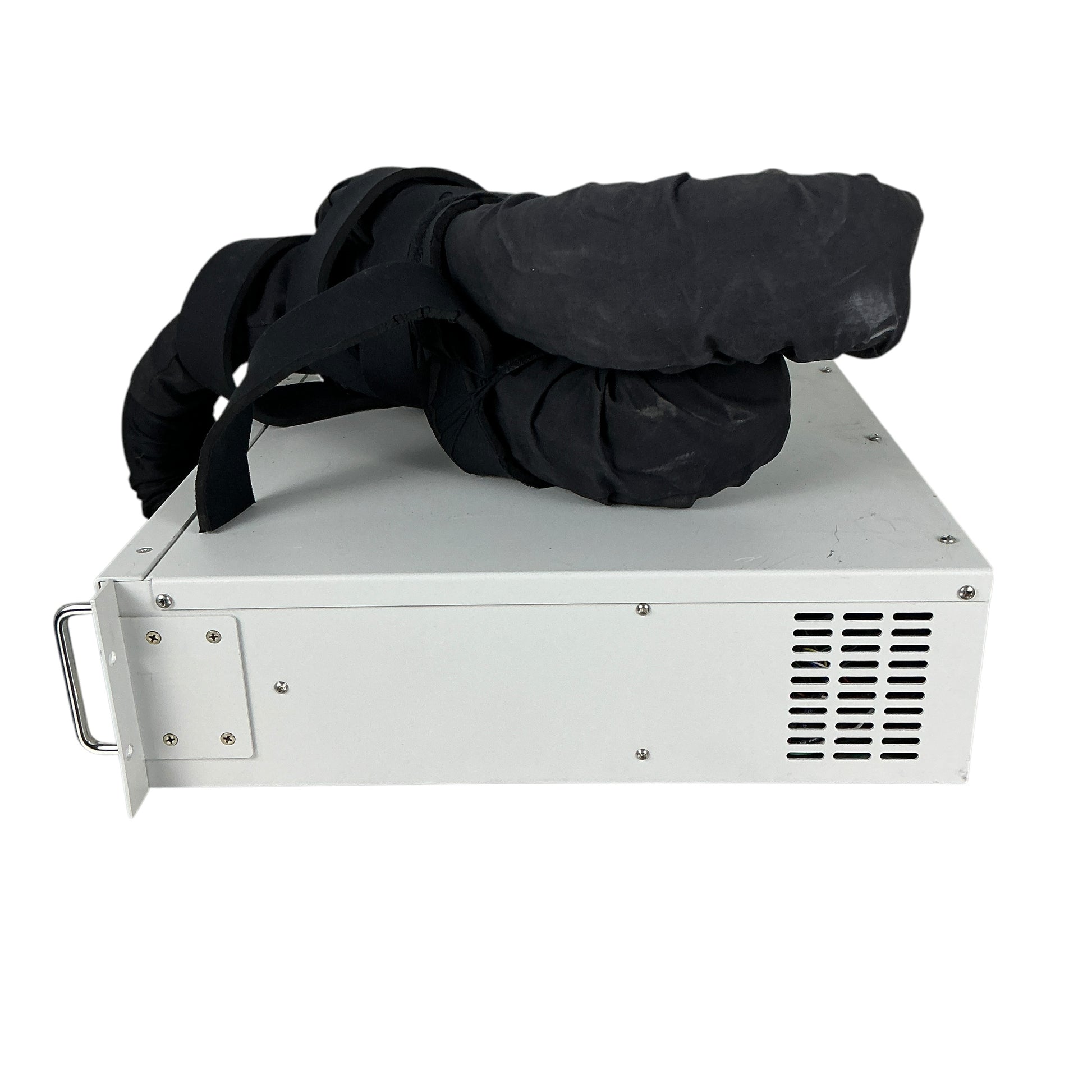

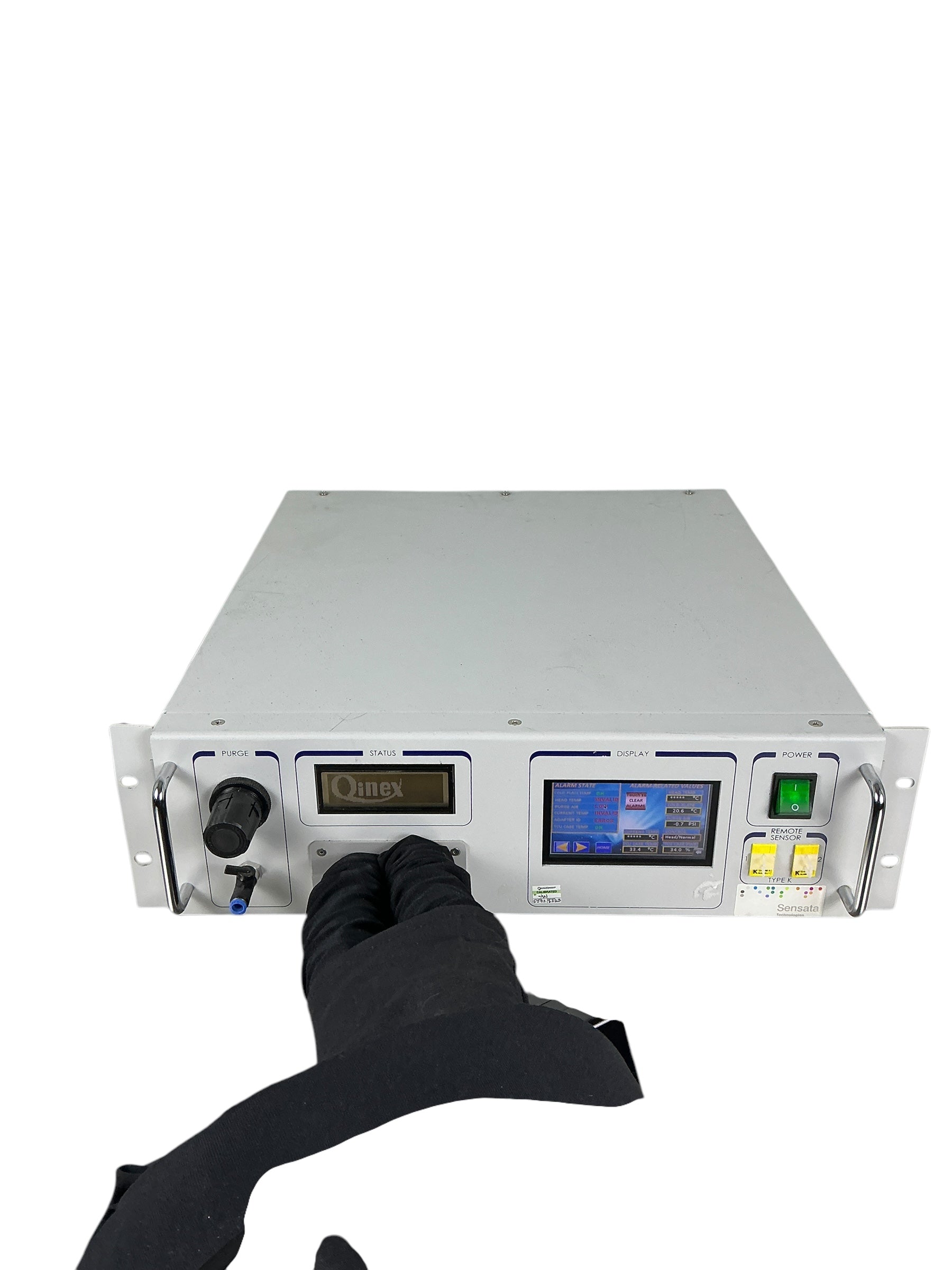

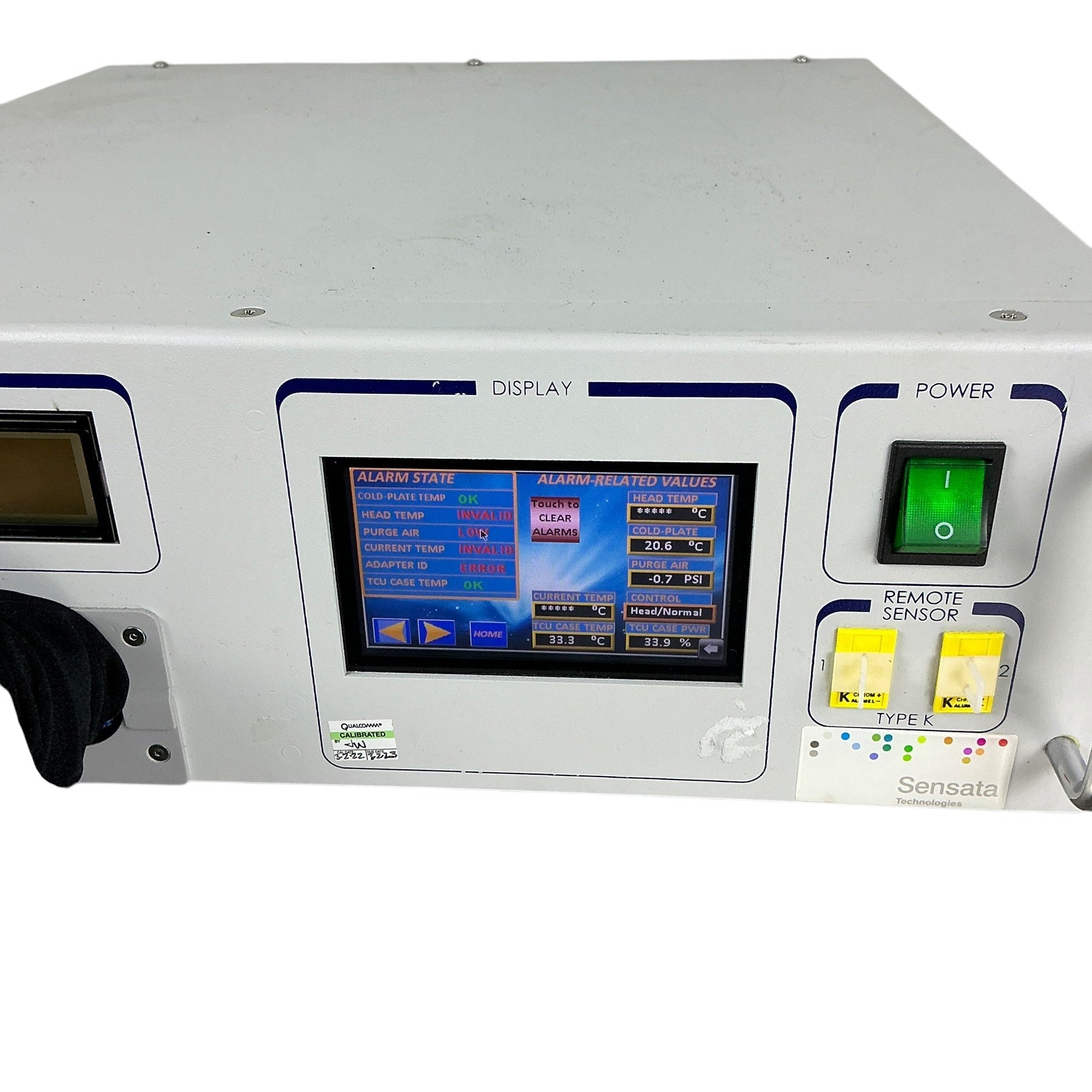

Sensata Qinex TCU-0534-0-System-01 Thermal Forcing System
Model: TCU-0534-0-System-01
Manufacturer: Sensata Qinex
Type: Thermal Forcing System (TFS)
Function
A precision air-based thermal control system used for localized hot/cold testing of electronic components, typically in semiconductor or reliability testing environments.
Typical Operating Temperature Range
Minimum temperature: approx. -60°C
Maximum temperature: approx. +200°C
(Exact range depends on specific configuration)
System Components
Thermal control unit (TCU) with PID regulation

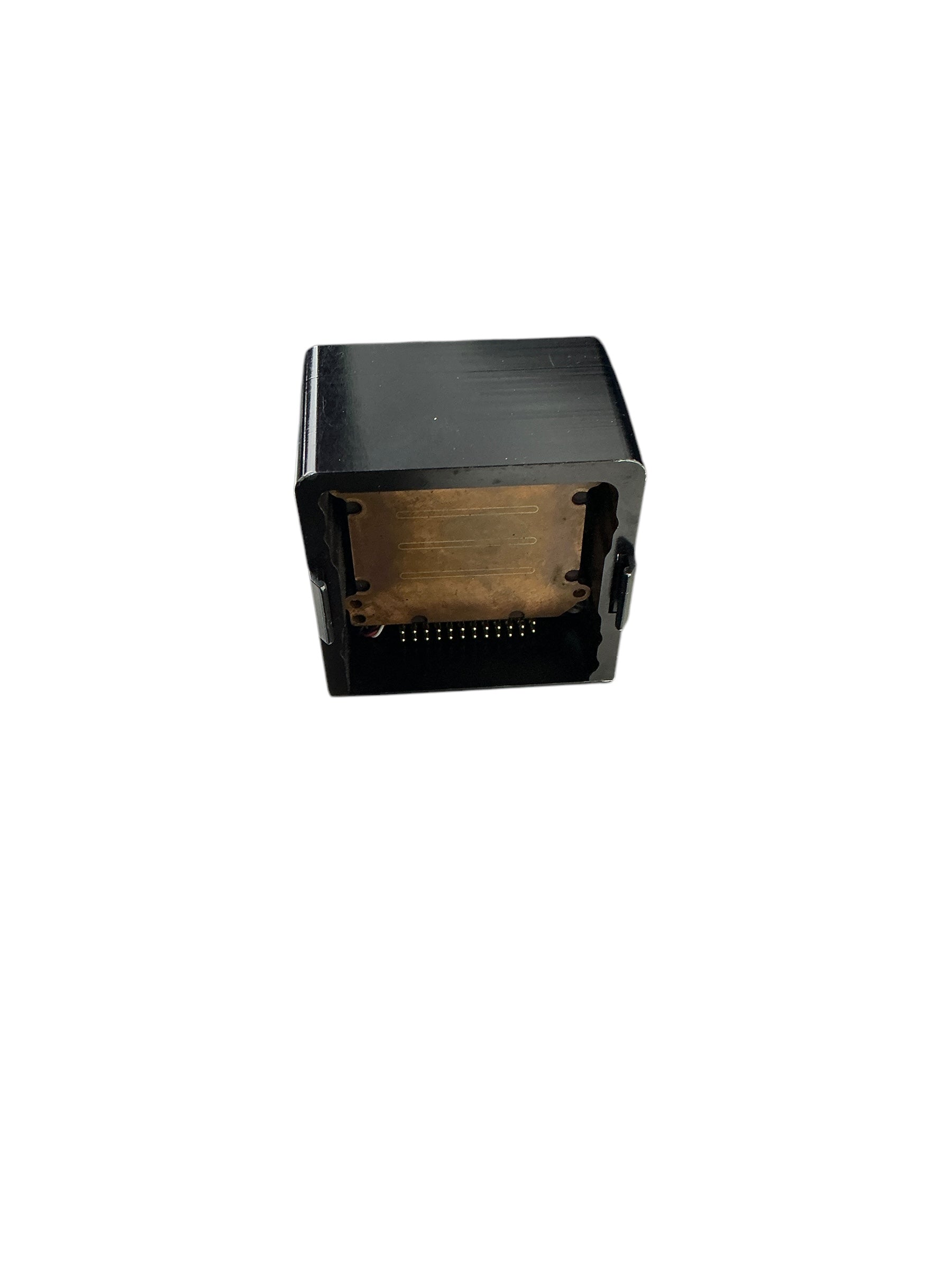

Air delivery nozzle or thermal head
Integrated temperature sensors (RTD or thermocouple-based)
External or integrated cooling system (thermoelectric or compressor-based)
Control Method
PID closed-loop control based on internal or external feedback sensors

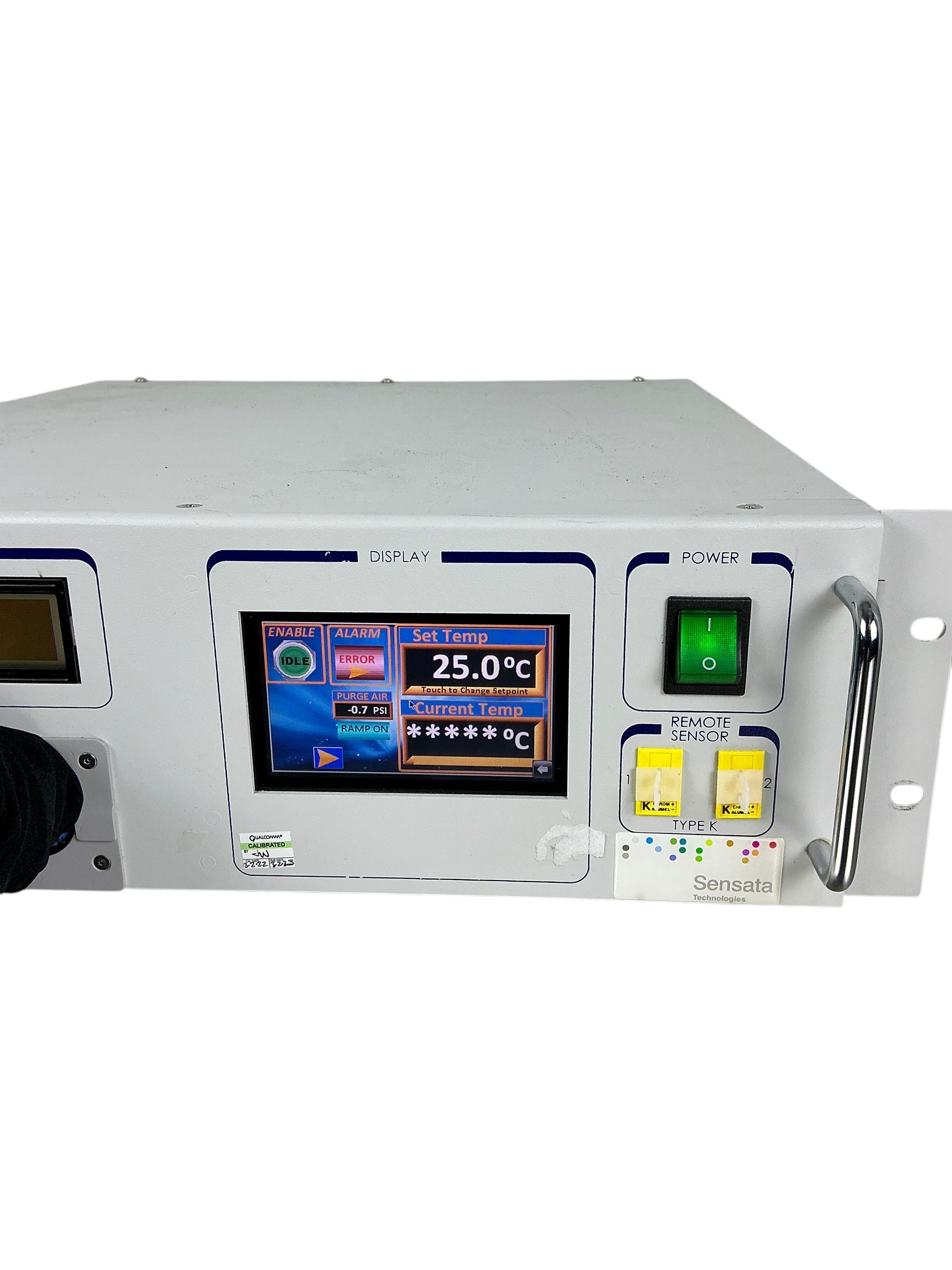

Setpoint configuration via front panel or remote communication

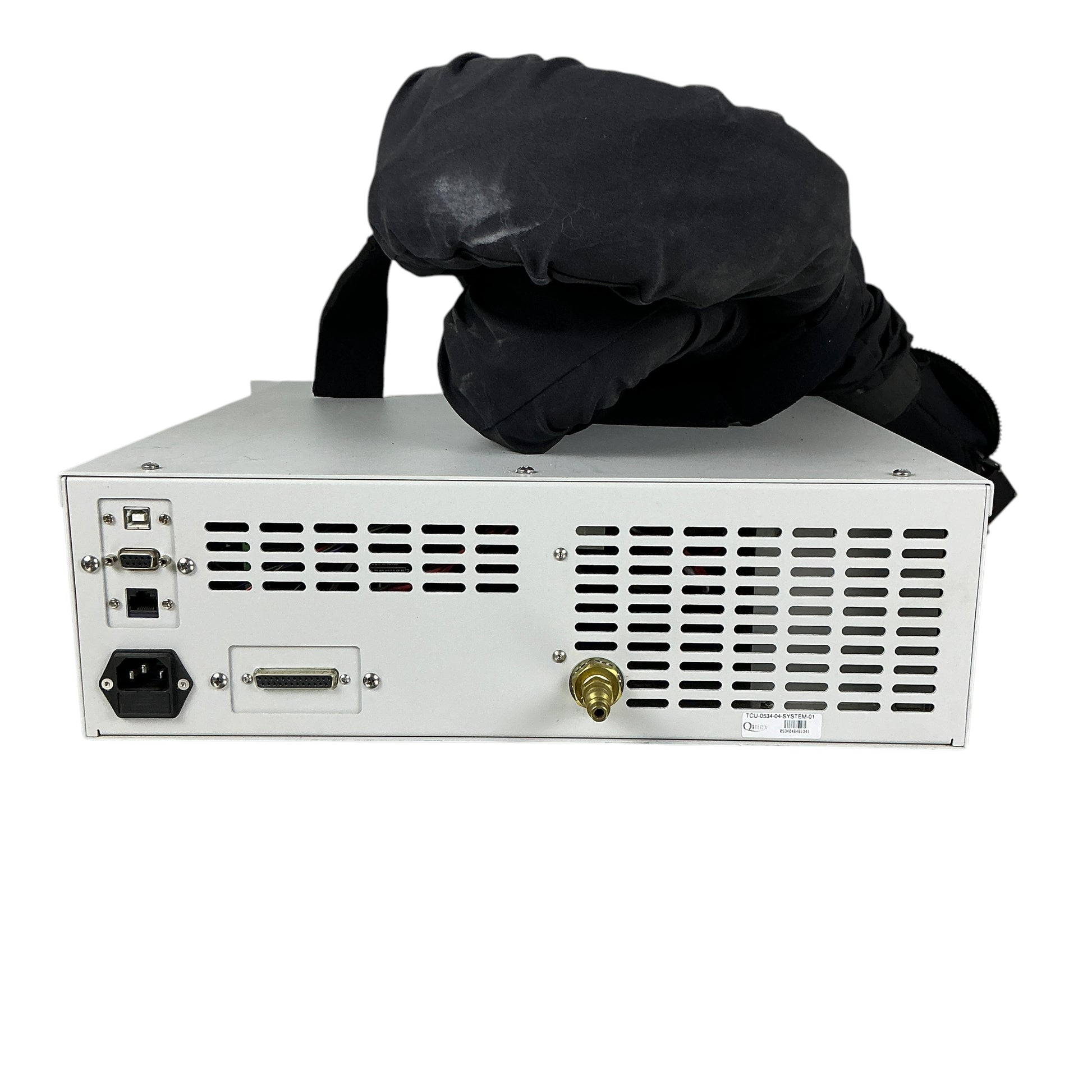

Interfaces
Serial (RS-232), USB, GPIB, or Ethernet (varies by model)
Digital I/O for system integration and interlocks
Features
Fast transition rate between hot/cold setpoints
User-programmable temperature ramp and soak profiles
Real-time temperature monitoring
Optional remote operation via SCPI or proprietary command protocols
DUT or ambient feedback sensor configuration
Applications
Semiconductor component testing
Failure analysis
Reliability screening
MEMS or sensor evaluation
Environmental cycling for quality assurance
Additional Notes
Requires proper airflow clearance and chiller maintenance for optimal operation
Designed for integration with automated test equipment (ATE) or manual test setups
Sold As Shown.
Includes Power Cord.
No Additional Items Included.
Password Is Unknown. And Will Require a Factory Reset.
Cooling Head is Missing Fitting
Sensata Qinex TCU-0534-0-System-01 Thermal Forcing System is backordered and will ship as soon as it is back in stock.
Pickup available at 1128 Western St
Usually ready in 24 hours
