Ted Pella 2285-101U Micrometer Scale 1mm 0.01mm Reflected Light
The reference every measurement on your stage depends on
An eyepiece reticle reports arbitrary units until it is calibrated against a known scale. Change the objective, change the tube factor, add a coupler, and the calibration changes with it. A stage micrometer is the artefact that turns those arbitrary divisions into real microns.

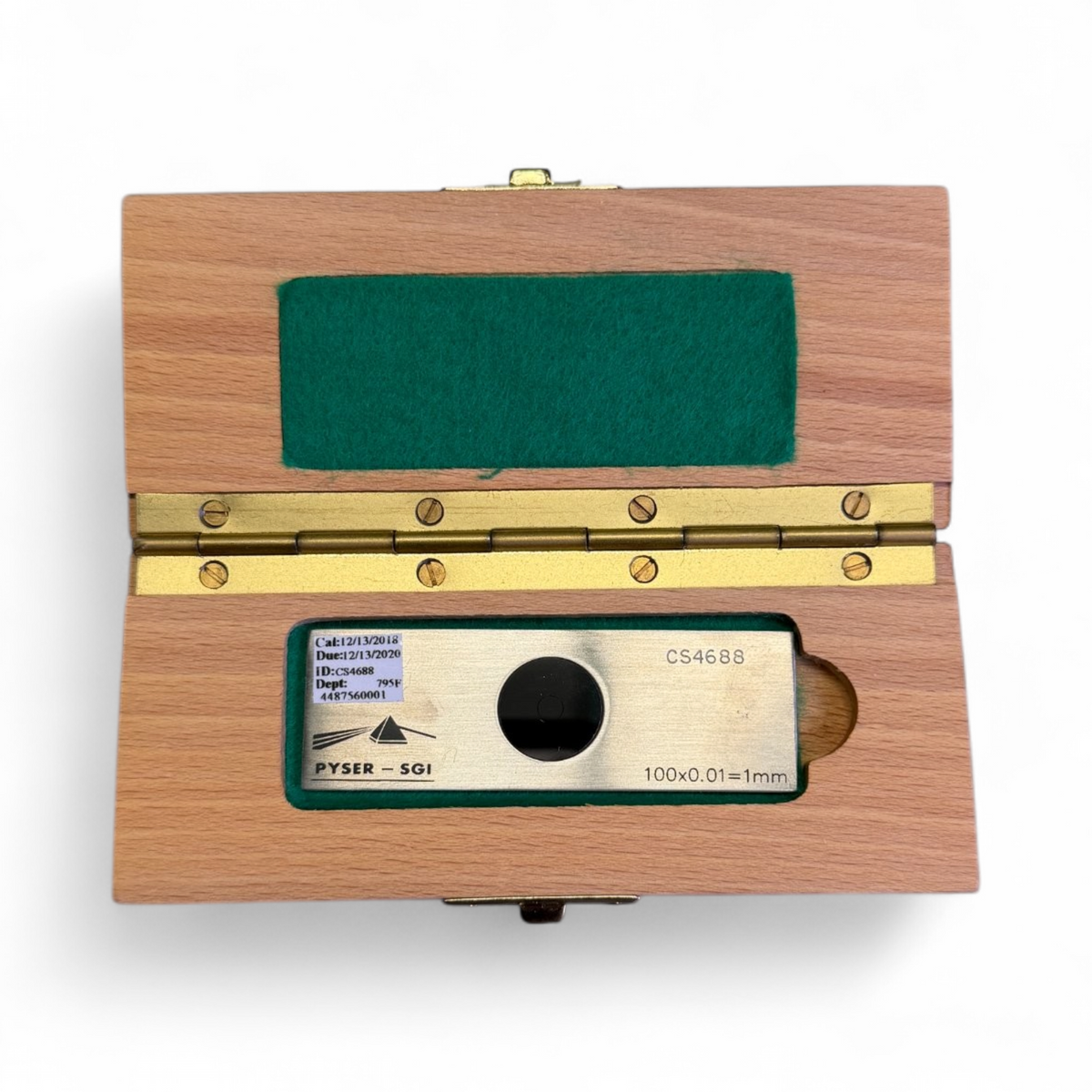

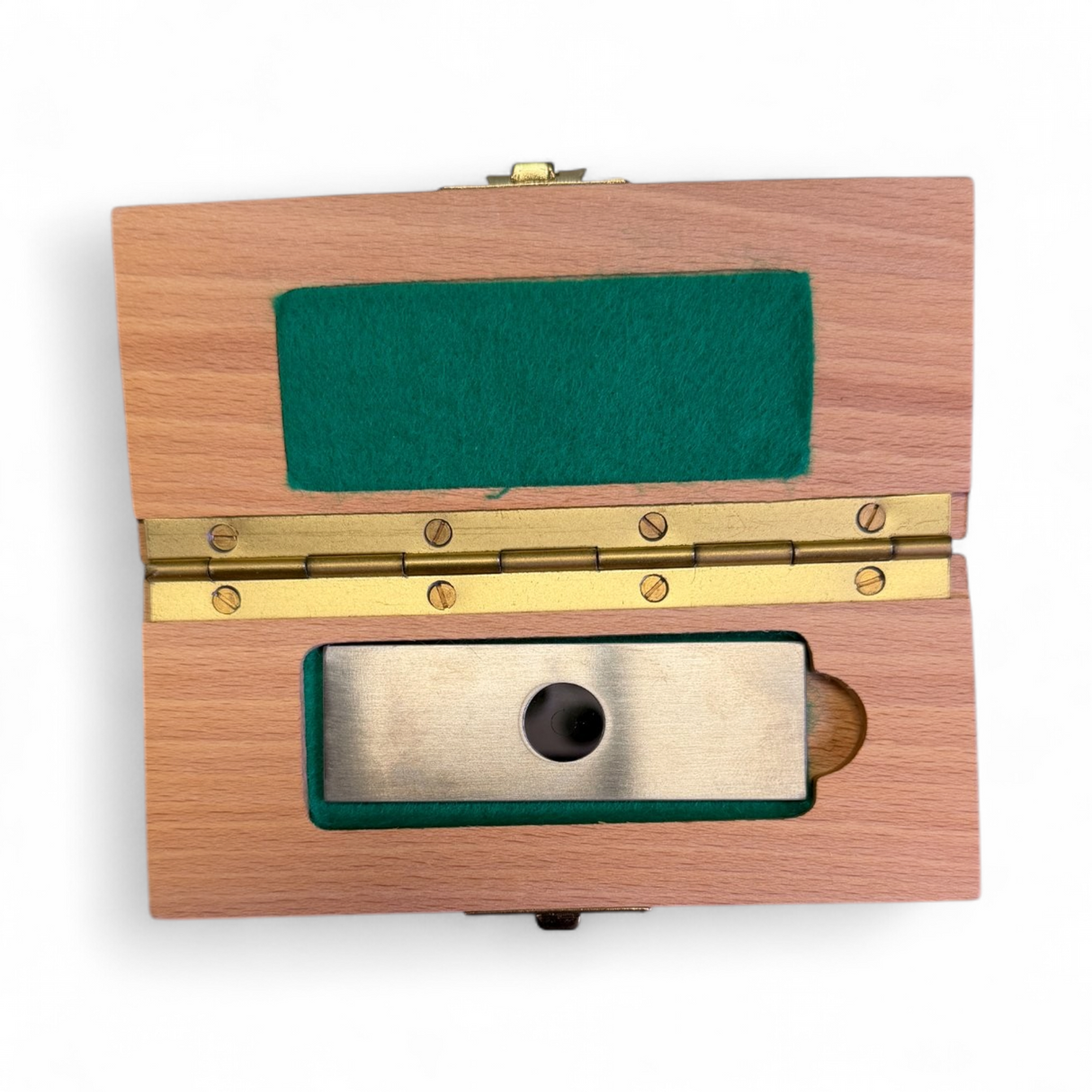

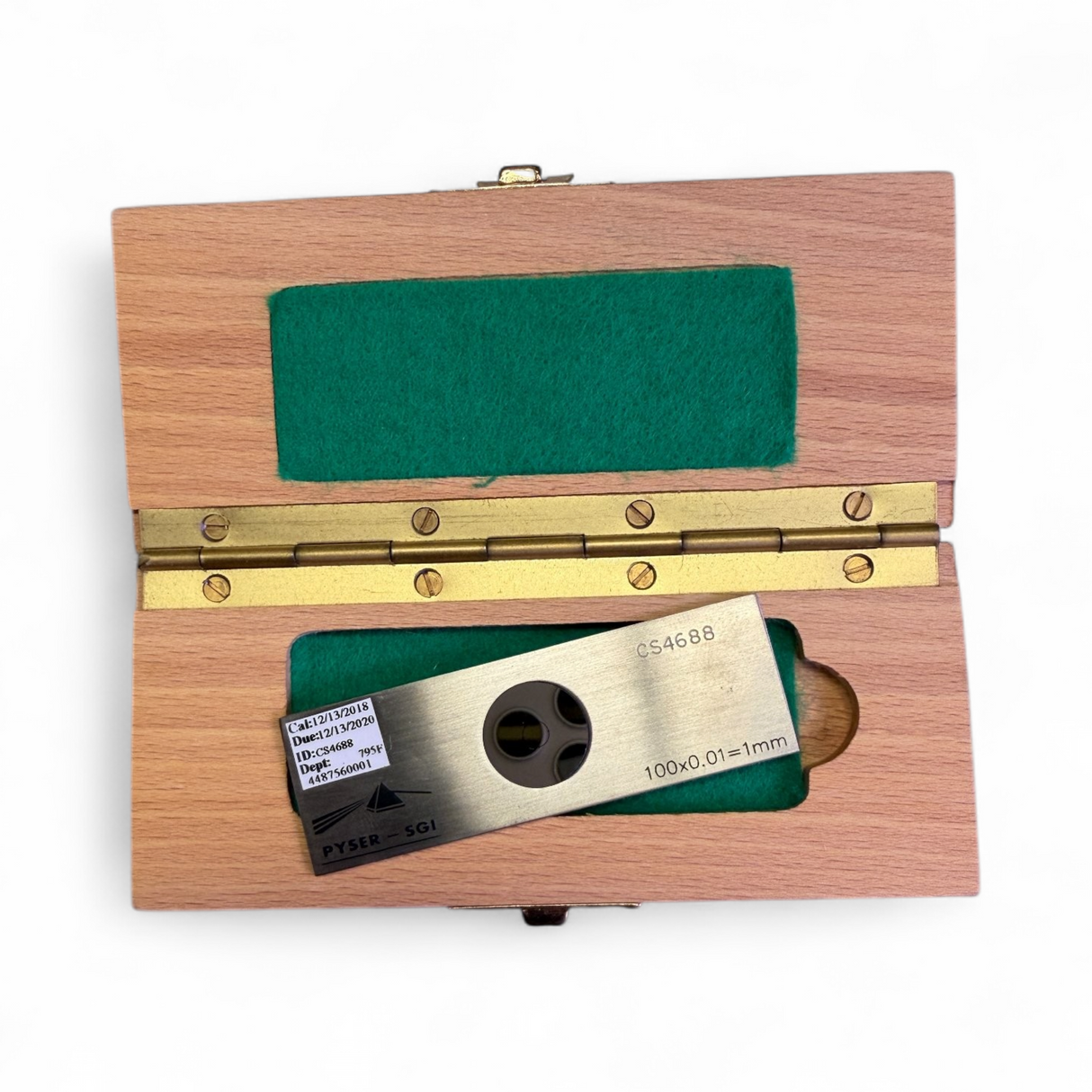

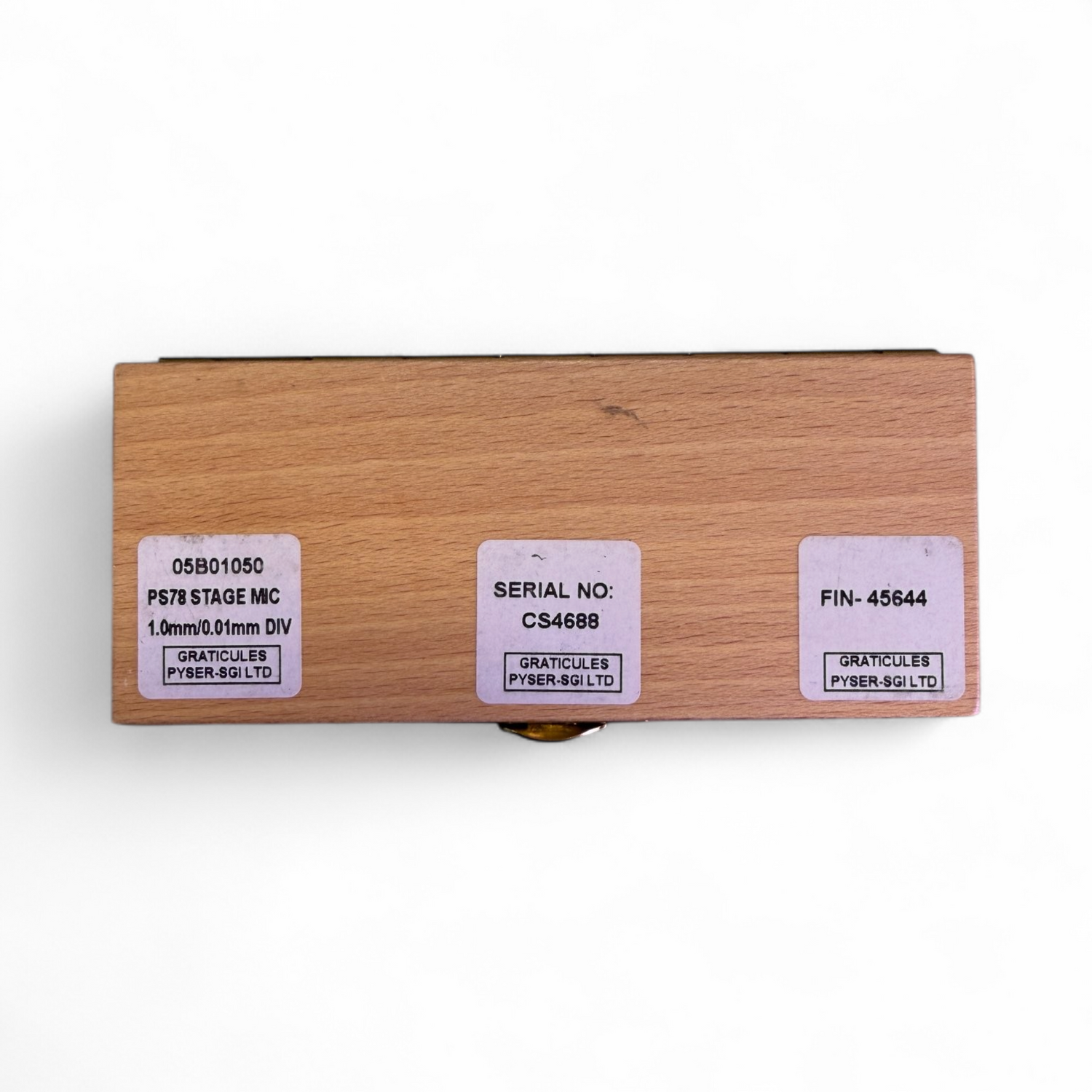

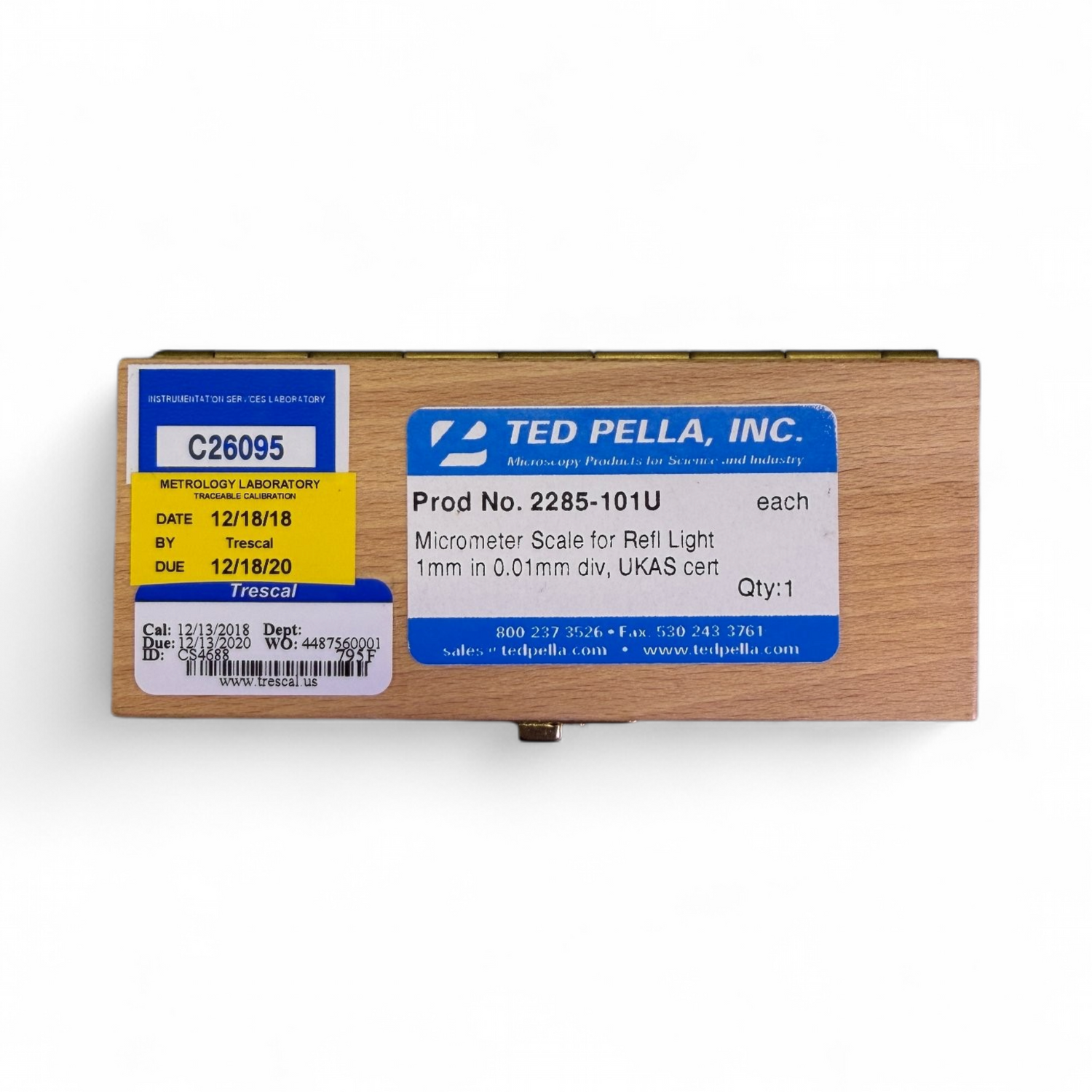

This is the Ted Pella 2285-101U, a reflected-light micrometer marked 100x0.01=1mm and identified as a Pyser-SGI PS78. The case label specifies a 1 mm scale in 0.01 mm divisions with UKAS certification. It arrives in its original wooden storage box.
Where it earns its place
- Calibrating eyepiece reticles and imaging software across every objective in a turret
- Reflected-light and metallurgical work where transmitted micrometers will not read
- Verifying a measurement chain after a camera, coupler or phototube change
- Routine QA checks on instruments that produce dimensional reports
Specifications
| Brand | Ted Pella, Inc |
|---|---|
| Model | 2285-101U |
| MPN | 05B01050 |
| Also identified as | Pyser-SGI PS78 |
| Scale length | 1 mm |
| Division size | 0.01 mm |
| Scale marking | 100 x 0.01 = 1 mm |
| Illumination type | Reflected light |
| Certification | UKAS, per case label |
| Country of manufacture | United States |
Condition
Tested and fully functional. The slide itself is clean with no notable cosmetic flaws. The wooden storage box shows light scuffs and minor handling marks. Photographs show the exact item you receive.
In the box
- Ted Pella 2285-101U micrometer scale
- Wooden storage box
