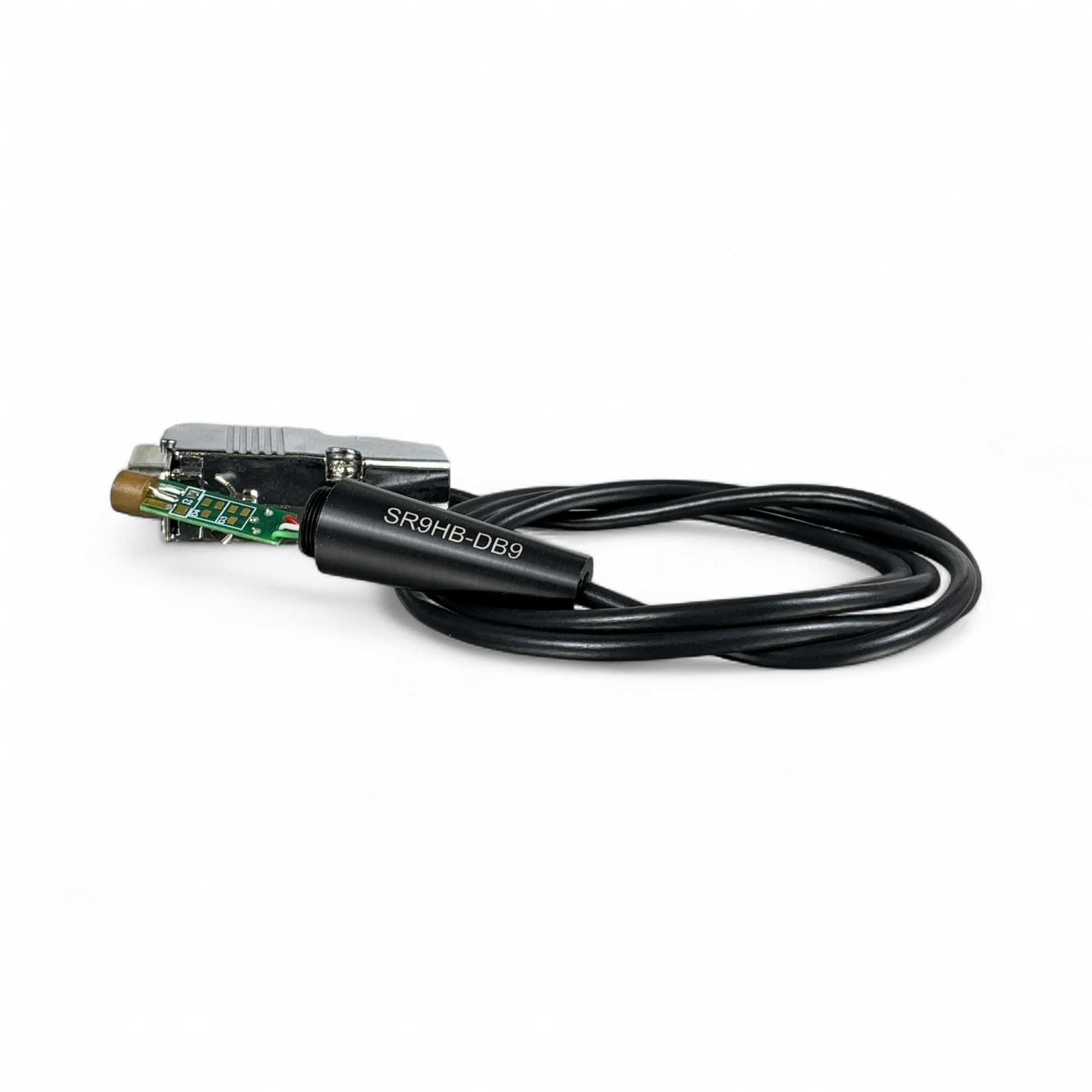

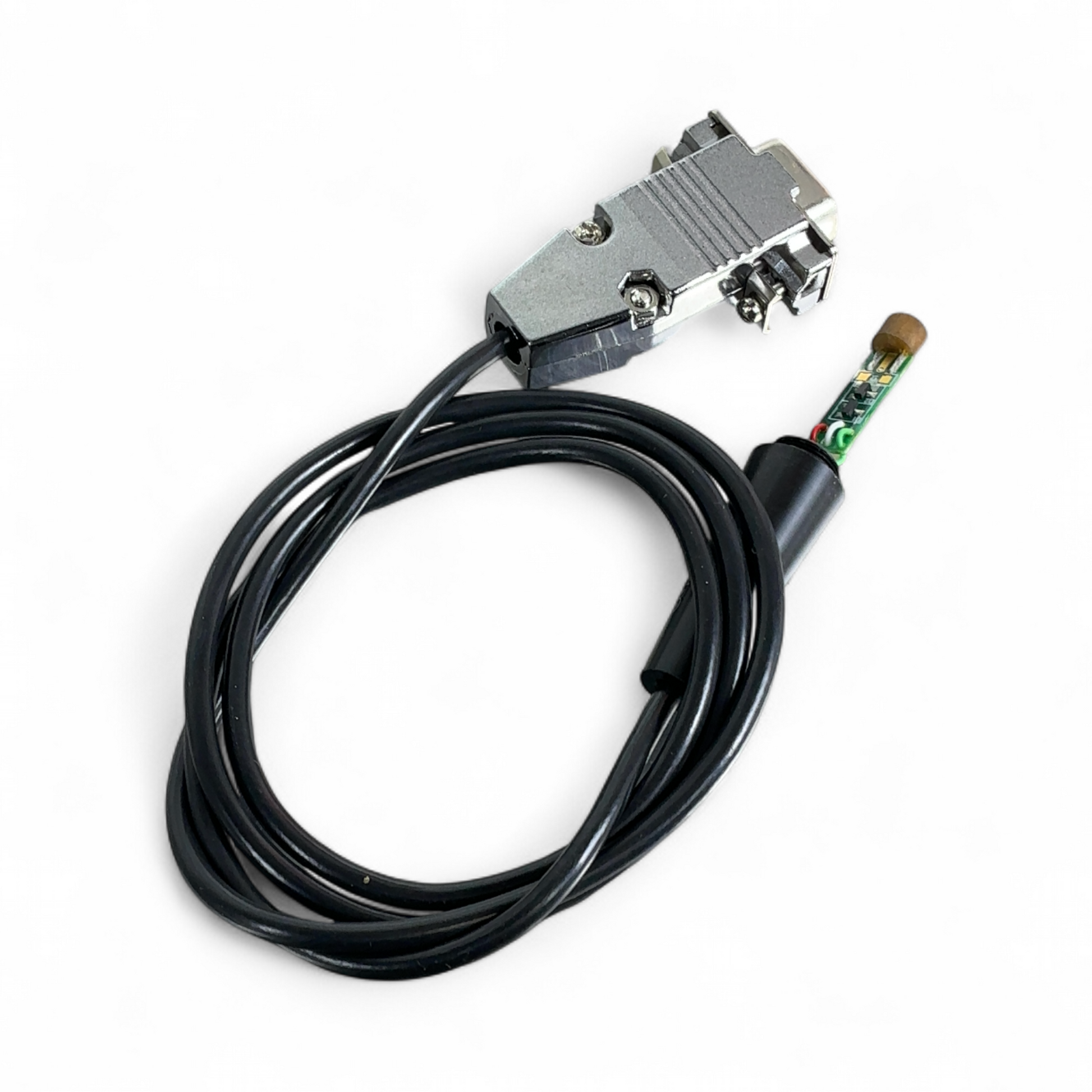

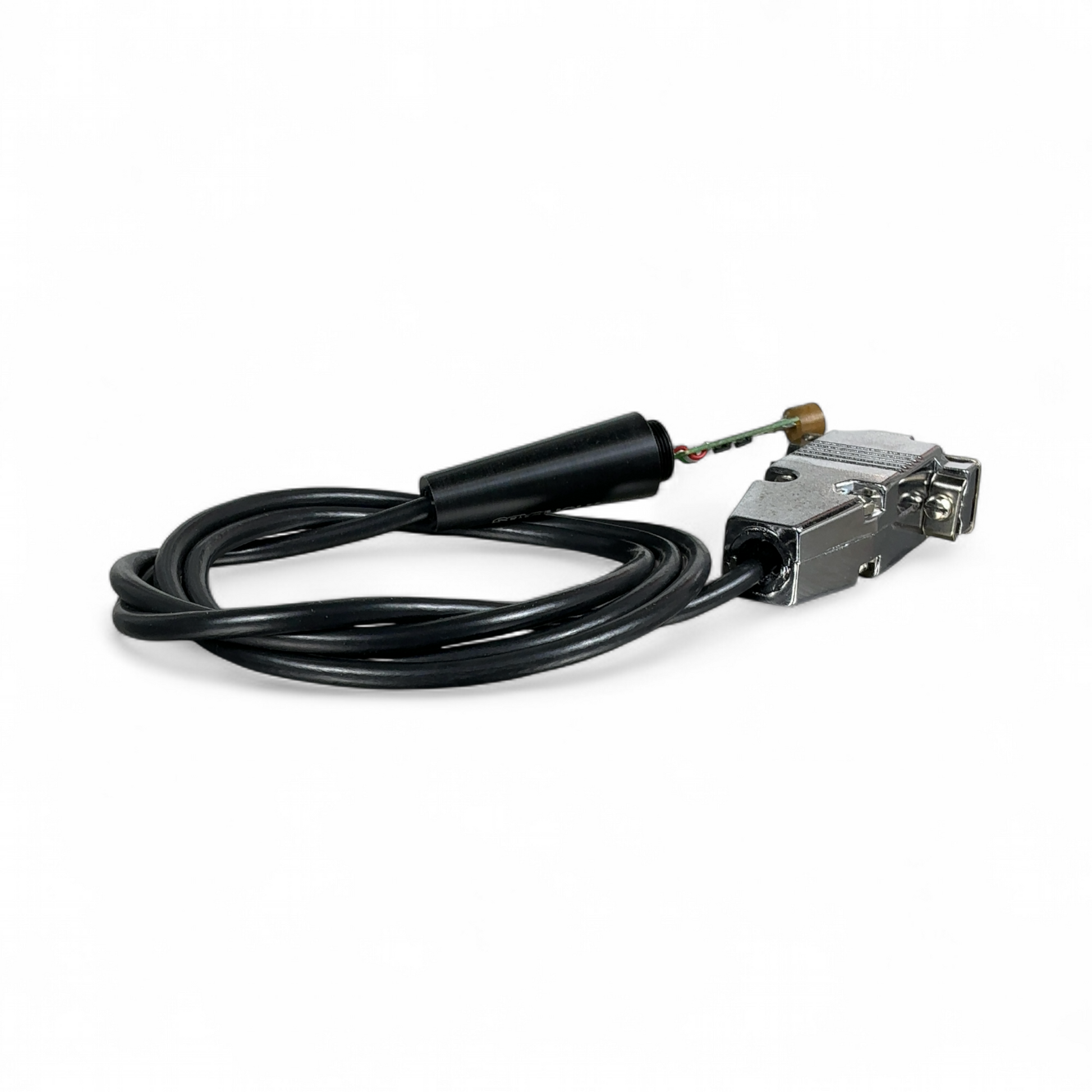

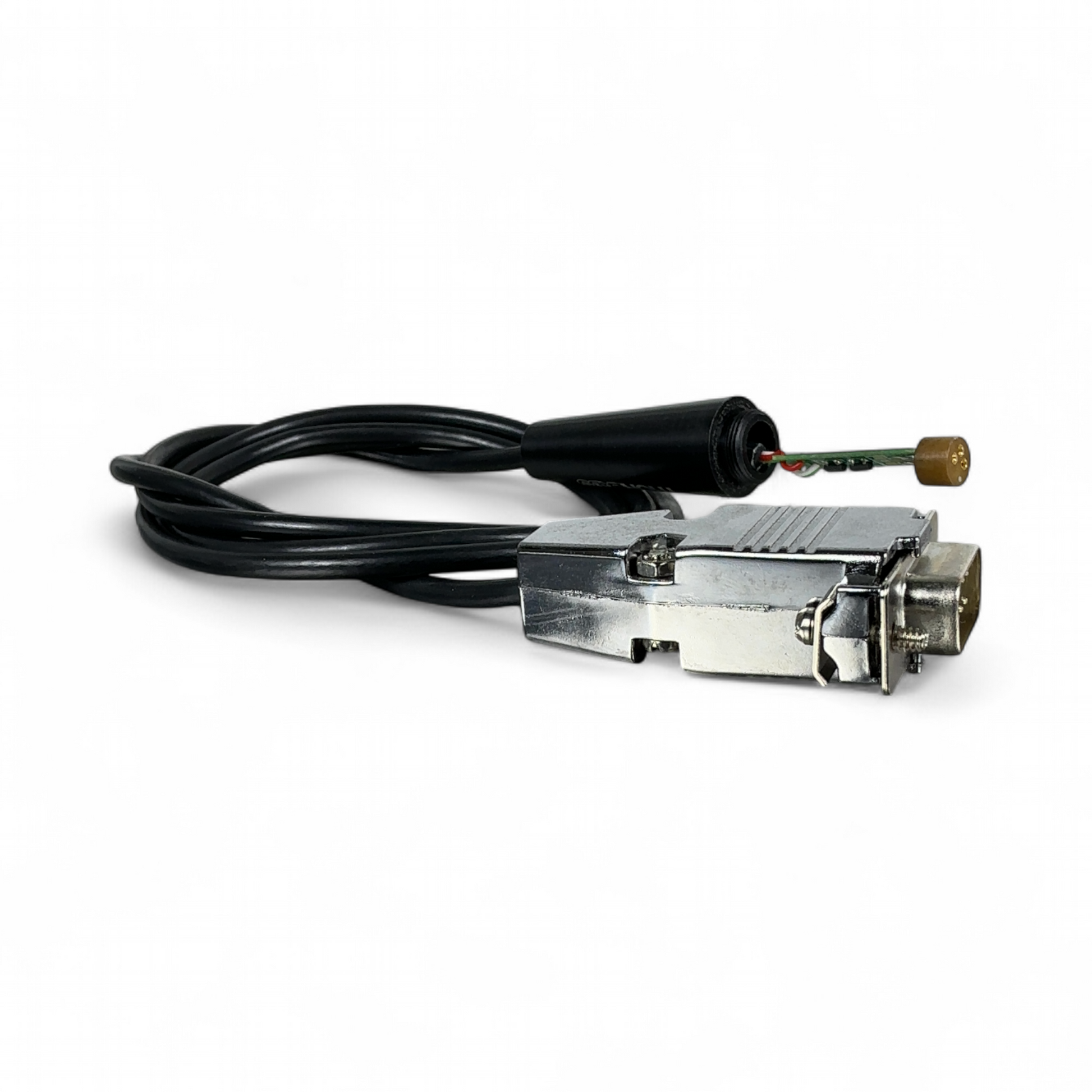

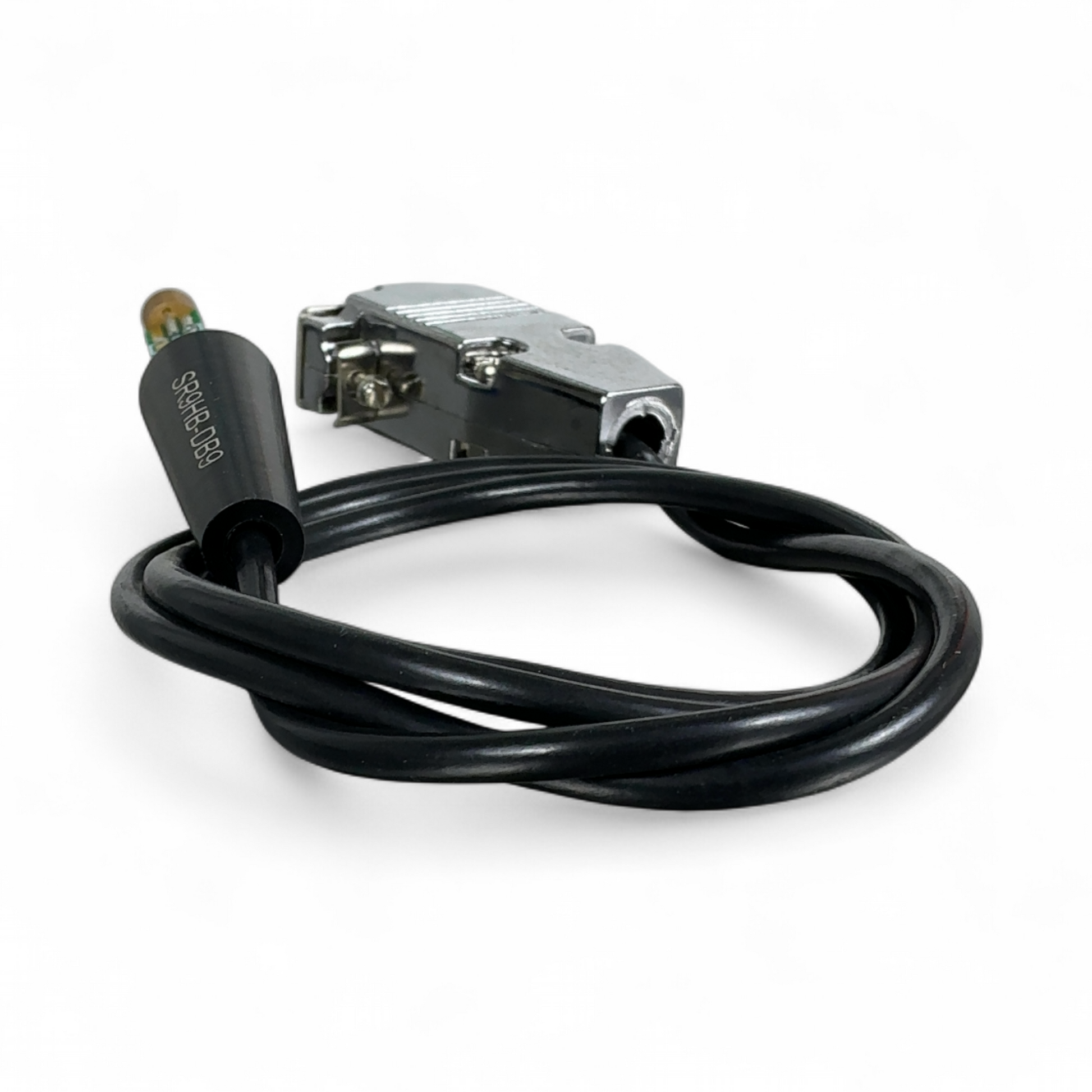

Thorlabs SR9HB-DB9 Laser Socket & SHD Cable, ESD Protection, Pin Codes B and H
ESD protection, because a laser diode dies once
Laser diodes are destroyed by static discharge, and the failure is instant and permanent. A socket with integrated ESD protection and strain relief is the cheapest insurance available against losing a diode to a careless moment or a tugged cable.
This is the SR9HB-DB9 covering pin codes B and H at 7.5 V, compatible with CR99, LD49, LD69, LDC1, LDC2 and LDC2A pin codes. The full pinout is listed below so you can check it against your diode before ordering.
Where it earns its place
- Protecting a laser diode from electrostatic damage during handling
- Connecting a diode to a Thorlabs controller with the correct pinout
- Strain relief where cable movement risks the connection
- Spare cable for a bench that reconfigures diode setups
Specifications
| Brand | Thorlabs |
|---|---|
| Model | Laser socket & SHD cable, ESD protection and strain relief |
| MPN | SR9HB-DB9 |
| Pin codes | B and H |
| Voltage | 7.5 V |

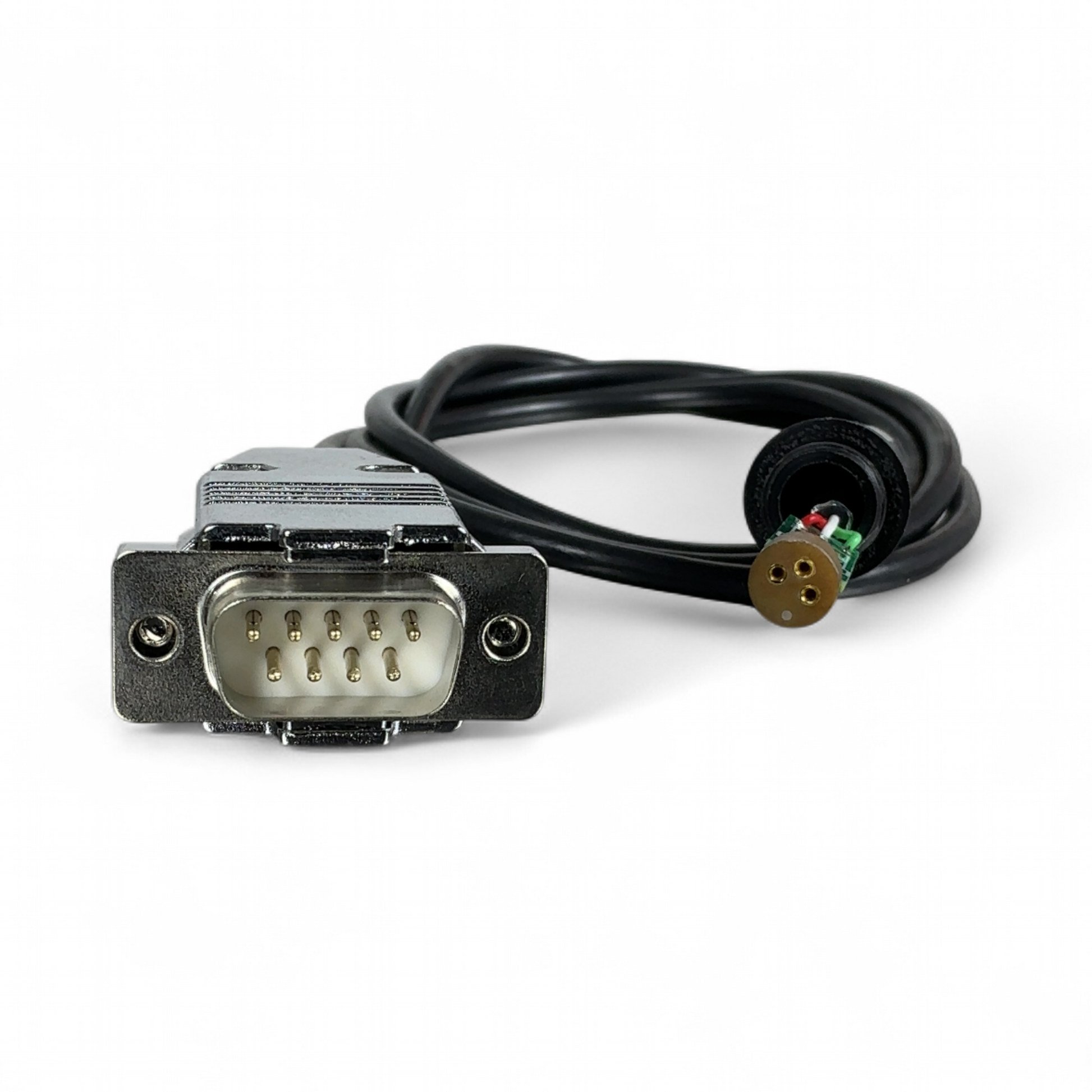

| Connector | DB9 |
| Weight | 0.02 kg |
| Pinout | Pins 2,3 photodiode cathode; pin 4 photodiode anode; pins 7,8 laser diode anode; pin 9 laser diode cathode |
| Compatibility | CR99, LD49, LD69, LDC1, LDC2, LDC2A pin codes |
Condition

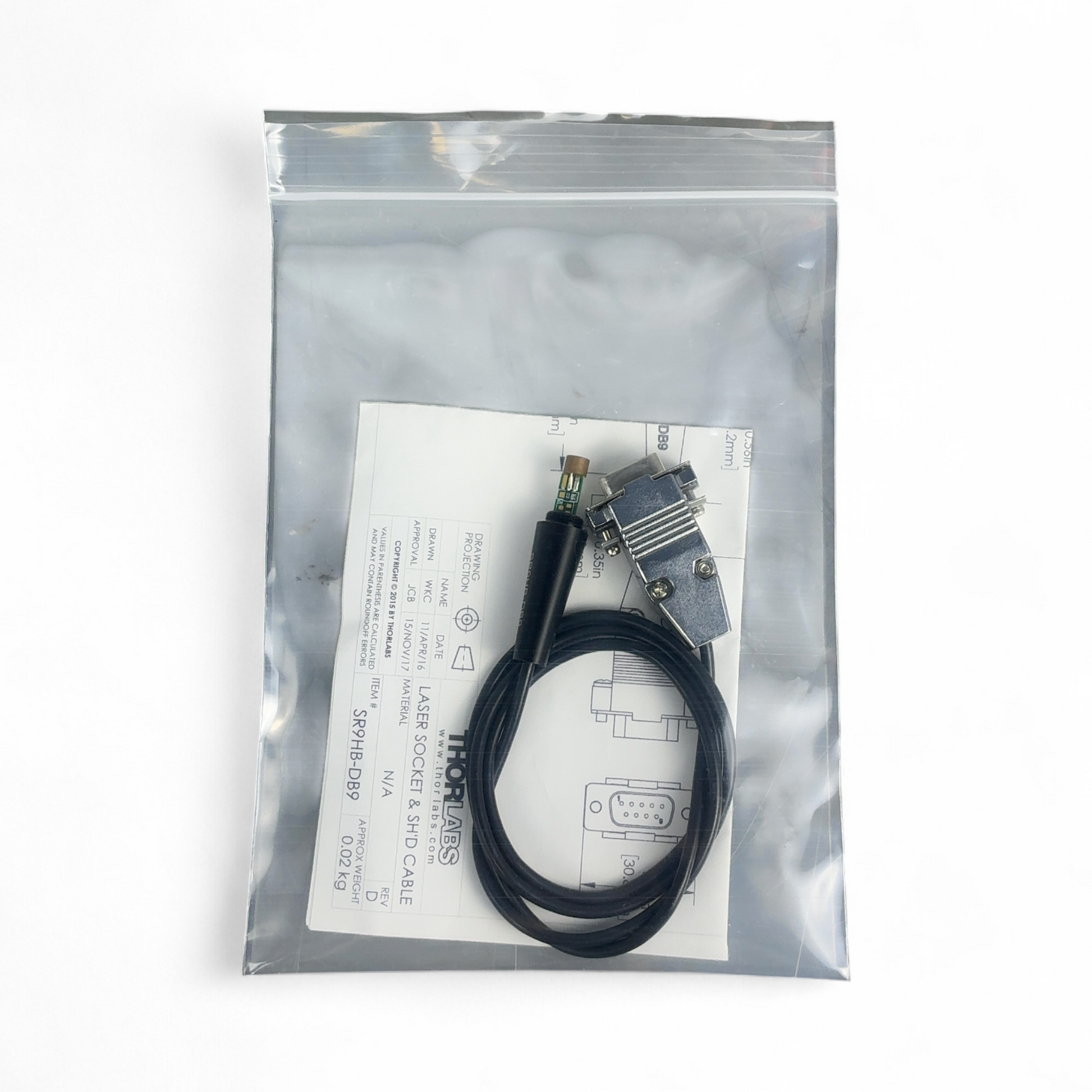

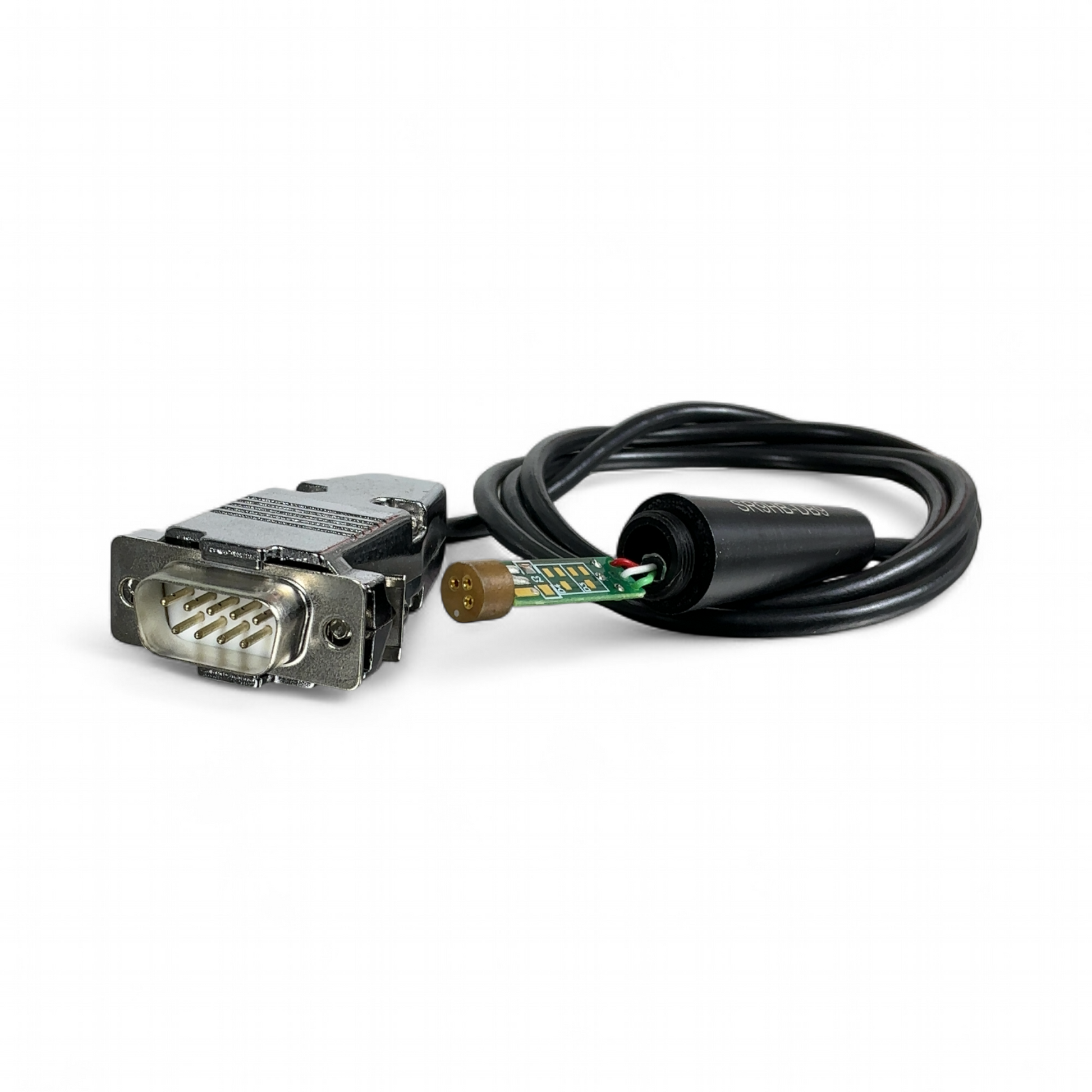

New and unused in its original clear plastic packaging, which shows minor wrinkling from handling. The cable shows no signs of wear or use. Photographs show the exact item you receive.

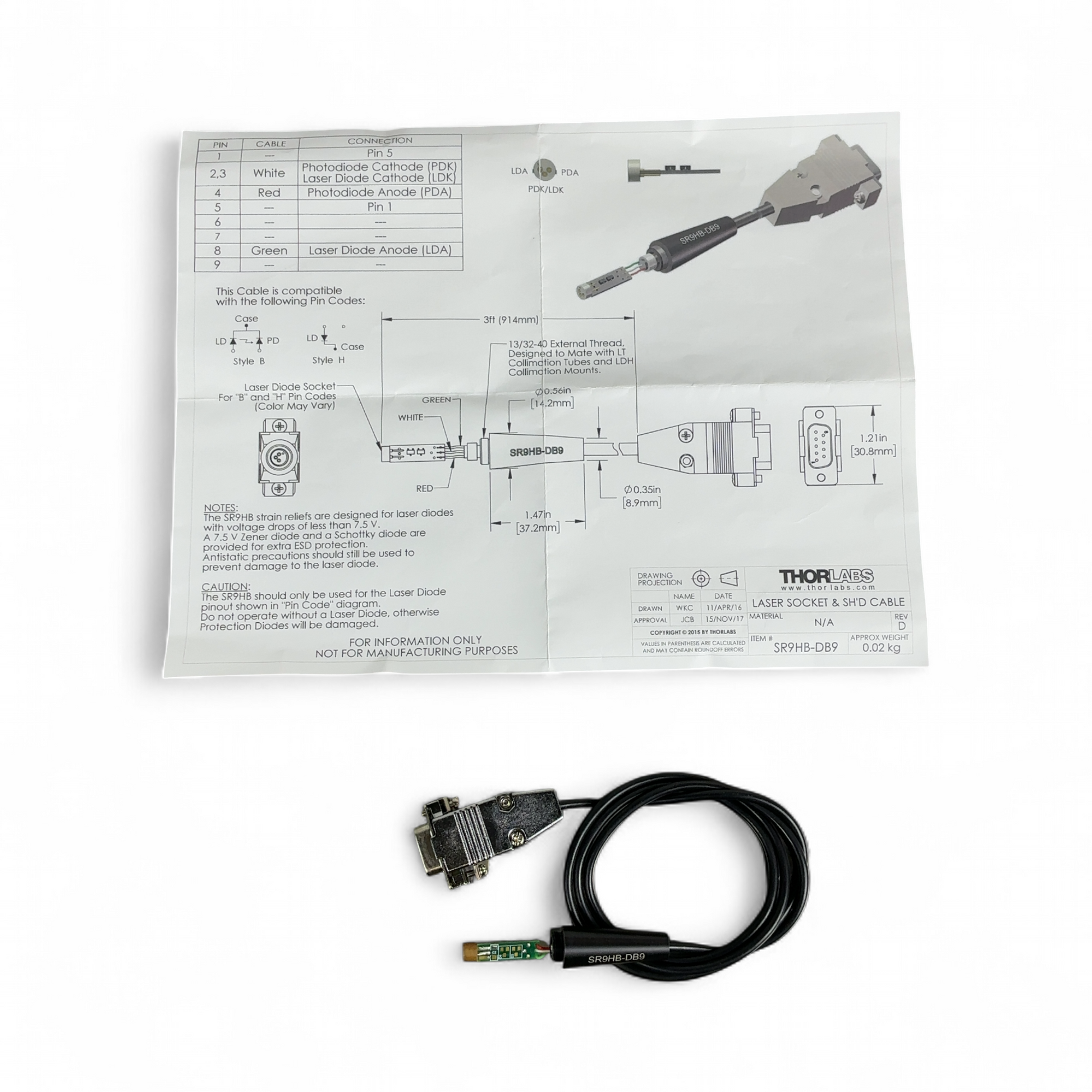

In the box
- Thorlabs SR9HB-DB9 laser socket & SHD cable
