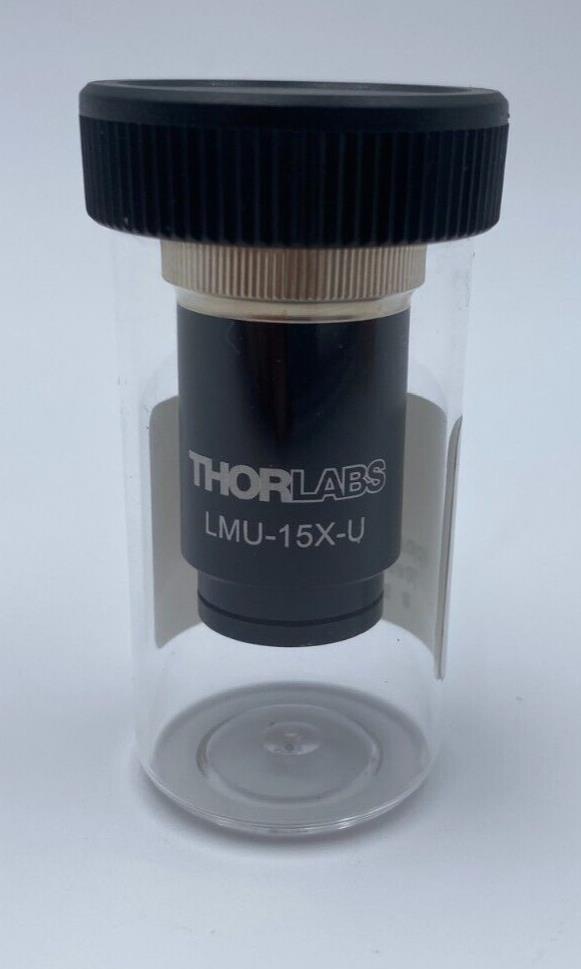

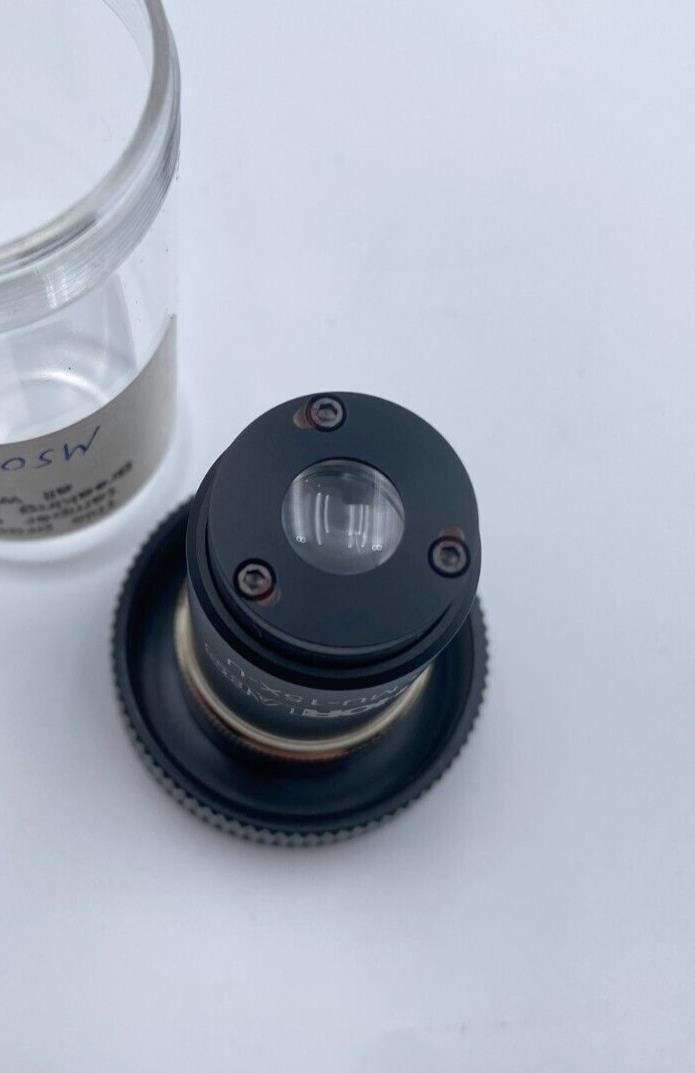

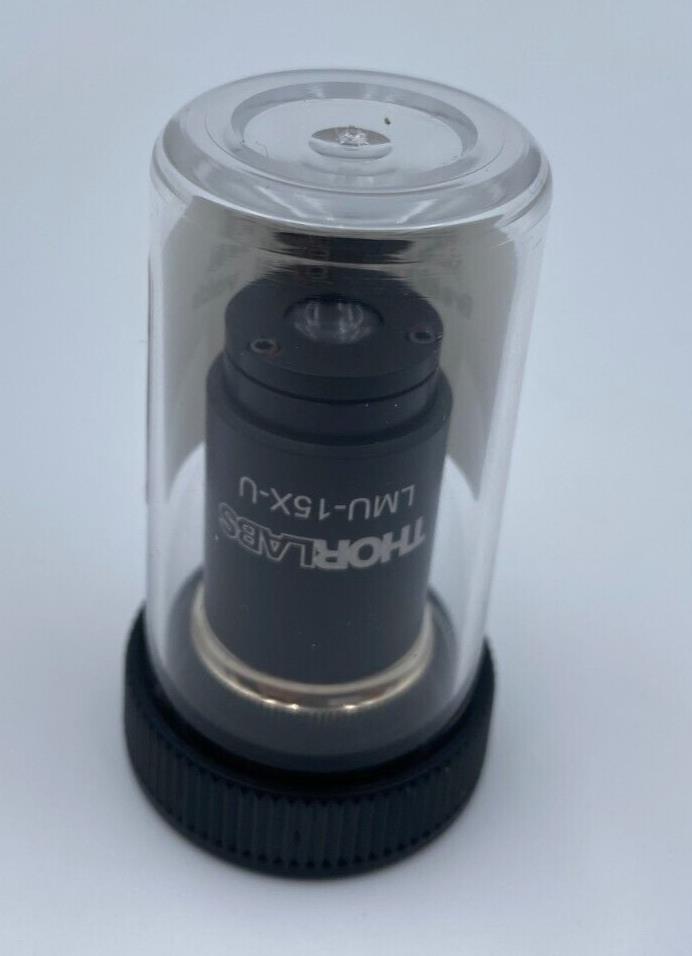

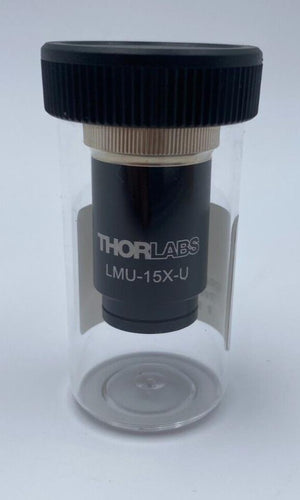

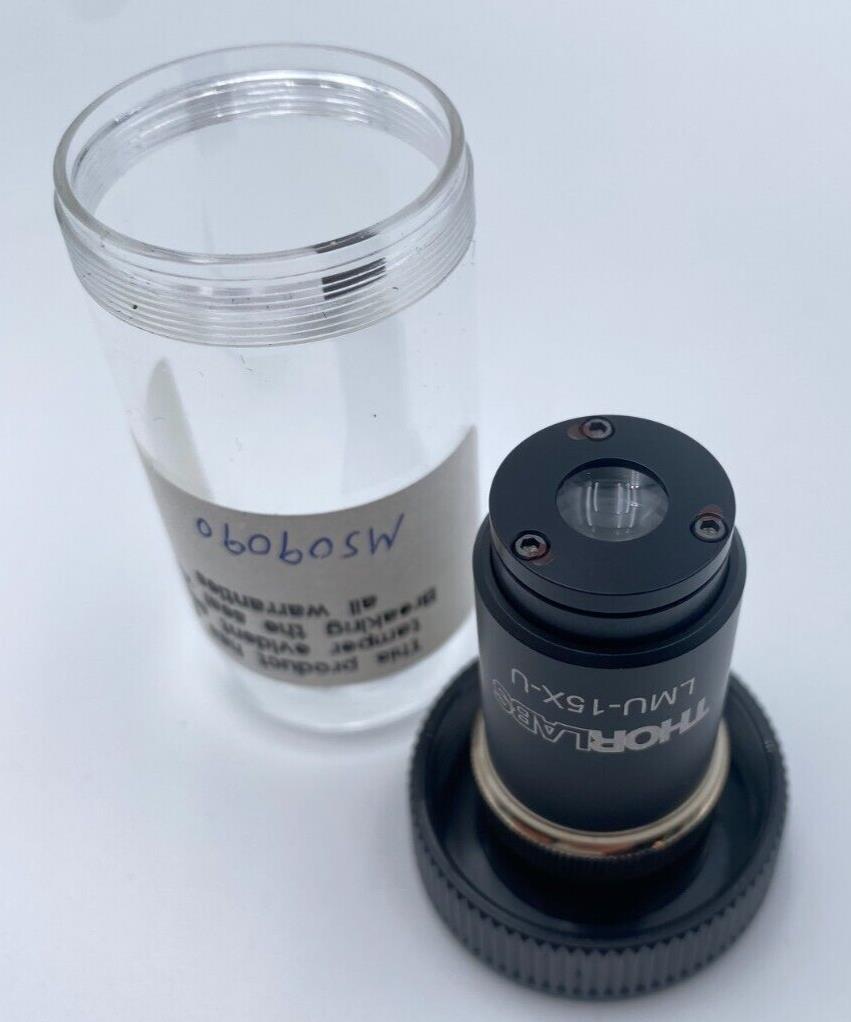

Thorlabs LMU-15X-U MicroSpot Focusing Objective, 15X

Thorlabs LMU-15X-U MicroSpot Focusing Objective, 15X

Overview

Key Specifications:

Magnification:

15X magnification, suitable for high-resolution focusing and imaging.

Wavelength Range:

Optimized for UV wavelengths: 190 nm to 360 nm.

Designed for UV laser systems or imaging applications in the deep and near-UV spectral range.

Numerical Aperture (NA):

0.32 NA, providing a balance between resolution and depth of focus.

Ideal for achieving precise, high-resolution spot sizes in UV applications.

Working Distance:

20.0 mm, offering flexibility in sample positioning and integration into experimental setups.

Beam Spot Size:

Provides a diffraction-limited, tightly focused spot for high-precision UV applications.

Lens Design:

Multi-element lens system with low-aberration design, optimized for the UV spectrum.

High-performance anti-reflection (AR) coatings on all optical surfaces ensure excellent transmission and minimal reflection losses across the UV range.

Mounting and Threading:

Standard RMS threading (0.800"-36) for compatibility with optical mounts and microscopes.

Compact and rugged design for ease of integration into UV optical systems.

Input Power:

Designed for moderate power levels common in UV laser and imaging applications.

Material and Coatings:

UV-grade materials ensure high durability and optical performance under UV light exposure.

Coatings are optimized for high transmission in the 190–360 nm range.

Condition

OPEN BOX ITEM. NO OR VERY LITTLE USE. SOLD AS SHOWN IN PHOTOS.

Included Accessories

NONE

Additional Features

NONE

NO ADDITIONAL ITEMS INCLUDED IF NOT SHOWN OR DESCRIBED. SEE PHOTOS FOR BEST DETAILS.

*We are an equipment re-marketer, and the items we sell oftentimes come from clear-outs and 3rd party labs. We test each piece of equipment to the best of our ability to relay the functionality. Please message us with any specific questions or requests. We're happy to help!

$584.51 $899.25
